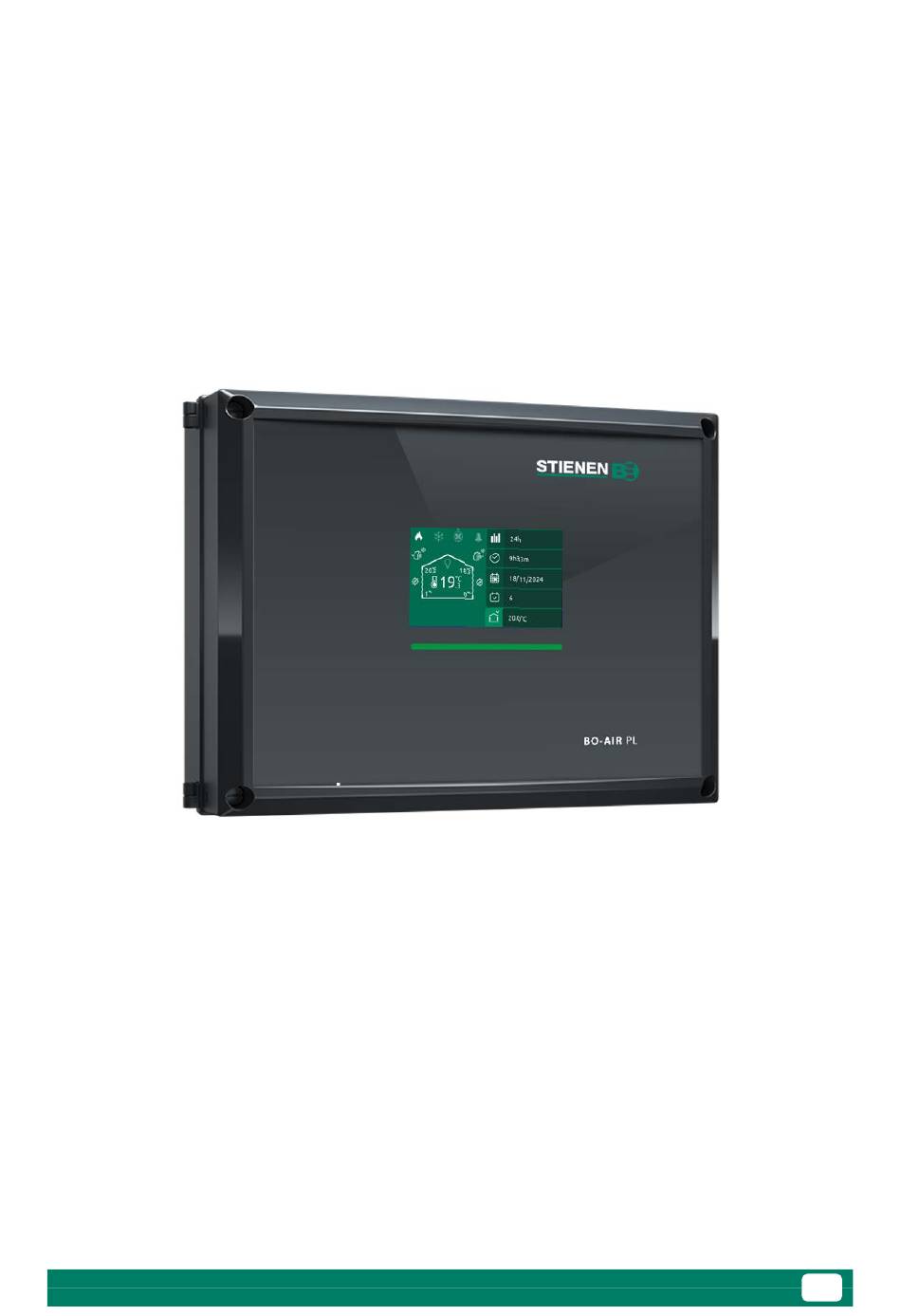

- Page 1 BO-AIR PL CLIMATE CONTROL FOR NATURALLY VENTILATED POULTRY HOUSES USER MANUAL BO-AIR-PL-G-EN02000...
-
Page 2: Table Of Contents
Table of contents and Disclaimer Table of contents About this manual............................ 1 1.1 Symbols and definitions ........................1 1.2 Customer service ..........................1 Safety instructions and warnings ......................2 2.1 Sound, independent alarm system ....................2 2.2 During use ............................2 2.3 Disposal............................ - Page 3 No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use.
-
Page 4: About This Manual
1. About this manual About this manual The manual is intended for the user of this device. It contains all the information necessary for operating and cleaning this product. Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. -
Page 5: Safety Instructions And Warnings
2. Safety instructions and warnings Safety instructions and warnings Read the general safety instructions in this chapter carefully before using the device. A certified installer must install the device and resolve any faults, in accordance with the applicable guidelines. If this product is installed and used in any other way, the warranty will not apply. -
Page 6: Introduction
Recording water consumption (in liter) for the past 4 days (including today). General Logging the following measurements: house temperature, outside temperature, humidity and CO Multiple control modes via LMN bus communication. The BO-AIR PL can be configured in four ways to send and receive additional data: - Standalone controller... -
Page 7: Controls
You enter this offset as a positive value, but it will be subtracted from the setpoint. 4.3 Curtain control The BO-AIR PL can control two curtains (left and right). The curtain control is the main control. A motor controls the curtain position in either feedback mode or time mode. In feedback mode, you can use a potentiometer or a voltage/current signal for feedback. -
Page 8: Tunnel Ventilation Control
4. Controls During feedback calibration, the minimum and maximum feedback positions are found. 10% of this range is used to check if the feedback value is correct. For example, if the minimum feedback is 1.0V and the maximum is 5.0V, the range is 4.0V. 10% of 4.0V is 0.4V, so if the feedback is below 0.6V or above 5.4V, the alarm relay is de-energized (left curtain alarm icon flashes) and the curtain stops moving. -
Page 9: Cooling Control
4. Controls Ventilation begins after a set delay to ensure the curtains are in the correct position. A fixed hysteresis of 0.5°C is maintained between each stage and before the first stage. Once tunneling starts (when at least the first stage temperature is reached), a tunneling switch timer is initiated. - Page 10 4. Controls If only one house is in use, the weather station can be aligned with it, so that 0° corresponds to the front and 180° to the back. However, if two or more houses are in use and not aligned with each other, and they share a single anemometer aligned north-south, an offset is required.
-
Page 11: Outside Temperature Offsets
4. Controls 4.7 Outside temperature offsets In certain situations, it may be necessary to close the curtains more tightly due to cold outside conditions. This is achieved by increasing the bandwidth for curtain control as the outside temperature drops. Temperature setpoint for the curtain 20.0°C Current room temperature 21.0°C... -
Page 12: Water Consumption Registration
4. Controls 4.10 Water consumption registration The water consumption function monitors the water usage over the last 3 days (including today). It utilizes a counter input along with a factor that represents the amount of water flowing with each pulse. Every day at midnight, the days are shifted (yesterday becomes the day before yesterday, and today becomes yesterday), and the counter for today is reset. -
Page 13: Operation
Fig. 1: BO-AIR PL screen lay-out Alarm bell icon. The colour indicates the alarm situation: No alarm active (icon colour is grey). An alarm is active (icon colour is red). Alarm is silenced, but not yet resolved (icon colour is orange). -
Page 14: Changing Settings
5. Operation Additional features, depending on installer settings: Wind direction. Indicates if wind is coming from the left, right, or in the neutral zone; Wind Speed. Displays the measured wind speed. Rain Detection. Highlights the rain cloud if rain is detected. ... -
Page 15: Display Mode: Controller Enabled/Disabled
5. Operation 5.3 Display mode: Controller enabled/disabled The Bo-Air Touch controller can be enabled or disabled as needed. Use the slider to switch between enabled and disabled modes. If the controller is disabled: Sensor readings remain active. The temperature sensor defect alarm remains active. ... -
Page 16: User Menu Settings
6. User menu settings User menu settings 6.1 Home screen Fig. 5: Home screen This chapter covers all settings visible in the user menu, which can be accessed directly from the home screen. De zichtbaarheid van verschillende functies is afhankelijk van hoe de regelaar is geconfigureerd: Primary, Secondary, Follower of Standalone. -
Page 17: Day Count
6. User menu settings 6.5 Day count Function ID: 4 Input range: 0 - 999 Default: 0 This feature displays the current animal day count and selects relevant values from the ventilation curve. The following items can be set in the ventilation curve: ... -
Page 18: Minimum Curtain Position
6. User menu settings 6.8 Minimum curtain position Function ID: Input range: 0 – 100% Default: 5 Here you can set the desired minimum position of the left and right curtains. In Curve mode, this function will display the calculated value. 6.9 Maximum curtain position Function ID: 8 Input range: 0 –... -
Page 19: Cooling Offset
6. User menu settings 6.13 Cooling offset Function ID: 12 Input range: 0°C – 10.0°C / 32.0°F – 50.0°F Default: 5.0 Here, you can set the desired temperature offset relative to the tunnel temperature setpoint when tunnel ventilation is enabled. If tunnel ventilation is not enabled, the offset is relative to the curtain temperature setpoint. -
Page 20: Humidity Level Setpoint
6. User menu settings 6.17 Humidity level setpoint Function ID: 16 Input range: 0 – 100% Default: 70 Here, you can enter the desired humidity level for humidity control. When the humidity reaches this level, the system starts increasing ventilation to reduce the humidity. This icon is displayed only when humidity control is activated from the installer menu. -
Page 21: Actual Co Level
6. User menu settings 6.21 Actual CO level Function ID: 20 Readout of the actual CO level. This icon is displayed only when CO control is activated from the installer menu. 6.22 Maximum CO alarm level Function ID: 21 Input range: 100 – 10000 ppm Default: 3000 Here you can set the maximum CO level. -
Page 22: Manual Mode For Left Curtain
6. User menu settings 6.25 Manual mode for left curtain Function ID: 24 Here, you can manually activate the control for the left curtain. If enabled, the curtain will automatically adjust to the specified position. An advantage of using this software's manual control over the physical manual control knob on the cabinet's side is that the position is retained even if time-based control is active! The option is available if the controller is not a follower. -
Page 23: Controller Enabled / Disabled
6. User menu settings 6.29 Controller enabled / disabled Function ID: 28 When the controller is enabled, the background color remains default, indicating that all functionalities are active. However, if the controller is disabled, the background color switches to orange. In the disabled mode: ... -
Page 24: Curve Mode
7. Curve mode Curve mode 7.1 General The curves menu pop-up window shows the ventilation curve settings. Curve mode is enabled in the installer menu. In the user menu, tap the Curve menu item. The curve supports eight breakpoints. At each breakpoint, the temperature setpoint, minimum curtain position, and maximum curtain position can be adjusted to meet the needs of the animals at a specific age (day). -
Page 25: Curve Day
7. Curve mode 7.2 Curve Day Input range: 0 - 999 Select the curve day for the following values. 7.3 Temperature setpoint Input range: 0.0°C - 50.0°C / 32.0°F - 122.0°F Enter the temperature setpoint for the specified curve day in the corresponding row. 7.4 Minimum curtain position Input range: 0 –... -
Page 26: Alarm Overview
If the alarm persists, the alarm bell icon will turn orange, indicating that the alarm has been muted. However, if the BO-AIR PL detects that the alarm hasn't been resolved properly within 5 minutes or if a new alarm arises, the display will revert to showing the active alarm bell... - Page 27 The operation of the right curtain is similar to that of the left curtain. LMN communication alarm: If the controller is configured to receive data from another BO-AIR PL but fails to receive it, an alarm is triggered on the receiving controller. The reason could be hardware-related, but it's also possible that a faulty configuration (e.g., no BO-AIR PL configured to send data)
