Panasonic MS-CX-11 Instruction Manual

INSTRUCTION
MANUAL
Sensor Mounting Bracket
MS-CX-11
MJE-MSCX11 No.0098-92V
Thank you very much for purchasing Panasonic
products. Read this Instruction Manual carefully and
thoroughly for the correct and optimum use of this
product. Kindly keep this manual in a convenient
place for quick reference.

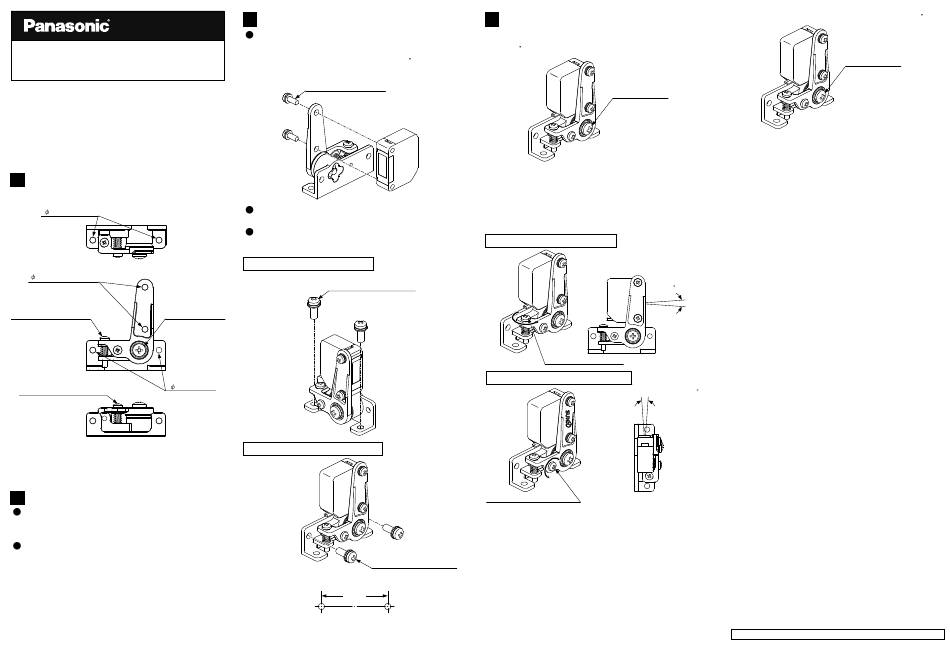

1 PART DESCRIPTION
Mounting holes on
the bottom surface
( 3.5mm)
Sensor mounting holes
( 3.5mm)
Angle fixing screw
Vertical adjustment screw
[M3 (length 16mm)] [M4 (length 16mm)]
Mounting holes
on the side
Horizontal adjustment screw
( 3.5mm)
[M3 (length 16mm)]
Material: Zinc die-cast
Weight: 45g approx.
Accessories: Screws with washers for sensor mounting
[M3 (length 14mm)]: 2 pieces
2 CAUTION
Make sure that when this product is used in
places where vibration is much applied, it may
cause misalignment.
Make sure that when shock is applied to this
product, it may cause misalignment. If the beam
axis is misaligned, align the beam axis again.
3 MOUNTING
Use attached M3 (length 14mm) screws with
washers for mounting the sensor on this product.
The tightening torque should be 0.5N m or less.
M3 (length 14mm) screws
with washers (Accessory)
This product accommodates vertical mounting
and horizontal mounting.
When mounting this product to the surface, use
M3 screws (please arrange separately).
In case of vertical mounting
M3 screws
(Please arrange separately.)
In case of horizontal mounting
M3 screws
(Please arrange separately.)
<Mounting hole dimensions (Common)>
40mm
4 BEAM AXIS ALIGNMENT
1. Tighten the angle fixing screw temporarily at 0.2 to
0.3N m.
Angle fixing screw
Note: If the angle fixing screw is not temporalily tightend, it
may cause misalignment.
2. Align the beam axis by tightening the vertical
adjustment screw and the horizontal adjustment
screw.
Vertical beam axis alignment
Vertical adjustment
range: 4
Vertical adjustment screw
Horizontal beam axis alignment
Horizontal adjustment range: 4
Horizontal adjustment screw
Note: Do not tighten too much until the end of the adjustment
screw touches the mounting surface.
3. Tighten the angle fixing screw at 0.8 to 1.2N m.
Angle fixing screw
Note: When the angle fixing screw is tightend, the beam
axis may misalign. If the beam axis is misaligned,
return to the procedure 1 and align the beam axis
again.
