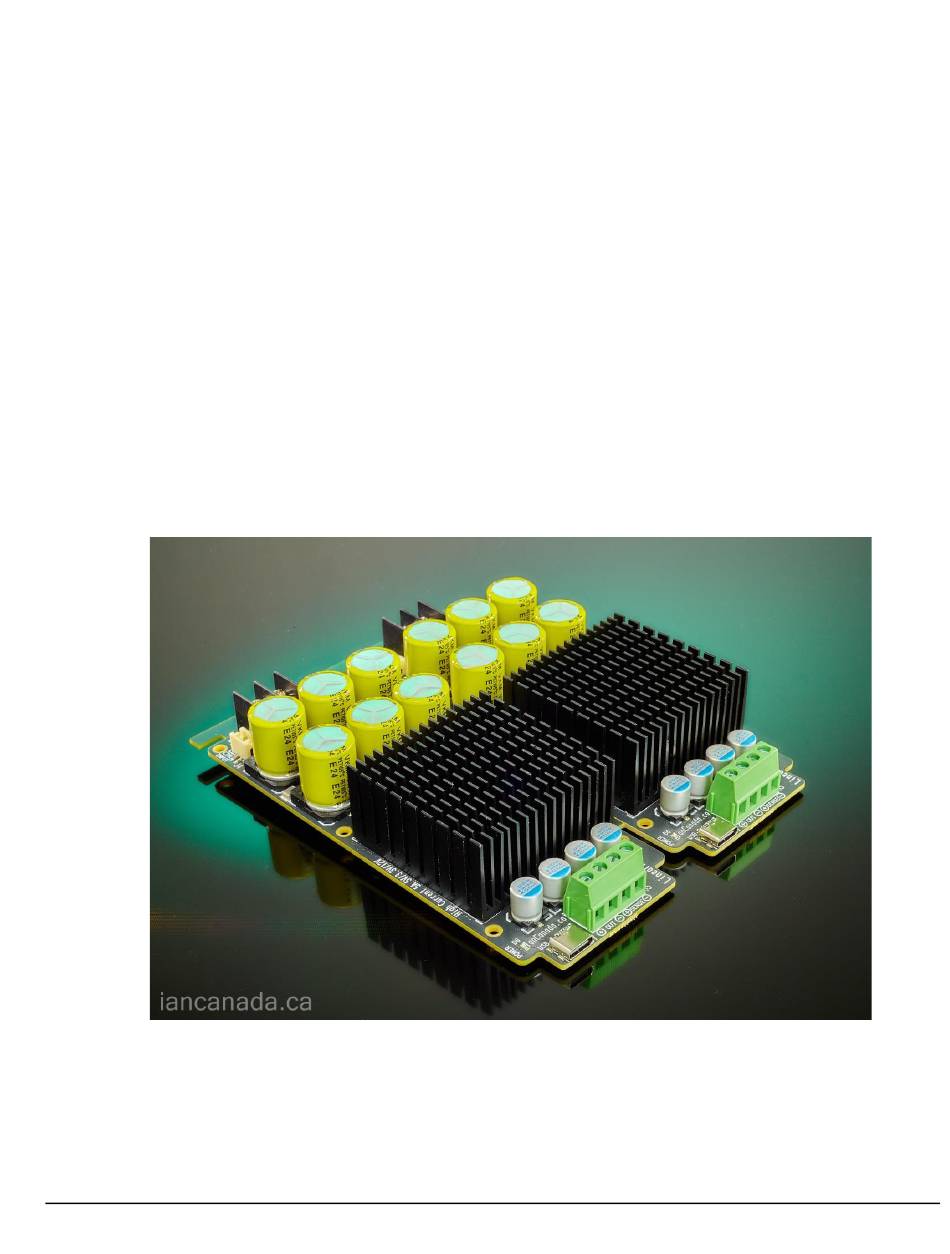

- Page 1 LinearPi Pro Ultra-low noise high current linear power supply IanCanada Ver. 1.0 Page 1 IanCanada.ca...
- Page 2 Multiple LinearPi Pros can be grouped into a big power supply system. LinearPi Pro can also be upgraded to an 5V/3.3V ultra capacitor power supply by integrating with UcConditioner/Pro.
- Page 3 D. PCB Layout (Please download DXF files for the Dimensions) LinearPi Pro Solo LinearPi Pro Dual or +/- 5V or 5V+3.3V Page 3 IanCanada.ca...
-
Page 4: Order Information
E. Order information 1. #38A LinearPi Pro Dual (default 5V, settable for 3.3V or 12V) 2. #38B LinearPi Pro Solo (default 5V, settable for 3.3V or 12V) 3. #38C LinearPi Pro Dual 5V + 3.3V 4. #38D LinearPi Pro Dual +/- 12V F. - Page 5 J4: Slave ON/OFF control input in 2-pin PH2.0, isolated LinearPi Pro can be controlled remotely by this slave control input. LinearPi Pro will be turned on when a 3V-12V control voltage is applied to this input. The control signal is non-polarity and optical isolated from LinearPi Pro.
-
Page 6: Led Indicators
LED indicators D3: Power input indicator. Indicating that the power input is applied when lit. D6: Power on indicator. Indicating that the LinearPi Pro is turned on and output voltage is applied to J5 when lit. J. Fuse The fuse is a standard 5*20mm fast-action glass fuse. The default fuse is Littelfuse 0235005.MXP The fuse can be sourced here (#60B): https://iancanada.ca/products/fuses?variant=47645175447852... -
Page 7: Application Notes
K. Load transient response measurement of a LinearPi Pro LinearPi Pro has a really great load transient response performance. The output voltage drop is only 10mV at ultra-low noise level when output current changes over very big steps between 1A to 5A. The measured dynamic output impedance is only 2.5mOhm (@1kHz), which could be the best performance among all the... - Page 8 Mount a UcConditioner Pro (same voltage) on top of the LinearPi Pro by the 35mm LinearPi Pro screw/standoff sets (sold separately). b. Connect V+ and V- of the LinearPi Pro output J5 to the + and – of input J2 of the UcConditioner Pro through big power wires, 18 AWG or bigger.
- Page 9 3. Recommend the continuous AC input mode Though we can use AC power to turn on and turn off the LinearPi Pro (ON/OFF switch S1 has to be at ON position), for the best possible sound quality, it’s highly recommended to use the continuous AC input mode by keeping the AC input continuously powered while using the ON/OFF control switch/logic to turn on or turn off the LinearPi Pro.
- Page 10 2. LinearPi Pro Dual, or LinearPi Pro 5V +3.3V, or LinearPi +/- 15V 3. As a great linear low-noise power supply for RaspberryPi 5 Page 10 IanCanada.ca...
- Page 11 N. History of revising © 2024 IanCanada. The firmware code embedded in the LinearPi Pro is the property of Ian Jin. You are granted a non-exclusive, non-transferable, non-sublicenseable, royalty-free right to use the LinearPi Pro solely for your own, non-commercial purposes.
