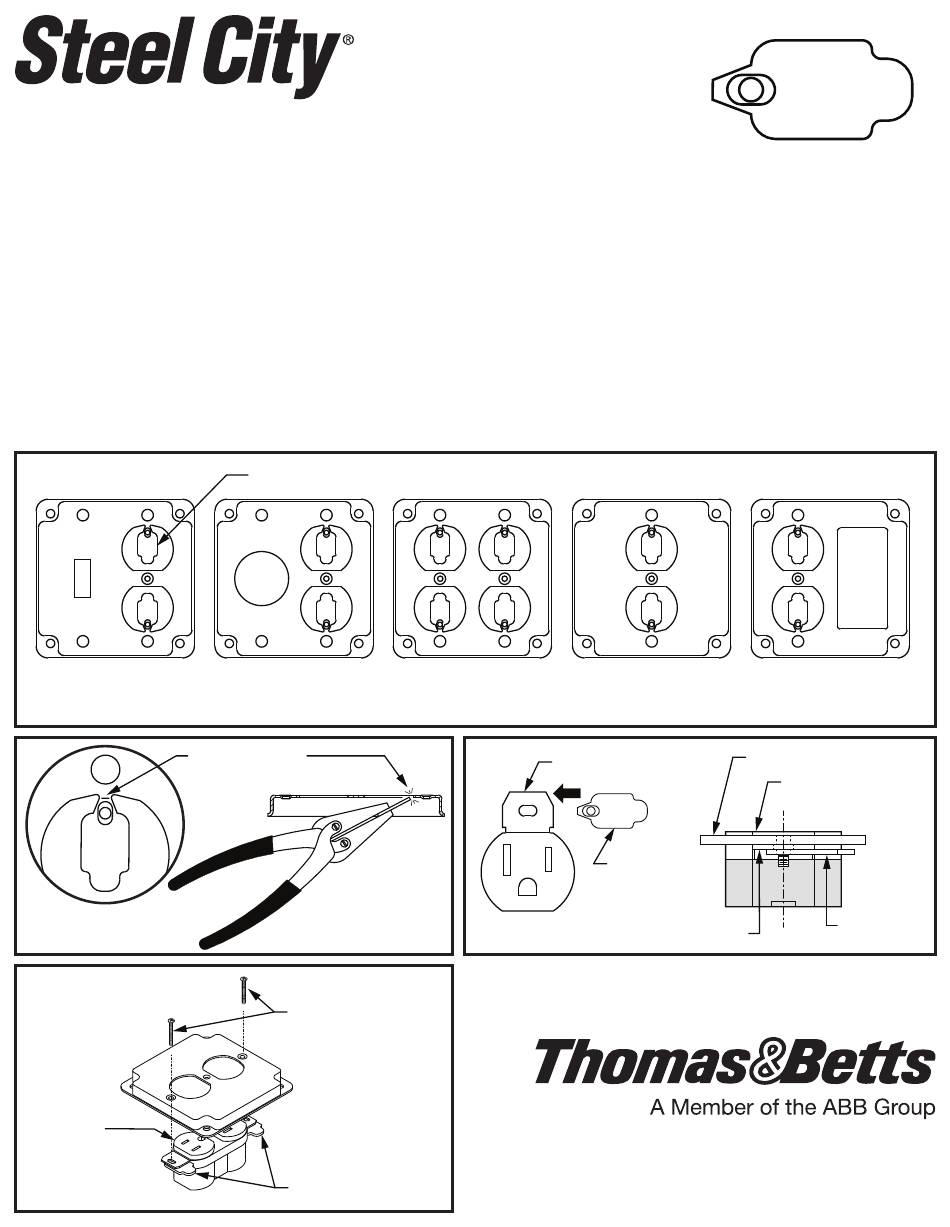

ABB Thomas&Betts Steel City RS 2 Instruction Sheet

for Installing Duplex Devices to 4" Square Raised Surface Covers
Catalog Numbers: RS 2, RS 3, RS 8, RS 12, & RS 19 CC
INSTRUCTIONS:
1. The Nuts are located in the Duplex
Receptacle holes on the Raised
Surface Covers (see Figure 1).
2. Use a plier to break the Nuts from the
cover at score mark (see Figure 2).
RS 2
Figure 1
Score Mark
(break)
Figure 2
Duplex
Receptacle
Figure 4
INSTRUCTION SHEET
NUT (TYP.)
RS 3
#6-32 screws
supplied with
the receptacle
Nuts
3. Orient the Nuts as shown in Figure 3
and mount the Nuts and the Duplex
Receptacle to the Cover using the
#6-32 screws supplied with the Duplex
Receptacle (see Figure 3 & 4). Tighten
screws securely.
RS 8 RS 12
Strap
Orient
Nut
Receptacle Strap
Figure 3
RS 19 CC
Top of Cover
Top of Duplex
Receptacle
Nut
C L
TA01413 E Page 1 of 2
