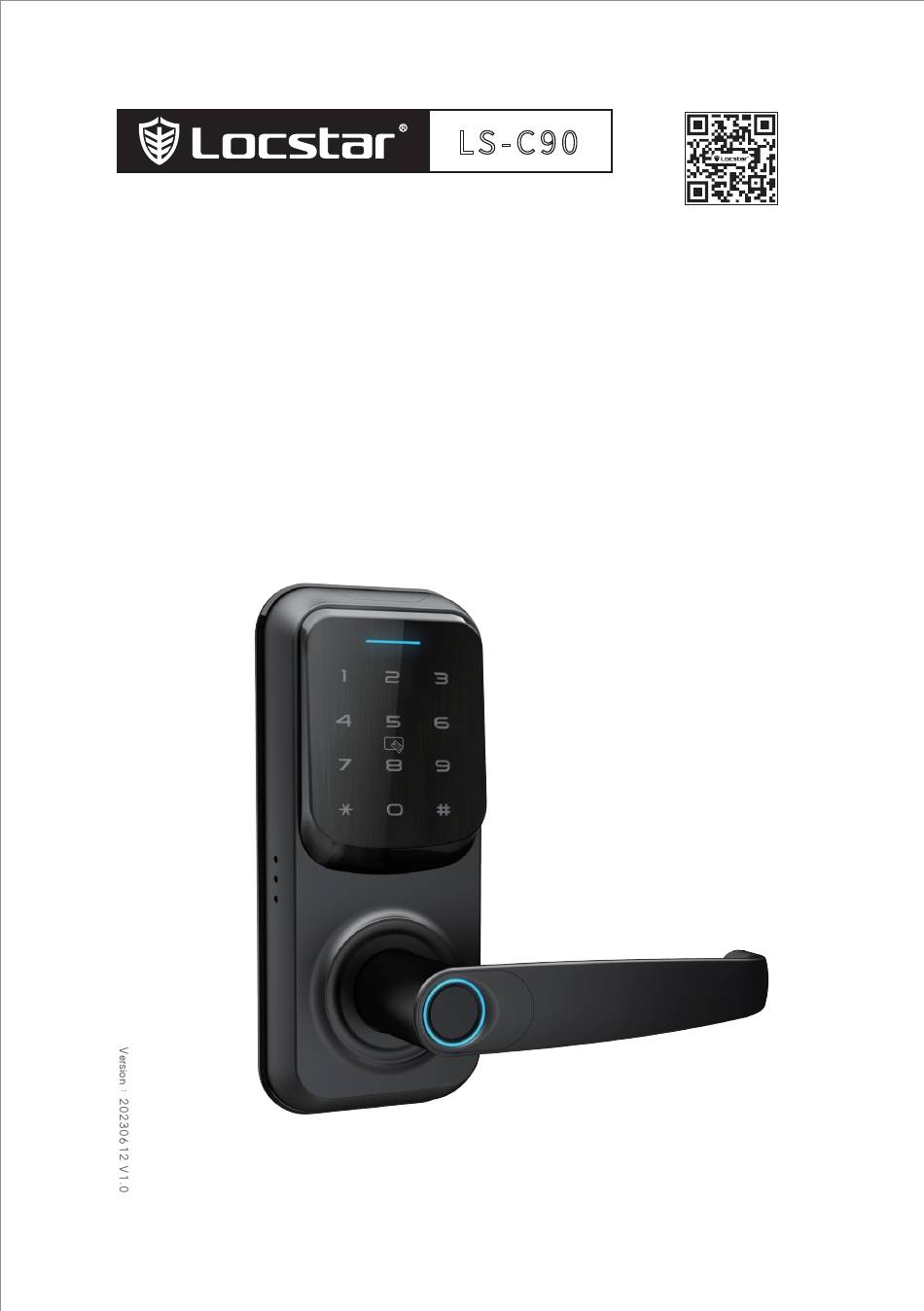

- Page 1 L S - C 9 0 Smart Lock User Manual www.locstar.com 400-8833-566 [TTlock Version] SHENZHEN LOCSTAR TECHNOLOGY CO.,LTD Reserves the right to interpret this manual...
-
Page 2: Product Parameters
(accessories in kind prevail, pictures are for reference only) L S - C 9 0 Smart Lock User Manual www.locstar.com [TTlock Version] 400-8833-566 5.Door gusset plate SHENZHEN LOCSTAR TECHNOLOGY CO.,LTD Reserves the right to interpret this manual 1.front panel 2.Back panel 3.opening size diagram 4.User Manual 6.Tapping screw 7.lock mortise... - Page 3 Ⅱ、 Installation Guide 1、 installation conditions 1.1、 Door thickness Door lock border ≥110 mm (thickness of inconsistent doors) 45mm≤door thickness ≤120mm( custom accessories are required when size exceeded) 1.2、 Opening direction indoor indoor indoor indoor wall wall door Left outside Right outside door Left inside...
-
Page 4: Installation
4、 Installation 9 .Rear base plate setting screws 1. Front panel 5. Square shaft 10 .Rear panel 2 .Mechanical key hole 6 .Lock Mortise fixing screws 11. AAA battery 3. Key hole cover 7. Lock Mortise 12. Battery cover 4. Type-C interface 8 .Back bottom plate 13 .Rear panel fixing screws 5、... -
Page 5: Installation Steps
6、 Installation steps Ø60 I. Open mortise hole II、 Install the lock mortise 1. Draw a horizontal center line on the inside/outside 1. Insert the lock mortise into the opened door side of the door 1 meter from the ground. hole. - Page 6 Ⅴ. Rear panel installation Ⅵ. Battery Installation Fit the rear panel to the rear bottom plate. At the Install the 4 AA batteries into the battery box and same time, use two screws to fix and lock the rear install battery cover. bottom plate and the rear panel.
-
Page 7: Restore Factory Settings
Ⅲ、Function and Operation 1、 Restore factory settings 3.6.1.Press and hold the reset and clear button on the 10s rear panel, the door lock will return to the factory default, and the voice and light will be restored successfully. Reset button 3.6.2.The factory default password is 123456, all fingerprint password card registration are cleared, and the operation record remains... -
Page 23: Warranty Card
Warranty Card 1. The manual and warranty card are included in the factory default packaging for each product. After installation, please fill in the warranty card and keep it properly as the warranty certificate. 2. Full grantee: 1 year 3. The following are not covered by the warranty: A.
