Summary of Contents for Panasonic RX-D70BT

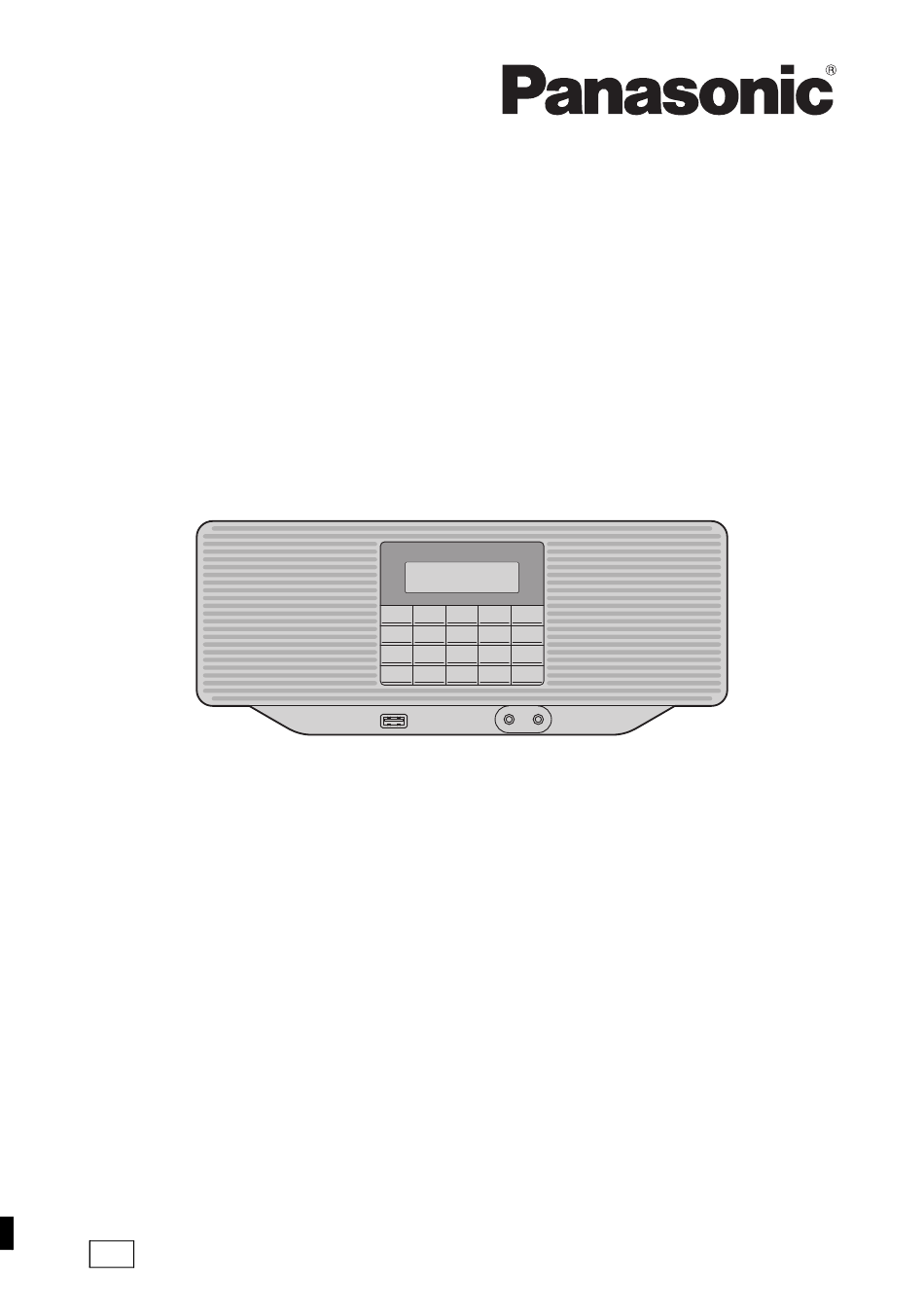

- Page 1 Operating Instructions Portable Stereo CD System Model No. RX-D70BT Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use. TQBJ2201-2...
-
Page 2: Safety Precautions
Safety precautions WARNING CAUTION Unit Unit ≥ To reduce the risk of fire, electric shock or product damage, ≥ This unit utilizes a laser. Use of controls or adjustments or – Do not expose this unit to rain, moisture, dripping or performance of procedures other than those specified splashing. -
Page 3: Table Of Contents
Accessories About descriptions in these operating instructions ≥ Pages to be referred to are indicated as “l ±±”. Check the supplied accessories before using this unit. ∏ 1 AC mains lead Table of contents Safety precautions ..........2 Accessories ............3 ≥ Do not use AC mains lead with other equipment. Control reference guide ........4 Power sources ...........6 Unit on/standby ..........7... -
Page 4: Control Reference Guide
Control reference guide Top view Front view TQBJ2201... - Page 5 Standby/on switch (Í/I) USB port (l 7) Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a Headphones jack ( small amount of power. Plug type: ‰ 3.5 mm stereo (not supplied) Excessive sound pressure from earphones and Operates sleep timer headphones can cause hearing loss.
-
Page 6: Power Sources
Power sources Using the household mains socket Connect the AC mains lead firmly to the unit and the household mains socket. To household mains socket Inner Outer R20/LR20, D ≥ Do not use any other AC mains lead except the supplied Insert batteries in numbered order. -
Page 7: Unit On/Standby
Unit on/standby Press [Í/I] to switch on the unit. ≥ When removing a CD, be sure a CD is stopped. ≥ The first time you switch on the unit, it will enter CD mode. From next time on, it starts up with the last played audio source. -
Page 8: Bluetooth ® Operations
≥ If “Pairing” is indicated on the display, go to step 5. Press [PLAY MENU]. Press [:, 9] to select “Pairing?” and then press [1/;]. Press [:, 9] to select “Yes” and then press [1/;]. Select “RX-D70BT” from the Bluetooth device’s ® Bluetooth menu. ®... -
Page 9: About Bluetooth
About Bluetooth Media playback controls ® The following marks indicate the availability of the Panasonic bears no responsibility for data and/ feature. or information that is compromised during a wireless transmission. CD audio in CD-DA format or a CD that... - Page 10 Basic controls Playback modes ( [CD] [USB] Stop Press [∫]. Select the playback mode. ≥ [CD], [USB]: The position is memorised and “Resume” is displayed. (The Press [PLAY MENU]. position will be retained even if you switch the unit to standby or change the audio source.) Press [:, 9] to select “Play Mode”...
- Page 11 Programme play ( Cancel 1 Press [∫] to stop playback, and [CD], [USB] programme then press [PLAY MENU]. This function allows you to programme up to 25 mode 2 Press [:, 9] to select tracks. “Play Mode” and then press [1/;].
-
Page 12: Listening To Dab/Dab
Listening to DAB/DAB+ ≥ The station occupying a channel is erased if another Preparation station is preset in that channel. ≥ Extend the antenna. (l 5) ≥ Turn the unit on. Listening to preset DAB/DAB+ ≥ Press [DAB/FM] repeatedly to select “DAB”. stations Memorising stations Press the numeric buttons or [PRESET j, i] to... -
Page 13: Listening To Fm Radio
Listening to FM radio Viewing available information Preparation This unit can show the text data transmitted by the ≥ Extend the antenna. (l 5) radio data system (RDS) available in some areas, ≥ Turn the unit on. such as radio text, programme service, programme ≥... -
Page 14: External Music Device
External music device Sound adjustment You can play music from an external music device. The following sound effects can be added to the audio output. Preparation ≥ Switch off the equaliser (if any) of the external Bass music device to prevent sound distortion. ≥... -
Page 15: Clock And Timer
Clock and Timer Press [:, 9] to select “On” and then press [1/;]. Setting the clock To turn the timer off, select “Off”. This is a 24-hour clock. Press [:, 9] to select the setting and then The date and time are updated automatically if the information are included in the DAB/DAB+ broadcast. -
Page 16: Others
Others Auto power off function Dimmer As a factory default, this unit will turn to standby mode automatically if there is no sound and it is not This dims the backlight. being used for approximately 20 minutes. Press [MENU]. To cancel this function Press [:, 9] to select “Dimmer”... -
Page 17: Troubleshooting
Troubleshooting Disc Before requesting service, make the following Incorrect display or play does not start. checks. If you are uncertain about some of the check points, or if the solutions indicated in the following ≥ Make sure that the disc is compatible with this unit. (l 19) guide does not resolve the issue, then consult your ≥... - Page 18 ≥ For some built-in Bluetooth devices, you have to set the ® “No Device” audio output to “RX-D70BT” manually. Read the operating ≥ The USB device is not inserted correctly. Read the instructions of the device for details. instructions and try again (l 7).
-
Page 19: Unit And Media Care
Unit and media care Playable media Pull out the AC mains lead from the outlet before Compatible CD maintenance. ≥ A disc with the CD Logo. ∫ Clean this unit with a soft, dry cloth ≥ When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a dry cloth. -
Page 20: Specifications
Specifications ∫ SPEAKER SECTION Speaker unit(s) ∫ GENERAL Full Range 8 cm cone typek2 Power consumption 14 W ∫ TERMINAL SECTION Power consumption in standby mode USB Port Approx. 0.9 W USB Port power DC OUT 5 V 500 mA Power supply USB Standard USB 2.0 full speed... -
Page 21: License
® SUOMI trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Holdings Corporation is under license. Other trademarks and trade names are those of their VAROITUS respective owners. Laite ≥... - Page 22 Slovensko Δήλωση συμμόρφωσης (DoC) Izjava o skladnosti (DoC) Η “Panasonic Entertainment & Communication Co., Ltd.” δηλώνει “Panasonic Entertainment & Communication Co., Ltd.” v tem ότι το προϊόν αυτό είναι συμμορφωμένο προς τις βασικές dokumentu izjavlja, da je izdelek v skladu z bistvenimi zahtevami απαιτήσεις...
- Page 23 2402-2480 MHz 9,6 dBm ® Magyar Megfelelőségi Nyilatkozat (DoC) Ezennel a, “Panasonic Entertainment & Communication Co., Ltd.” Latviski kijelenti, hogy a jelen termék kielégíti az 2014/53/EU Irányelv Atbilstības deklarācija (DoC) létfontosságú követelményeit és más vonatkozó rendelkezéseit. Ar šo “Panasonic Entertainment & Communication Co., Ltd.”...
- Page 24 1-10-12 Yagumo-higashi-machi, Moriguchi City, Osaka 570-0021, Japan Authorized Representative in Europe: Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany Panasonic Entertainment & Communication Co., Ltd. Web Site: https://www.panasonic.com TQBJ2201-2 F0419YM2052 C Panasonic Entertainment & Communication Co., Ltd. 2019-2022...
