MXM7000 INTL
QUICK START GUIDE

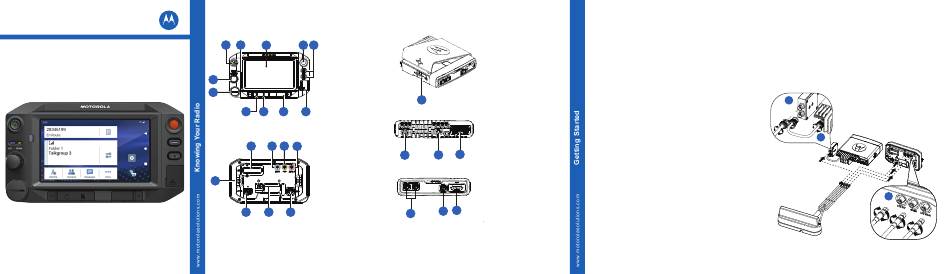

1 Power Button and
Screen Lock/Unlock
2
TETRA and LTE
LEDs
1 2 3 4 5
3 TouchScreen
Display
4 Emergency Button
5 Programmable
11
Buttons
10
6 RJ45 Connector
7
USB-A Port
9 8 7 6
8 Micro SD Card Slot
9 LTE SIM Card Slot
10 GCAI MMP Dust
Cover
12 13 14
15
11 Rotary Knob
12
Dust Cover
13 LTE Div
19
14 GNSS
15 LTE Main
16 RJ50 Connector
18 17 16
17 RAM Ball Mounting
18 12 V Power
Connector
19
Trunnion Mounting
Point
20 Internal TETRA SIM
Card Slot
20
21 TETRA UHF Connector C
22 12 V Power Connector
23 26-Pin Accessory
Connector
24 RJ50 Connector (for
Control Head)
25 RJ50 Connector (for
23
21 22
External TETRA SIM
Reader)
26
RS232 (9 SubD)
25 26
24
Looking After Your Radio
Never leave your control head in extreme temperatures (over +85
°C), such as behind a windscreen in direct sunlight.
The control head is protected against dust and water sprays
(compliant with the IP54 rating).
To clean your radio, use a moistened or antistatic cloth.
Ensure the gore port membrane on the back of the control head,
labeled VENT, is kept clean.
Attaching the Antenna
1. Connect the LTE Main, LTE DIV, and GNSS cables of the external
antenna to the control head. Turn the connector sleeve on each
cable to lock the cables to the control head.
2. Connect the TETRA cable of the external antenna to the Low Pass
Filter (LPF) connector A or B.
3. Connect a coaxial cable from LPF connector A or B to the
transceiver TETRA UHF Connector C.
4. Turn the connector head of the cable to lock the cable to the LPF
and transceiver.
2
Connector A
Connector B
TETRA UHF
Connector C
3
1
