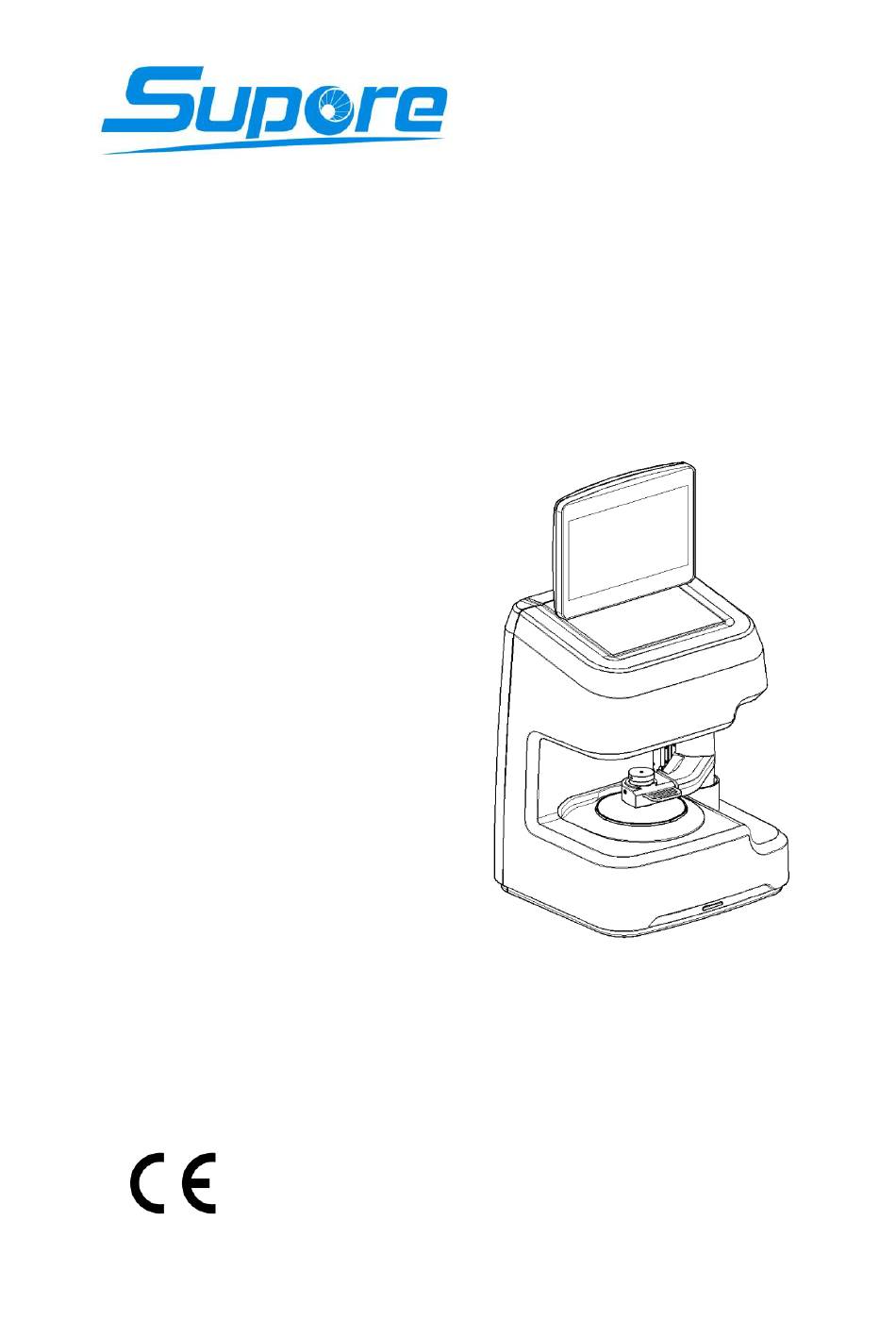

- Page 1 AUTO LENS SCANNER ST-1200PLUS OPERATION MANUAL SHANGHAI SUPORE INSTRUMENTS CO., LTD. Http://www.supore.com REV.20180703...
-
Page 2: Preface
Dear Customer: Thank you for choosing our products and trust in our company. ST-1200PLUS auto lens scanner is a device designed specifically for the glasses store, lens template scanning contour, contour data modification, profile data of power down storage, optical instrument center. - Page 3 2. The use of environmental products(please try to avoid using the machine in the following hazardous conditions) A. Outside the specified temperature range B. Fiercely vibration C.The sun (ST-1200PLUS belongs to the optical instrument, please selectthe darkroom) D. Dust/Smoke E.Moist 3. Note the use of products A.
- Page 4 or electric shock; E. Do not scratch, damage, change the power cable in the power line, don’t put too much weight, pulling, bending power cable, this may cause a fire or electric shock; F. Prohibit unauthorized disassembly, repair, modification machine, pressure machine, heating part or sharp objects will make people injured.
-
Page 5: Table Of Contents
Contents Preface ........................1 Product Instruction ....................1 Security information ..................... 1 1 Instruction of machine..................5 1.1 Main parts（Indicate the name of major external components and graphic） ..........................5 Use ........................ 6 2.1 Install ....................... 6 2.1.1 Instrument installation ................6 2.2 Instrumenttation .................... -
Page 6: Instruction Of Machine
1 Instruction of machine Main parts （ Indicate the name of major external components and graphic） (10) (7) (8) Graphic illustration： (1) Display（touch screen) (2) Suction cup holder (3) Lens carrier (4) The rotary shaft of center meter (5) Ground lead (6) USB rim(reserve) (7) Communication port1（COM1）... -
Page 7: Use
2.1 Install 2.1.1 Instrument installation Illustration： A. Choose a fixed, rigid platform level, should ensure that the platform is fixed, strong; B. One end of a communication line to connect the scanner, the other end is connected with the grinding machine; C. -
Page 8: Instrumenttation
2.2 Instrumenttation 2.2.1 Main interface Menu Data modification Center meter Machining lens minimum diameter Symmetry Scanning template Right Left Bridge Data half-pupillary half-pupillary Download2 distance distance ight Data Left pupillary height pupillary height download1 Chart 2-3 2.2.2 Scanning lens template A. - Page 9 appear after, press F. The input frame from the nose, as shown in Fig.2-5; G. Complete the nose is set, click on the interface to set the pupil distance and pupil high figure as shown in Fig. 2-6,2-7. 1. The template of convex concave upward downward.
- Page 10 Fig. 2-5 Bridge input Half-PD input Fig. 2-6...
- Page 11 Fig. 2-7 input...
-
Page 12: Template Date Modification (Special Lens)
2.2.3 Template date modification (special lens) A. Click on the main interface button ,enter into data modification interface; Memory data Angle rotation Memory data search Template data save Width Angle modification rotation Height Half-height modification modification Width and Height modification Caution: The modification is completed, need to reset the interpupillary distance(PD), (HD), nose high pupil... -
Page 13: Fix Center
2.2.4 Fix center A. Click on the main interface button , enter a fixed center mode; Left or Right Geometric center model contrast Optical center mode B. Suction cup holder; Note: suction cup direction, Concave point corresponding pin... - Page 14 C. Select the geometric center mode, the rotary swing arm, and the suction cup. D. Take the lens. Cautions: The default mode (two centering instrument geometric center mode and optical center mode) 1 Geometric center mode (manual shift) lens edger processing mode 2 Optical center mode (automatic shift center) lens edger...
-
Page 15: Menu
2.2.5 Menu A. Click on the main interface button , enter into menu; Size Center meter compensation calibration Size calibration Memory data export Language calibration Memory data import 2.2.6 Size correction A. Click menu interface button , enter into size correction interface;... -
Page 16: Calibration Of Center Meter
2.2.7 Calibration of center meter A. Click menu interface button , enter the dimension calibration interface; B. Take the calibrating tools, into the suction cup holder, the rotating center of the arm, under pressure; Regulating knob C. Adjust the level, vertical red line and black line overlap, click the save button; 3.The level of preservation of red and black vertical should be overlap,then save. -
Page 17: Performance Parameter
3 Performance parameter Exterior dimension: 246×225×452mm； Measuring range: lens template L ≤70mm; W≤70mm; Weight: 10Kg Voltage: The power adapter Input: AC100~240V （50/60Hz） ； Output: DC19V/4.7A; Electric power consumption: ≤50W Working condition: 5℃~40℃ Attachment list (packing parts) Name The power adapter The calibration of size RS232 Communication line...
