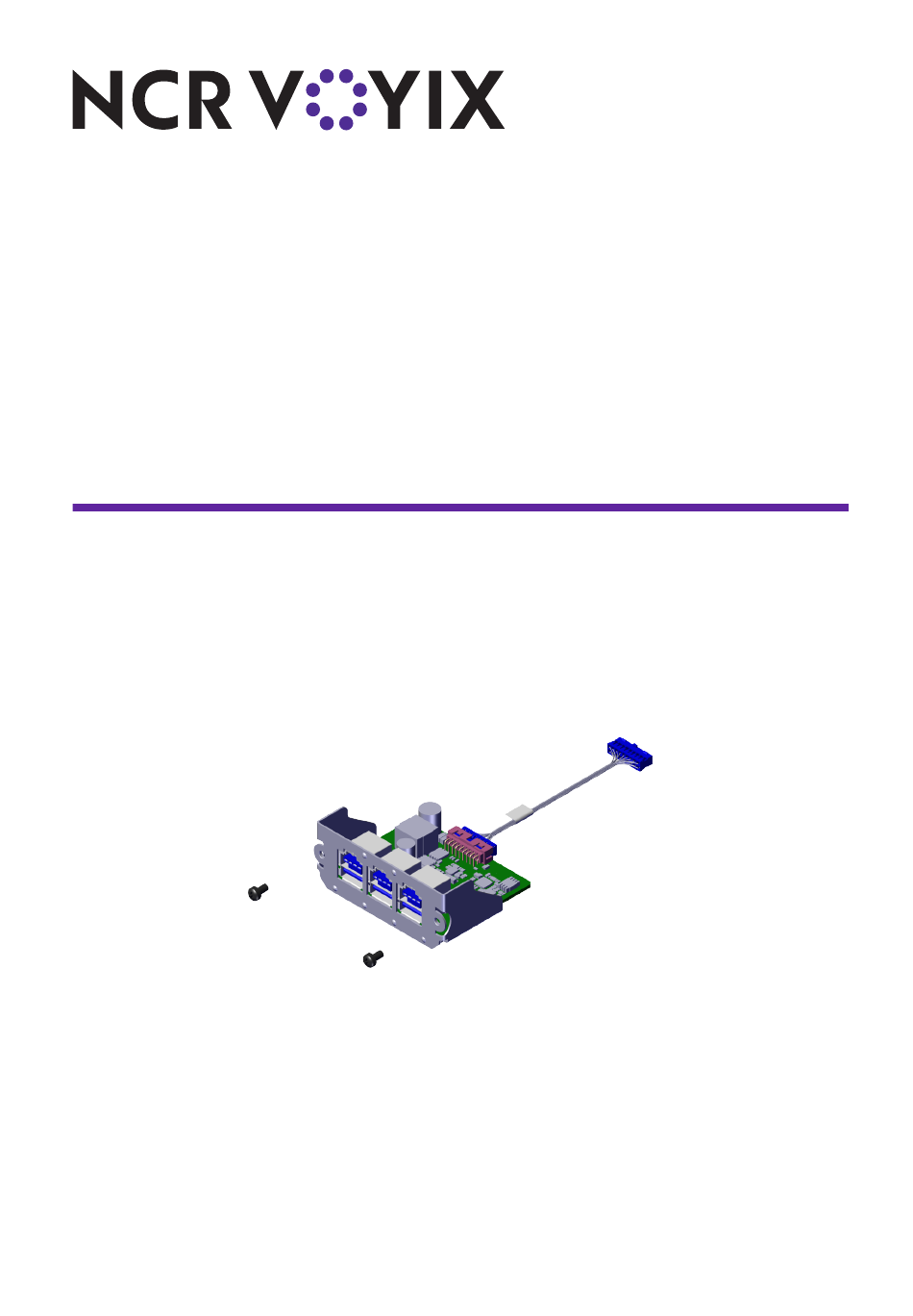

- Page 1 I/O Expansion 3x12V Powered USB Kit Instructions 7735 7735-K020 Issue A © 2024 NCR Voyix. All rights reserved. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
-
Page 2: Copyright And Trademark Information
The product described in this document is a licensed product of NCR Voyix Corporation. NCR Voyix POS Terminal VX40 (7735) is a trademark of NCR Voyix Corporation in the United States and/or other countries. Other product names mentioned in this publication may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. -
Page 3: Revision Record
Revision Record Publication issue Date Description of change Nov 2024 First issue. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions. -
Page 4: Powered Usb
7735-K020 I/O Expansion 3x12V Powered USB This kit provides a 3x12V Powered USB Expansion for the NCR Voyix POS Terminal VX40 (7735). Kit Contents Item Part Number Description 497-0537808 7735-K020 I/O Expansion 3x12V Powered USB 497-0531796 7736 CX8 3x12V USB Expansion Board... -
Page 5: Installation Procedure
2. Remove the Top Cover. 3. Place a clean cloth over the Motherboard. Note The cloth is to catch any metal shavings when the knockout plate is removed. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions. - Page 6 Detach the knockout plate from the chassis. 5. Hold the terminal upside down and shake the unit to remove any metal shavings that may have fallen on the Motherboard. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 7 6. Attach the 3x12V Powered USB Expansion and Bracket Assembly to the chassis using two (2) screws. 7. Connect the Harness to the Motherboard. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 8 8. Place the Top Cover on the chassis. 9. Install the screws in the sequence shown. a. Install two (2) screws on the location shown. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
- Page 9 Install the remaining two (2) screws on the slotted holes, as shown in the image below. Note The slotted screw holes allow for any tolerance difference in the chassis dimensions. Confidential and proprietary information of NCR Voyix. Use and disclose solely pursuant to company instructions.
