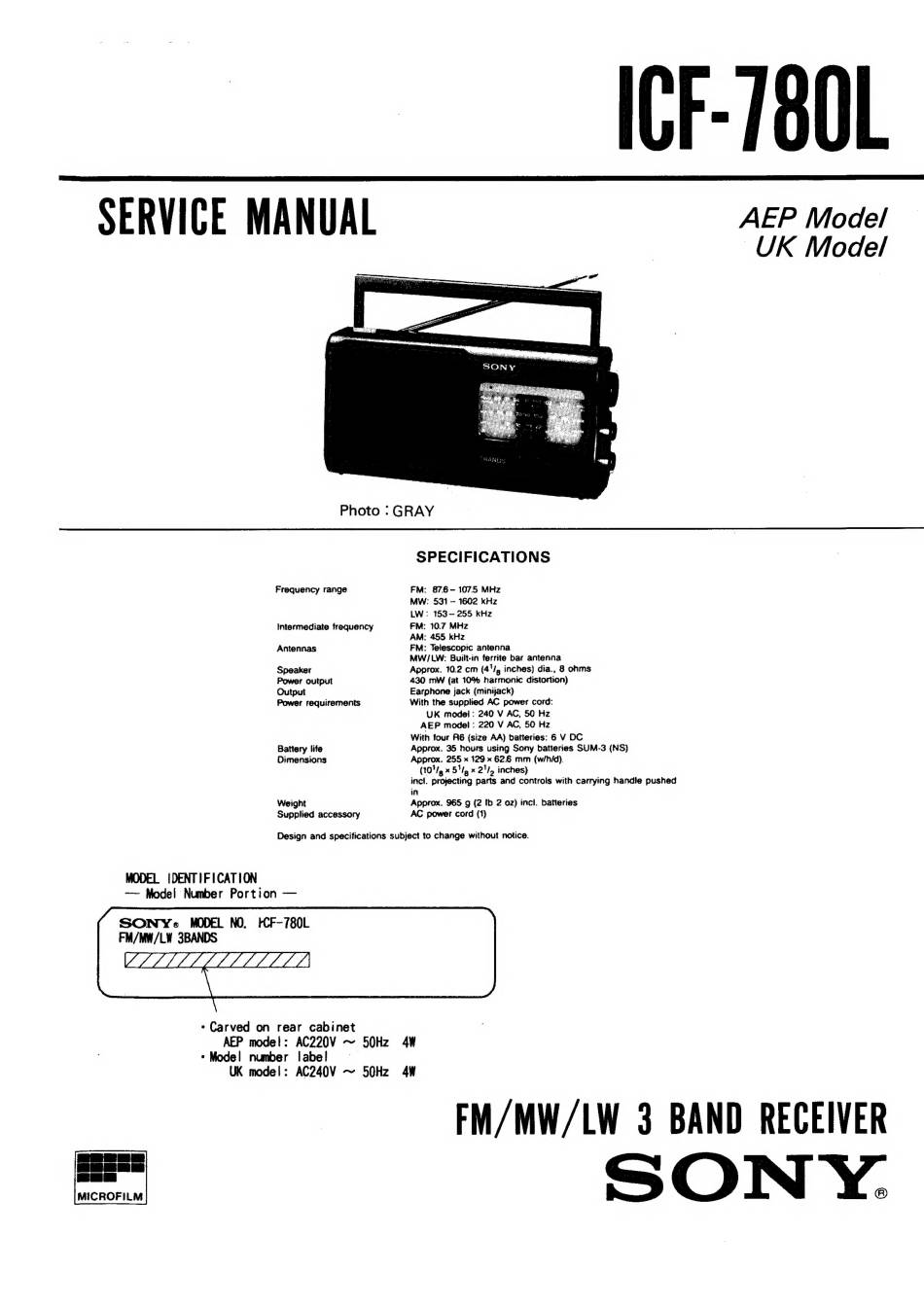

Sony ICFF-780L Service Manual

ICr- 7801
UK Model
Photo : GRAY
SPECIFICATIONS
Frequency range FM: 876-1075 MHz
MW: 531 — 1602 kHz
LW: 153-255 kHz
Intermediate frequency FM: 10.7 MHz
AM: 455 kHz
Antennas FM: Telescopic antenna
MW/LW: Built-in ferrite bar antenna
Speaker Approx. 10.2 cm (4"/, inches) dia., 8 ohms
Power output 430 mW (at 10% harmonic distortion)
Output Earphone jack (minijack)
Power requirements With the supplied AC power cord:
UK model: 240 V AC, 50 Hz
AEP model : 220 V AC, 50 Hz ©
With four A6 (size AA) batteries: 6 V DC
Battery life Approx. 35 hours using Sony batteries SUM-3 (NS)
Dimensions Approx. 255 x 129 x 62.6 mm (w/h/d). .
(10'/, x 5'/, x 2'/, inches)
incl. projecting parts and controls with carrying handle pushed
in
Weight Approx. 965 g (2 Ib 2 oz) incl. batteries
Supplied accessory AC power cord (1)
Design and specifications subject to change without notice.
MODEL IDENTIFICATION
—— Model Number Portion —
SONY=s MODEL NO. HF-780L
FM/MW/LW 3BANDS
- Carved on rear cabinet
AEP model: AC220V ~ 50Hz 4W
: Model number label —
UK model: AC240V ~ 50Hz 4W
FM/MW/LW 3 BAND RECEIVER
oll ON Y.
