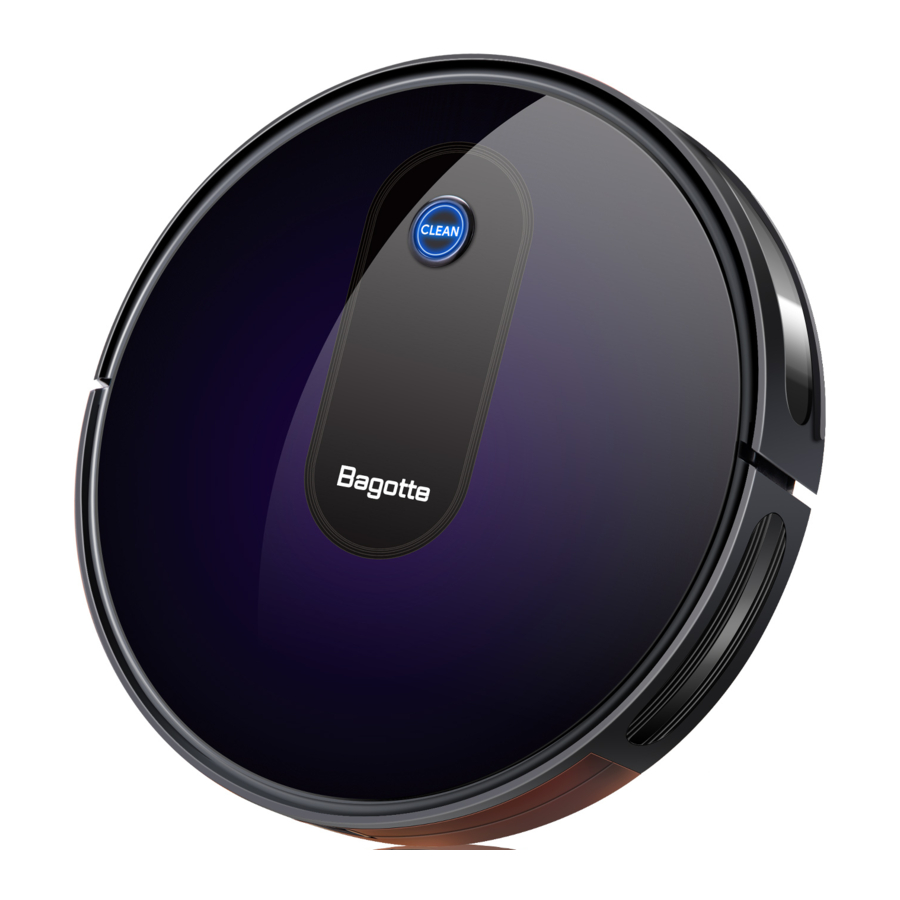

Bagotte BG600MAX Manual

About Your Robot

Main Body

Accessories in the Box

Dust Bin and Suction Inlet

Charging Base

Remote Control

Install 2 AAA batteries before using the remote control for the first time. Make sure the positive and negative ends are facing the correct polarity direction as marked in the battery compartment.

LED Indication

You can see the status of Robot from the LED indicator.

Using Your Robot

Important Tips Before Use

1. Remove power cords and small objects from the floor that may entangle robot.

2. Robot may climb on top of objects less than 0.63 in/16 mm in height. Remove these objects if possible.

3. Keep robot away from wet areas.

4. Keep robot away from spaces lower than 2.87 in/73 mm to prevent robot from getting stuck. If necessary, place a physical barrier to block off the problem areas.

5. Fold tasseled edges of area rugs underneath to prevent tangling robot. Avoid cleaning very dark-colored high-pile rugs or rugs thicker than 1,02 in/26 mm as they may cause robot to malfunction.

6. Anti-drop sensors prevent robot from tumbling down stairs and steep drops. They may work less effectively if dirty or used on reflective/very dark-colored floors, Its recommended to place physical barriers to block off areas where Robot may fall.


Place physical barriers in front of fireplaces and areas that may cause damage to robot if entered.

Preparation

1. Plug in the Charging Base, and take the rest wire into the trunking at the bottom of Charging Base.

   Note: If you don't put the rest wire into the trunking, which may stuck the robot while charging or cleaning,
2. Charging Base Position Place the Charging Base on a hard, level surface and against a wall.

3. Remove objects within 3 ft/ 1 m of the left and right side and within 6 ft/ 2 m of the front of the charging base.

4. Connect the round connector of the adapter into the power socket on the Charging Base and the other end into a wall outlet.


   • Install the Charging Base in a location that Robot can easily access. It is recommended to place the Charging Base against a wall, and on a hard-level surface rather than on rugs or carpets.
   • Always keep the Charging Base plugged in, otherwise Robot will not automatically return to it.
5. Install Side Brushes Attach side brushes to the bottom of robot by pressing a brush into each slot.

6. Turn on the main power switch on the bottom of robot.


Charge Your Robot

• Robot has a pre installed rechargeable battery hat has to be fully charged before use.
• Robot returns to the Charging Base at the end of a cleaning cycle or when its battery is running low.

Method 1: Attach Robotto the Charging Base by aligning its charging pins with the charging pins on the base.

Method 2: Press on the remote control to return robot to the Charging Base.

Turn off the main power switch if Robot will not be used for a long period of time.
To preserve the battery's lifespan, recharge at least once every 6 months.

Start/ Stop Cleaning

1. Start Cleaning Cycle
   • Press the power button once to wake up the Robot.
   • Press the power button again to start a cleaning cycle (or press the button on Remote Control).
     If its battery gets low before finishing a cleaning cycle, robot will return to the Charging Base to recharge.

     If the Charging Dock is inaccessible, robot will not be able to recharge/ It will return to its starting location and the cleaning cycle will end, please place the robot manually on Charging Bas ef or charging. (Refer Activate the Robot).
     Note: Please refer to "Select a Cleaning Mode" section for more Cleaning Mode.
2. Pause
   • To pause the robot during a cleaning cycle press the button or press the button on Remote Control.

   • To resume the cleaning cycle, press button again.
   • To send robot back to he Charging Base, press button.
     Note: The actions listed above can also be managed from the Remote Control.
3. Power OFF
   • To end the cleaning cycle and put robot in standby mode, press and hold button until robot indicators turn off.


Cleaning Mode

1. Auto Cleaning

   • At the start of a cleaning cycle, robot will map out your home and cleaning them efficiently.
   • At various times throughout the cleaning cycle, robot touches up around the edges of the room, as well as chair legs and other furniture.
   • Robot continues this process until it has cleaned entire level of your home If its battery gets low be ore finishing a cleaning cycle, robot will auto returns to the Charging Base to recharge.
   • Once robot finishes its cleaning cycle, it returns to the Charging Base to recharge.
2. Spot Cleaning
   When you select Spot Cleaning, robot intensely cleans a localized area by spiraling outward about 3 feet(l meter) in diameter and then spiraling inward to where it started.
   When Spot Cleaning, robot boosts is vacuum power to provide the best cleaning possible where you need it.
   To use Spot Cleaning, place robot on top of the localized debris and press (Spot) on the Remote Control.

3. Max Vacuuming Cleaning
   Robot increases its vacuum power to provide a deeper clean when press the button on Remote control, Max Vacuuming Cleaning if Off by default.

4. Edge Cleaning
   After robot finishes cleaning the open areas of your floor, it uses Edge Clean to ensure that it has cleaned along walls and around furniture Legs. If you prefer a quicker edge cleaning, press the button on Remote Control.

5. Single room cleaning
   When one specific room needs to be cleaned, press the button on Remote control.

   Note: Robot will clean and then stop after 30 minutes in this mode.
   Make sure confine robot to a room by closing the door.

Set Time and Scheduled Cleaning

Set Time

Make sure the time is set correctly to your local time before setting a scheduled cleaning.

1. Make sure the main power switch on the bottom of robot is turned on.

2. Press on the remote control The time will blink on the display.
3. Press to set the "hour" and "minute.
   Note: Make sure AM/ PM is set correctly.
4. Press or to save the setting Robot will BEEP ONCE to indicate the time has been set.


To ensure the time is set successfully, make sure robot is turned on You will hear a beep when the time has been set.

Set a Scheduled Cleaning

You can schedule robot to start cleaning at a specified time.
To cancel a previously scheduled cleaning, press and hold for 3 seconds until robot beeps twice and disappears.

Note: Before setting a scheduled cleaning, make sure the time has been set correctly to your local time; refer to the previous section "Set Time" for how to set the time.

1. Make sure the main power switch on the bottom of robot is turned on.

2. Press on the remote control will blink on the display.
3. Press to set the "hour" and "minute".
   Note: Make sure AM/ PM is set correctly.
4. Press or to save the setting Robot will BEEP ONCE to indicate the schedule has been set.


To ensure the time is set successfully, make sure robot is turned on. You will hear a beep when the time has been set.

Use the Boundary Strip

With the Boundary Strip, you can keep robot away from any area or item you do not want robot to clean.
Robot will recognize the Boundary Strip and will not cross into the blocked-off area.

1. Identify the area or item you do not want robot to get close to.
2. If necessary, use scissors to cut the Boundary Strip to a shorter length Be sure to correctly measure the length before cutting.

3. Apply the supplied strips of adhesive tape to lay the Boundary Strip flat on the floor. Make sure the strip is placed FLAT on the floor or under an area rug.


• If the Boundary Strip is rolled up, remove and then re-apply on the floor adhesive tape Otherwise the Boundary Strip may not work well.
• Make sure the Boundary Strip is placed on the same surface plane robot is used on.
• Be careful not to damage the floor when using adhesive tape It is not recommended for use on carpets.
• Keep the Boundary Strip away from objects that emit excessive heat.

Regular Robot Care

To keep robot running at peak performance, perform the following care procedures. If you notice robot picking up less debris from your floor, then empty the bin, clean the filter and rolling brush.

Recommended cleaning / replacement frequency:

Emptying Robot 's Bin

1. Press bin release button to remove the bin.

2. Open bin's door to empty it.


Cleaning Robot 's Filter

1. Remove filter by grasping the white tab.

2. Shake off debris by tapping the filter against your trash container.


Cleaning Robot 's Rolling Brush, Side Brush, Swivel Wheel

1. Take out the rolling brush, clean the vacuuming aisle by a cloth.

2. Clean the rolling brush Cut down the hair winded in the rolling brush with the provided cleaning tool's knife.

3. Remove the side brush, use a cloth to remove the dust from the brush.

4. Pull out the swivel wheel, then clean the Swivel Wheel with the cleaning tool.


Clean the Sensors and Charging Pins

To maintain the best performance, clean the drop sensors and charging pins regularly.

• Dust off the drop sensors and charging contact pins using a cloth or cleaning brush.


Troubleshooting

Error Tones

When robot is in trouble, it will emit a series of short or long beeps and the red indicator on robot will be solid or flashing.

Flashing red indicator light

Solid red indicator light

Frequently asked questions

Specifications

	Product Model	BG600Max
	Input	19V 0.6 A
	Battery Voltage DC	14.4 V
	Power Consumption	28 W
	Battery Type	DC 14.4 V Li-ion 2600 mAh
	Dust Collector Capacity	0.5L
	Max Cleaning Time	100 mins
	Charging Time	300 - 360 mins
	Input	19 V 0.6 A
	Output	19 V 0.6 A

Important Safety Instructions

Safety Advice and Warnings

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of he appliance in a safe way and understand the hazards involved
• Cleaning and maintenance shall not be performed by children without adult supervision
• This appliance is not a toy Children should be supervised to ensure that they do not play with the appliance
• This appliance contains accessories with rotary parts. Loose clothes, jewellery or long hair can be caught in moving parts Dress properly. Do not wear baggy or loose hanging clothes or accessories Keep your hair, clothing and gloves away from moving parts
• This product is designed to be plugged into a standard outlet only Product may not be used with any type of power converter. Use of power converters will immediately void the warranty
•
  Only charge one of the following Bagotte batteries: maximum 14 4V, max 2600mAh Ni-MH or maximum 2600mAh Li-ion battery Other type of batteries may burst causing injury Always contact Customer Care for the correct replacement of your battery
• Always charge and remove the battery from your robot and accessories before long-term storage or transportation
• The battery must be removed from this device before this device is disposed To remove the battery from this device, first remove the screws on the bottom, then remove the main PCB and unscrew the battery cover using a screwdriver. Remove the battery by disconnecting the quick connector.
•
  Chemical Exposure: If the battery pack is leaking, do not allow the liquid to come in contact with skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. Place the battery (the used battery pack included when the robot will be disposed) in a sealed plastic bag and dispose of safely according to local environmental regulation.
•
  Fire or Explosion Hazard: Do not crush or dismantle battery packs. Do not heat or place the battery pack near any heat source or direct sunlight. Do not incinerate or short-circuit the battery pack. Do not subject batteries to mechanical shock.
• Contact your local waste management authority for battery recycling and disposal regulations in your area.
• The device is for indoor use only.
• Do not use non-rechargeable batteries. Use only the rechargeable battery supplied with the product.
• Store and operate the device in room temperature environments only.
• The external flexible cable or cord of the power supply unit cannot be replaced; if the cord is damaged, the power supply unit shall be disposed of.
• Do not use robot to pick up sharp objects, glass, or anything that is burning or smoking.
• Do not immerse the battery pack in any liquid.
• Do not use this device to pick up spills of water bleach, paint, or other chemicals, or anything wet.
• Before using this device, pick up objects like clothing, loose papers. Lift up cords for blinds or curtains, power cords, and any fragile objects out of the way. If the device passes over a power cord and drags It, there is a chance an object could be pul ed off a table or shelf.
• If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure safe operation.
• Do not place anything on top of this device.
• Be aware that this device moves around on its own. Take care when walking in the area where this device is operating to avoid stepping on it.
• Do not operate this device in areas with exposed electrical outlets on the floor.
• Do not use this device on an unfinished, unsealed, waxed or rough floor It may result in damage to the floor and this device. Use on y on hard floor surfaces or low pile carpet.
• This device has been designed to be used on floors without scratching them. We still recommend that you test this device on a small area of the room to be cleaned to ensure no scratches are made before cleaning the whole room.

Battery and Charging/ Information

Lithium-ion Battery

Lithium-ion batteries and products that contain Lithium-ion are subject to stringent transportation regulations. If you need to ship this product (with the battery included) for service, travel or any other reason, you MUST comply with the following shipping instructions:

• Remove the Lithium-ion battery from the product.
• Place a Piece o tape over the battery 's metal charging contacts.
• Reinstall the battery (with the tape on it) in the product and secure the battery door.
• Package the product in its original packaging or in your own packaging that prevents any movement during transportation.
• Ship via ground transportation only (no air shipping).

Battery Storage
If storing robot off the Charging Dock, remove the battery first. Then store Robot and the battery in a cool, dry place.
