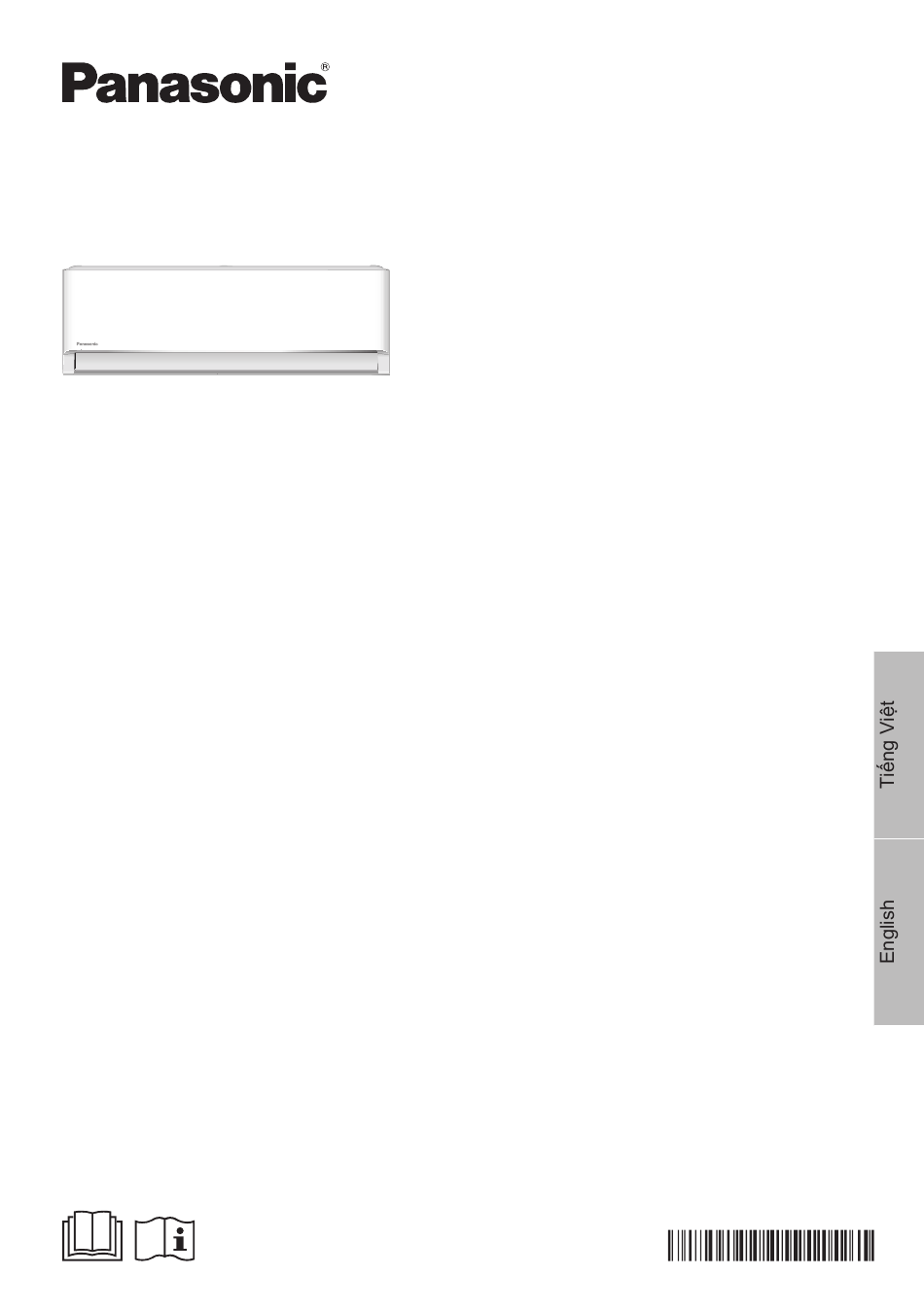

Operating Instructions
Air Conditioner
Model No.
Indoor Unit
CS-XU9BKH-8
CS-XU12BKH-8
Outdoor Unit
CU-XU9BKH-8
CU-XU12BKH-8
Hướng dẫn sử dụng
Máy điều hòa không khí
Trước khi vận hành thiết bị, vui lòng đọc kỹ các hướng dẫn
vận hành này cùng với hướng dẫn an toàn (cuốn sách riêng)
và giữ lại để tham khảo cho những lần sau.
Trước khi lắp đặt, người lắp đặt phải:
Đọc hướng dẫn lắp đặt và yêu cầu khách hàng cất giữ bản
hướng dẫn để tham khảo sau này.
Gỡ điều khiển từ xa được đóng gói cùng với dàn lạnh.
Operating Instructions
Air Conditioner
Before operating the unit, please read these operating
instructions together with Safety Instructions (separate
booklet) thoroughly and keep them for future reference.
Before installation, the installer must:
Read the Installation Instructions, then request the customer
keep them for future reference.
Remove the remote control packed with the indoor unit.
2-11
12-21
ACXF55-40121

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-XU9BKH-8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Panasonic CS-XU9BKH-8

  • Page 1 Operating Instructions Air Conditioner Model No. Indoor Unit Outdoor Unit CS-XU9BKH-8 CU-XU9BKH-8 CS-XU12BKH-8 CU-XU12BKH-8 Hướng dẫn sử dụng 2-11 Máy điều hòa không khí Trước khi vận hành thiết bị, vui lòng đọc kỹ các hướng dẫn vận hành này cùng với hướng dẫn an toàn (cuốn sách riêng) và...
  • Page 2 Chỉ báo Không khí Sạch hiển thị chất lượng không khí thông qua cảm biến mùi và bụi. Sử dụng nanoe TECHNOLOGY giúp lọc không khí, đảm bảo môi trường trong lành hơn. Sử dụng điều khiển trong khoảng 8m tính từ...
  • Page 3 Cảm ơn bạn đã lựa chọn Máy điều hòa không khí Panasonic. Mục Lục Cách Sử dụng ....4-6 Tìm Hiểu Thêm.....7 Vệ sinh Máy Điều hòa ..8 Những vấn đề thường gặp ........9-11 Phụ kiện • Điều khiển từ xa •...
  • Page 4: Cách Sử Dụng

    Cách Sử dụng To adjust airfl ow direction Thay đổi hướng gió (đảo cánh gió) Hướng lên/ Hướng xuống Hướng (đảo cánh gió) nghiêng Các đèn hiển thị qua lại • Không điều chỉnh cánh gió bằng tay. (NGUỒN) (HẸN GIỜ) (LAN Không (ECO) (Chỉ...
  • Page 5 Xem mục “Tìm Hiểu Thêm…” để biết thêm chi tiết. Để đạt được nhiệt độ mong muốn nhanh chóng Thiết lập nhiệt độ -2°C / iAUTO-X -4°F Tối đa = 4 tiếng • Khi bật chế độ iAUTO-X, máy sẽ tự động giảm 2°C (4°F) từ nhiệt độ cài đặt để tăng tốc hiệu quả làm lạnh phòng.
  • Page 6 Cách Sử dụng Để theo dõi trực quan chất lượng không khí trong môi trường trong nhà Màu chỉ báo không khí sạch hiển thị Cấp độ chất lượng không khí Màu đỏ Chưa tốt - Có nhiều bụi và/hoặc nặng mùi. Trung bình - Có...
  • Page 7 Tìm Hiểu Thêm... Chế độ hoạt động iAUTO-X : Cung cấp khả năng làm mát nhanh, lý tưởng trong những ngày nắng nóng. COOL (LÀM LẠNH) : Đem lại sự làm mát dễ chịu một cách hiệu quả và phù hợp với nhu cầu của bạn. DRY (HÚT ẨM) : Quạt quay chậm để...
  • Page 8 Vệ sinh Máy Điều hòa Cần tiến hành vệ sinh và bảo dưỡng định kỳ Khối trong nhà để đảm bảo máy hoạt động tối ưu. Máy bẩn Mặt máy Lá nhôm sẽ gây ra hỏng hóc và bạn có thể thấy mã lỗi “H 99”.
  • Page 9 Những vấn đề thường gặp Những hiện tượng sau không phải sự cố thuộc thiết bị. Hiện tượng Nguyên nhân Đèn POWER (NGUỒN) nhấp nháy trước khi máy bật. • Đây là bước đầu để chuẩn bị cho hoạt động TIMER (HẸN GIỜ) sau khi đã...
  • Page 10 Những vấn đề thường gặp Khi... ■ Điều khiển bị mất hoặc không hoạt động 1. Nâng mặt trước. 2. Nhấn nút AUTO OFF/ON (TỰ ĐỘNG TẮT/BẬT) một lần để sử dụng ở chế độ iAUTO-X. AUTO 3. Để vận hành chế độ COOL (LÀM LẠNH) bắt buộc, nhấn nút AUTO OFF/ON OFF/ON (TỰ...
  • Page 11 Lấy mã lỗi Nếu thiết bị dừng và đèn báo (TIMER) của thiết bị nhấp nháy, hãy sử dụng điều khiển từ xa để truy xuất mã lỗi. Dùng vật nhọn nhấn nút Nhấn nút đến khi bạn nghe trong 5 giây một loạt tiếng bíp, sau đó...
  • Page 12 The Clean Air Indicator visualises air quality through odour and dust sensors. Using nanoe TECHNOLOGY, it purifi es the air, ensuring a fresher environment. Use the remote control within 8 m from the remote control receiver on the indoor unit. Quick Guide Inserting the batteries Clock setting...
  • Page 13 Thank you for purchasing Panasonic Air Conditioner. Table of Contents How to Use ....14-16 To Learn More....17 Cleaning the Air Conditioner ....18 Troubleshooting .....19-21 Accessories • Remote control • AAA or R03 batteries × 2 • Remote control holder •...
  • Page 14: How To Use

    How to Use To adjust airfl ow direction To adjust airfl ow direction (swing) Upper/Lower direction Lateral (swing) direction Indicators • Do not adjust the fl ap by hand. (POWER) (TIMER) (Wireless (ECO) (Clean * For details operation, refer to “To Learn More...” (nanoe LAN) TECHNOLOGY)
  • Page 15 See "To Learn More..." for details. To reach the desired temperature quickly Set temperature -2°C / iAUTO-X -4°F Max = 4 hours • When iAUTO-X mode is turned on, the unit automatically reduces the temperature by 2°C (4°F) from the set temperature to accelerate the room cooling effect. •...
  • Page 16: To Connect To A Network

    How to Use To visually monitor the air quality within the indoor environment Clean Air Indicator Color Display Air Quality Level Poor - Dusty and/or strong odour intensity. Orange Fair - Minor dirt presence. Mild odour intensity. Green Excellent - Clean. Low odour intensity. •...
  • Page 17: To Learn More

    To Learn More... Operation mode iAUTO-X : Provides fast cooling operation which is ideal on a hot day. COOL : Provides effi cient comfort cooling to suit your needs. : Operates at low fan speed for a gentle cooling operation. When FAN AUTO is selected, DRY mode will operate with humidity control.
  • Page 18: Cleaning The Air Conditioner

    Cleaning the Air Conditioner Cleaning has to be carried out at regular Indoor unit intervals to ensure the unit is at optimal Front panel Aluminium fi n performance. A dirty unit may cause malfunction and you may retrieve “H 99” error code.
  • Page 19: Troubleshooting

    Troubleshooting The following symptoms do not indicate malfunction. Symptom Cause POWER indicator blinks before the unit is switched on. • This is the preliminary step to prepare for the TIMER operation after it has been set. When Timer is set ON, the unit may start earlier (up to 15 minutes) before the actual set time to achieve the desired temperature on time.
  • Page 20 Troubleshooting When... ■ The remote control is missing or a malfunction has occurred 1. Raise the front panel. 2. Press AUTO OFF/ON once to use in iAUTO-X mode. 3. To operate forced COOL mode, press AUTO OFF/ON hold until you AUTO hear 1 beep, then release.
  • Page 21: How To Retrieve Error Codes

    How to retrieve error codes If the unit stops and the unit (TIMER) indicator blinks, use the remote control to retrieve the error code. Press for Press until you hear beep 5 seconds sound, then write down the error code Press for 5 Turn the unit off and seconds to quit...
  • Page 22 Memo...
  • Page 23 Memo...
  • Page 24 Panasonic Corporation 1006, Oaza Kadoma, Kadoma City, Osaka 571-8501, Japan Website: http://www.panasonic.com © Panasonic Corporation 2024 ACXF55-40121 Printed in Malaysia SZ1024-1...
