White Lightning
IMPORTANT INSTRUCTIONS, DISCLAIMERS & LIABILITY LIMITATIONS
As a condition for use, Audio Authority
licensed pilots and maintenance technicians, knowledgeable about the aircraft's electrical system and batteries.
The concepts, recommendations, and instructions in this manual are necessarily general and make assumptions
that do not apply to every aircraft and may not be correct for your particular aircraft. Improper use of this device has
the potential to damage the GPU and/or aircraft components.
It is the operator's sole responsibility to read completely and fully understand this manual, plus all available
documentation on their aircraft's electrical system design, to properly determine the appropriate use of this, or any,
external power source. If you cannot do this, do not use this product. Instead, consult a qualified technician familiar
with your specific aircraft type and configuration before connecting the GPU to your aircraft, or return it to the seller
before using.
This device contains FCC ID: XPYNINAW15. This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
PN E-246, User Manual, Model S28054 Rev 20241125
User Manual

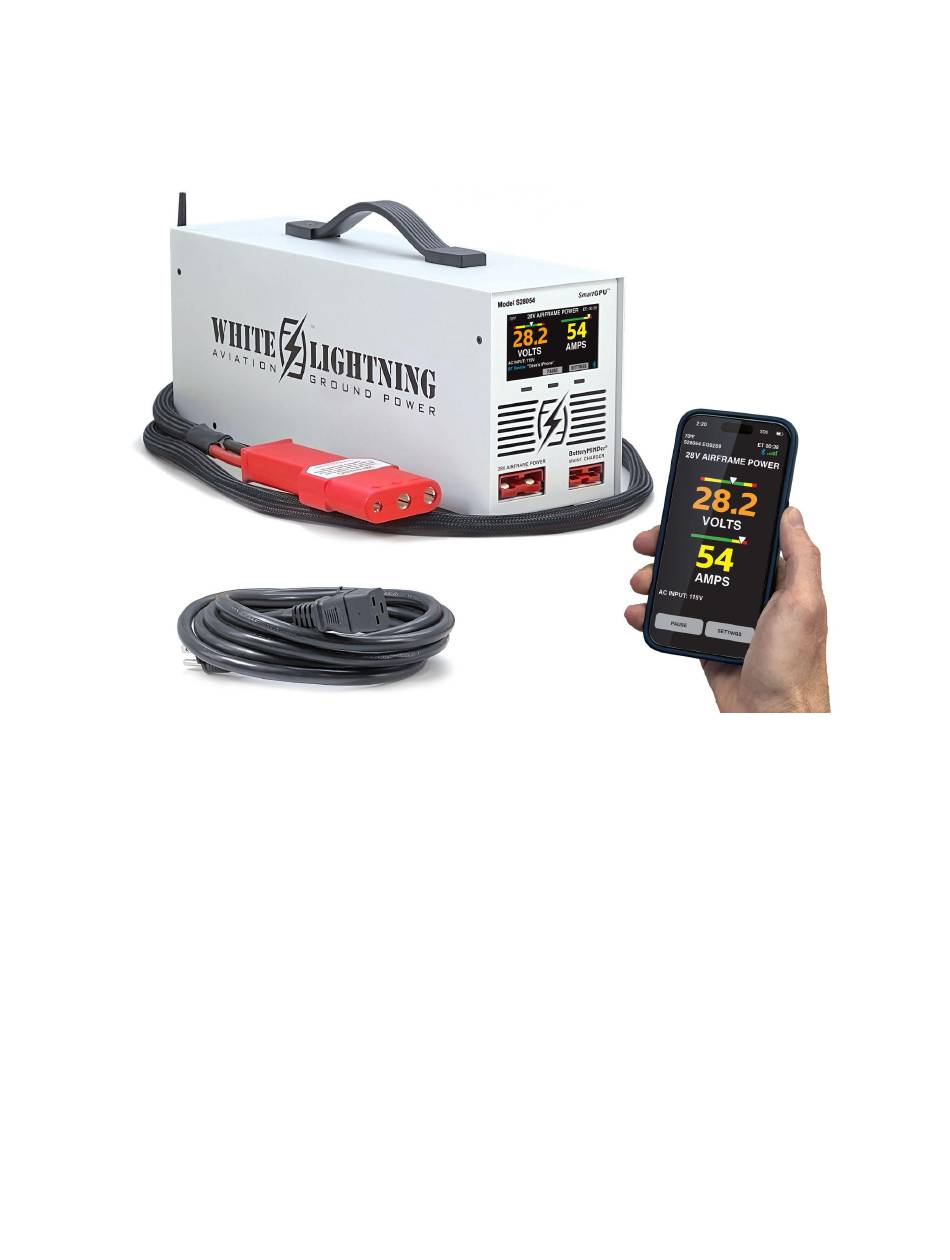

Model S28054 SmartGPU
™
®
Corp. authorizes this device for use ONLY by aviation professionals, such as
™
1
Advertisement
Table of Contents
Related Manuals for White Lightning SmartGPU S28054
Summary of Contents for White Lightning SmartGPU S28054
- Page 1 User Manual White Lightning Model S28054 SmartGPU ™ ™ IMPORTANT INSTRUCTIONS, DISCLAIMERS & LIABILITY LIMITATIONS ® As a condition for use, Audio Authority Corp. authorizes this device for use ONLY by aviation professionals, such as licensed pilots and maintenance technicians, knowledgeable about the aircraft’s electrical system and batteries.
- Page 2 SmartGPU. About the GPU The White Lightning Model S28054 SmartGPU is an advanced 1500W (54A @ 28V DC) power supply designed to provide safe, stable, airframe power for a wide variety of general aviation aircraft. It connects to the aircraft’s AN2552-3A external power receptacle to energize the aircraft’s main electrical bus...
-
Page 3: Features And Controls
Features & Controls PN E-246, User Manual, Model S28054 Rev 20241125... -
Page 4: Input Power Requirements
Input Power Requirements SmartGPUs are designed for worldwide use with universal AC input range of 90-264 volts, 47-63 Hz. The GPU is supplied with an input line cord for North American 115-volt AC line service. Therefore, when using 115V power, the GPU should be connected to a dedicated 120 volt AC, 20-amp wall receptacle. For full rated output, an AC branch circuit with sufficient amperage is required. - Page 5 GPU STARTUP: Move the power switch to the ON position. The display sequences through initialization, the White Lightning splash screen, product identification, installed options, and conditions for use. 1. Press the CONFIRM key to accept the conditions for use. 2. If an optional BatteryMINDer maintenance charger (BMC) is installed, select the GPU function to proceed.
- Page 6 Remote GPU Operation For untethered remote indication and control from your mobile device, download the White Lightning SmartGPU App to your mobile device from the Apple iOS Store. (As of this writing, Android support is in development and will be offered in a future software release.) To pair your mobile device with the SmartGPU: 1) Open the SmartGPU app which will search for available SmartGPUs.
- Page 7 When enabled, a countdown of the auto-shutdown timer (ST) will be shown in the upper right corner of the display, alternating with the elapsed time (ET). The countdown timer is shown in yellow until 15 minutes prior to shutdown when it switches to red. Pausing the GPU output or cycling the power switch will restart the timer.
- Page 8 The BLUETOOTH SETTINGS menu includes the following options: START PAIRING This option puts the GPU into pairing mode which allows the mobile device app to “discover” it. Bluetooth pairing uses a numerical passcode which must be confirmed on the mobile device to initiate pairing and connection. DISCONNECT DEVICE Disconnects the current active device from the GPU.
-
Page 9: Specifications
Specifications: S28054 Model Function Continuous External Airframe Power (not for engine start) 90-264 volts, 47/63 Hz AC Input Requirements 15A @ 115-volts AC Input Connection Supplied 115V detachable 10’ NEMA 5-15P Output Power 1500 watts DC Output Voltage 28.3 volts, default setting (trim range 27.5 to 29.5V DC) DC Output Current 54A max continuous Output Indication... - Page 10 One Year Limited Warranty Our Model S28054 SmartGPU is warranted to the original purchaser to be free of defects in materials and workmanship for a period of one year from date of shipment. If you suspect a failure, please contact our service department for instructions or see our Service Policies online at www.audioauthority.com/page/Service_policy.
