White Lightning SmartGPU S28114 User Manual

Hide thumbs

Advertisement

Table of Contents

White Lightning
IMPORTANT INSTRUCTIONS, DISCLAIMERS & LIABILITY LIMITATIONS
As a condition for use, Audio Authority
licensed pilots and maintenance technicians, knowledgeable about the aircraft's electrical system and batteries.
The concepts, recommendations, and instructions in this manual are necessarily general and make assumptions
that do not apply to every aircraft and may not be correct for your particular aircraft. Improper use of this device has
the potential to damage the GPU and/or aircraft components.
It is the operator's sole responsibility to read completely and fully understand this manual, plus all available
documentation on their aircraft's electrical system design, to properly determine the appropriate use of this, or any,
external power source. If you cannot do this, do not use this product. Instead, consult a qualified technician familiar
with your specific aircraft type and configuration before connecting the GPU to your aircraft, or return it to the seller
before using.
This device contains FCC ID: XPYNINAW15. This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
PN E-245, User Manual, Model S28114 Rev 20241125
User Manual
Model S28114 SmartGPU
™
®
Corp. authorizes this device for use ONLY by aviation professionals, such as
™
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartGPU S28114 and is the answer not in the manual?

Questions and answers

Related Manuals for White Lightning SmartGPU S28114

Summary of Contents for White Lightning SmartGPU S28114

  • Page 1 User Manual White Lightning Model S28114 SmartGPU ™ ™ IMPORTANT INSTRUCTIONS, DISCLAIMERS & LIABILITY LIMITATIONS ® As a condition for use, Audio Authority Corp. authorizes this device for use ONLY by aviation professionals, such as licensed pilots and maintenance technicians, knowledgeable about the aircraft’s electrical system and batteries.

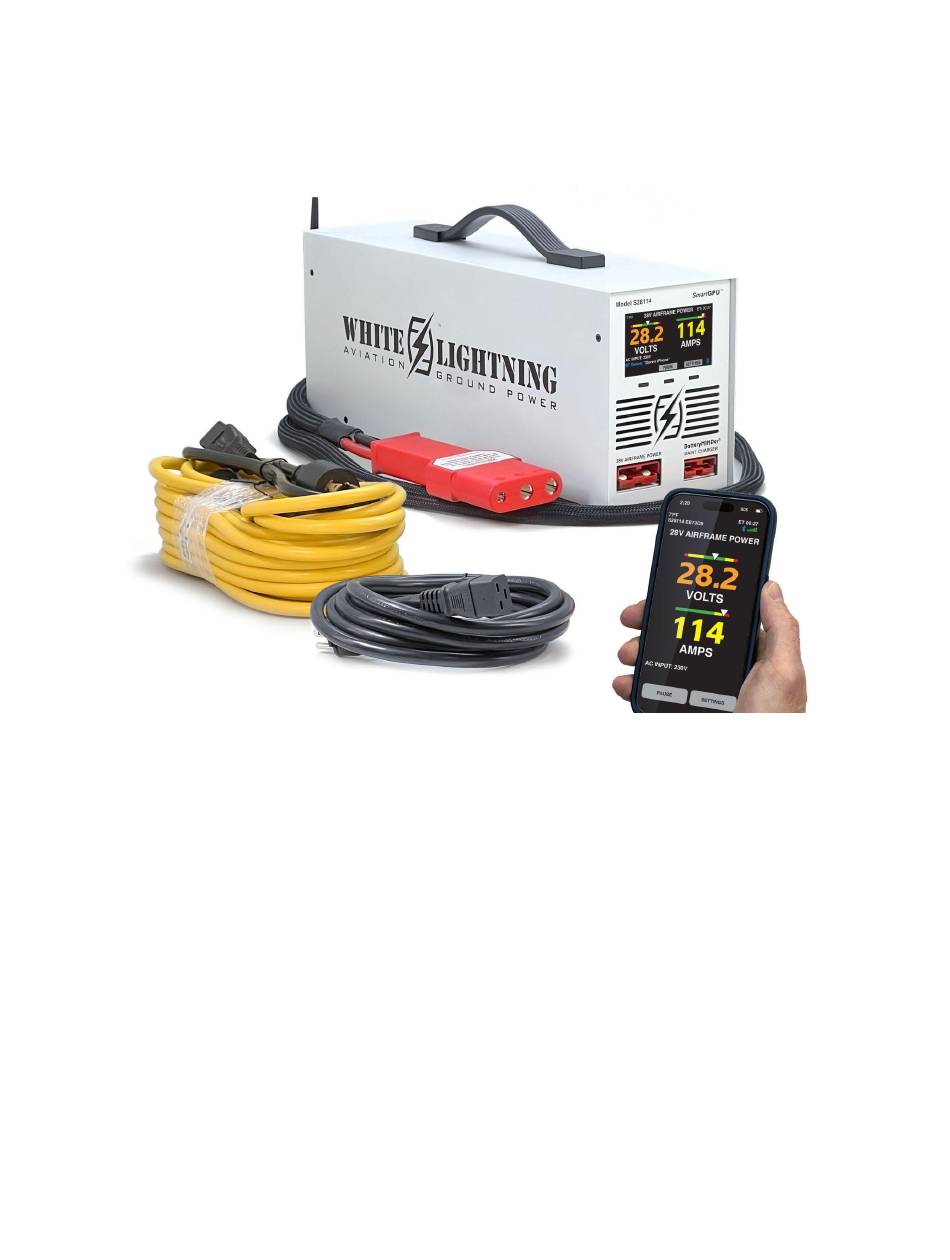

  • Page 2 SmartGPU. About the GPU The White Lightning Model S28114 SmartGPU is an advanced 3200W (114A @ 28V DC) power supply designed to provide safe, stable, airframe power for a wide variety of general aviation aircraft. It connects to the aircraft’s AN2552-3A external power receptacle to energize the aircraft’s main electrical bus...
