Summary of Contents for Parweld XR943H

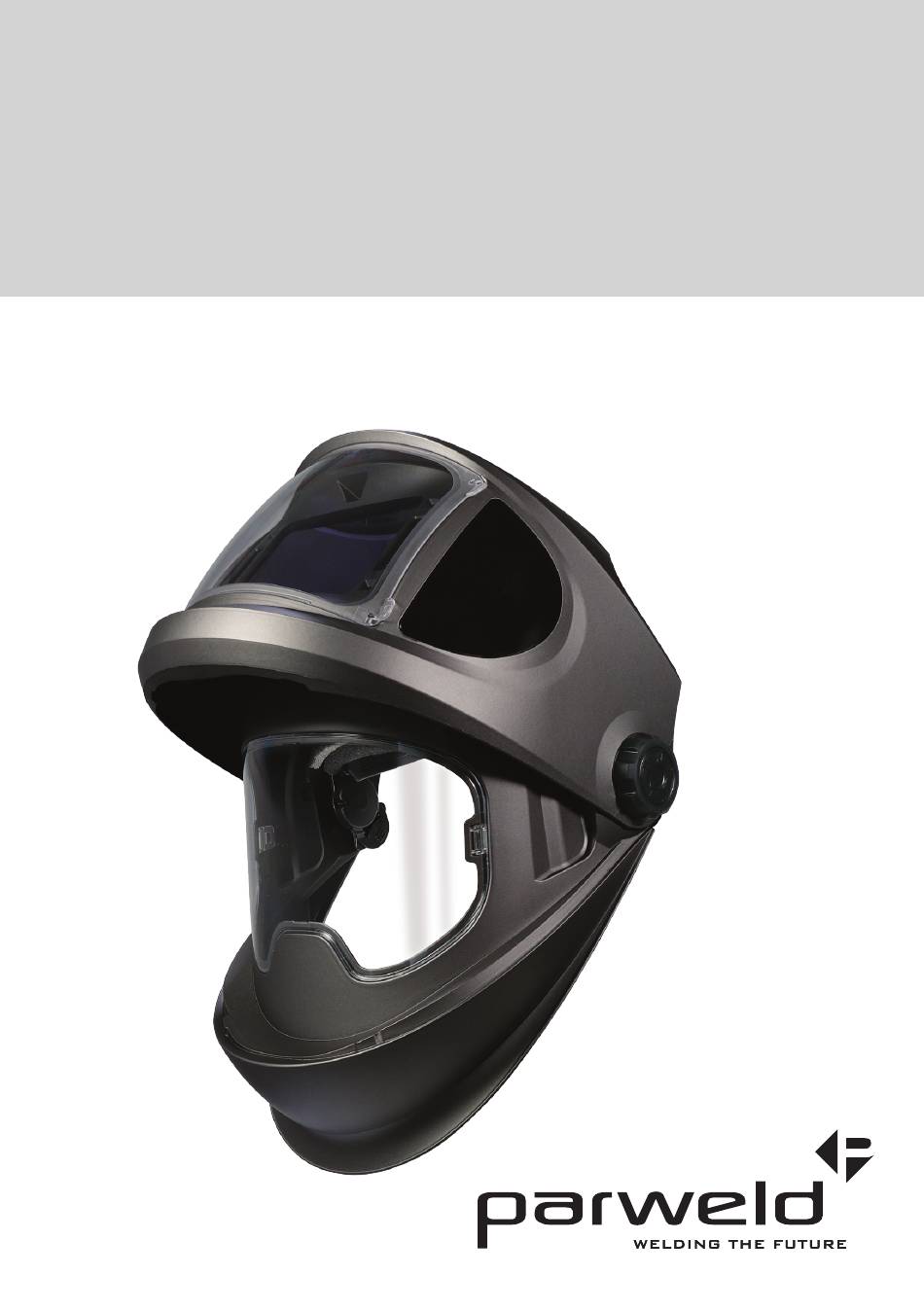

- Page 1 XR943H FLIP Light Reactive Welding and Grinding Helmet User Instructions...
- Page 2 2. Product Features The XR943H uses a thin Liquid Crystal Display coupled to sensors react instantly to the arc being struck and switch the display to block the light before it is registered by the eye. The dark shade can be adjusted from 4-13 DIN depending upon the application. The lens system also includes permanent UV and IR filters which ensure full time protection for the user even in the light state or a failure mode.
- Page 3 XR943H - FLIP Light Reactive Welding and Grinding Helmet 4. Controls Location To access and operate the controls, partially open the flip and use you thumbs to operate the buttons. Internal cartridge controls 5. Adjustment to Suit Your Head a) The helmet is provided with a range of adjustments to ensure a perfect fit on you head Adjust the head band diameter, and the 3 over head bands so the lens is positioned in you normal line of sight.
- Page 4 XR943H - FLIP Light Reactive Welding and Grinding Helmet b. Adjust the Distance Between Face and ADF, Using the two slider tabs, this will allow clear- ance for spectacles or face masks, ensure they are both set in the same position.
- Page 5 XR943H - FLIP Light Reactive Welding and Grinding Helmet 6. Operation Control View The XR943H can be operated in fully automat- ic mode or set manually, depending upon the application. Welding Use mode button to toggle to welding mode. Shade adjustment...
- Page 6 XR943H - FLIP Light Reactive Welding and Grinding Helmet Sensitivity adjustment Control View Available in Weld and Cut modes, adjusts how sensitive the lens is to changes in light levels, as a general rule for low power welding use high...
- Page 7 XR943H - FLIP Light Reactive Welding and Grinding Helmet Delay Control View This is the waiting time for the helmet to lighten after the welding process has finished. A longer delay is preferred for high power welding to reduce glare from the after glow.
- Page 8 XR943H - FLIP Light Reactive Welding and Grinding Helmet CUT mode Control View Use mode button to toggle to CUT mode. In CUT mode the helmet shade can be adjusted from shade 4 to 8 which is more suitable for Plasma cutting applications.
- Page 9 XR943H - FLIP Light Reactive Welding and Grinding Helmet GRIND mode Control View For grinding you can simply flip the outer lens up to reveal the clear visor, if you are working in a confined space it may be preferable to use the grind mode which locks the lens at shade 3 and can be used with the visor down.
- Page 10 XR943H - FLIP Light Reactive Welding and Grinding Helmet Power On Off When not in use you should power off the unit using the MODE button (Internal). Press the internal mode button for 2 seconds to power off the unit.
- Page 11 XR943H - FLIP Light Reactive Welding and Grinding Helmet Battery The lens has two internal replaceable batteries. Battery replacement is required when the battery symbol starts to flash. Pull out the battery trays noting the orientation of the tab. Remove the two old batteries and replace with the same type CR2450.
- Page 12 XR943H - FLIP Light Reactive Welding and Grinding Helmet Grinding Lens Placed the helmet in the flipped up position and then on the inside gently push the clear tab away from the helmet to release it, Repeat for the second tab.
-
Page 13: Maintenance
XR943H - FLIP Light Reactive Welding and Grinding Helmet Side windows The side windows are fitted with solid covers , if you wish to improve peripheral vision while the visor is in the down position these covers can be removes to reveal the shade 3 side windows. - Page 14 XR943H - FLIP Light Reactive Welding and Grinding Helmet Sensor Locations Recommended Shade Numbers CURRENT AMPERES WELDING PROCESS 225 250 275 300 350 400 Covered Electrodes Shade 12 Shade 13 MIG Plate Welding Shade 10 Shade 11 Shade 12 Shade 13...
- Page 15 XR943H - FLIP Light Reactive Welding and Grinding Helmet 10. Parts List Item Description Part No Front Cover Lens (outer) XR423 Auto-Darkening Filter (ADF) XR353 Side Window replacement kit inc obscure cover XR435 Grinding protective lens (curved) XR433 Inside Cover Lens (ADF)
- Page 16 @ParweldLtd ParweldTV parweld_uk PARWELD LIMITED Bewdley Business Park, Long Bank, Bewdley, Worcestershire, DY12 2TZ T +44 (0) 1299 266 800 UK AND IRELAND SALES +44 (0) 1299 269 500 EXPORT SALES +44 (0) 1299 269 507 E info@parweld.co.uk www.parweld.com...
