Parweld XR942H User Instructions

Panoramic light reactive welding and grinding helmet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XR942H
PANORAMIC Light Reactive
Welding and Grinding Helmet
User Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR942H and is the answer not in the manual?

Questions and answers

John Trow
June 6, 2025

Should I remove the film on the control panel before welding?

0

Subscribe to Our Youtube Channel

Related Manuals for Parweld XR942H

Summary of Contents for Parweld XR942H

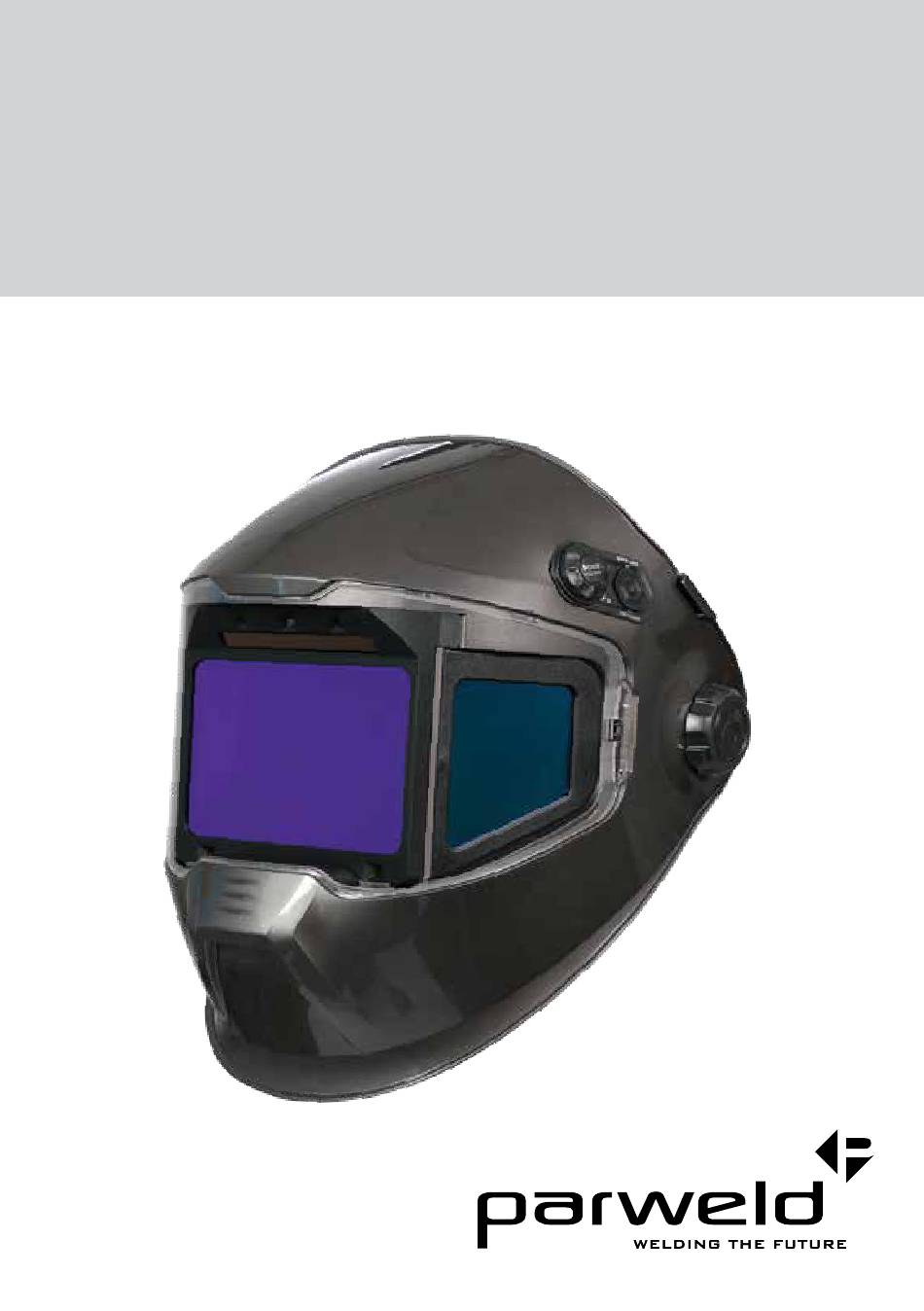

  • Page 1 XR942H PANORAMIC Light Reactive Welding and Grinding Helmet User Instructions...

  • Page 2: Product Features

    2. Product Features The XR942H uses a thin Liquid Crystal Display coupled to sensors react instantly to the arc being struck and switch the display to block the light before it is registered by the eye. The dark shade can be adjusted from 5-13 DIN depending upon the application. The lens system also includes permanent UV and IR filters which ensure full time protection for the user even in the light state or a failure mode.

  • Page 3: Controls Location

    - PANORAMIC Light Reactive Welding and Grinding Helmet 4. Controls Location External Control Pad Internal cartridge controls 5. Adjustment to Suit Your Head a) The helmet is provided with a range of adjustments to ensure a perfect fit on you head...
  • Page 4 - PANORAMIC Light Reactive Welding and Grinding Helmet b. Adjust the Distance Between Face and ADF, Using the two slider tabs, this will allow clearance for spectacles or face masks, ensure they are both set in the same position.

  • Page 5: Operation

    - PANORAMIC Light Reactive Welding and Grinding Helmet 6. Operation The XR942H can be operated in fully Control View automatic mode or set manually. depending upon the application. External Internal Welding Use mode button to toggle to welding mode (Internal or external)
  • Page 6 - PANORAMIC Light Reactive Welding and Grinding Helmet This locks the helmet in the dark state Control View Internal Toggle the Mode button until the External Internal padlock symbol is on. , you can adjust the shade using the up down arrows.
  • Page 7 - PANORAMIC Light Reactive Welding and Grinding Helmet Control View Delay This is the waiting time for the helmet External Internal to lighten after the welding process has finished. A longer delay is preferred for high power welding to reduce glass from the after glow.
  • Page 8 - PANORAMIC Light Reactive Welding and Grinding Helmet Control View Briefly press the MIX button to switch on the MIX mode External Internal Side window lock Locks the side windows in a SIDE dark state which is useful if you have someone working close by and don’t...
  • Page 9 - PANORAMIC Light Reactive Welding and Grinding Helmet Control View GRIND mode Internal use mode button to toggle to External Internal GRIND mode External, press the hex button for 2 seconds The grind LED will flash to indicate SIDE...
  • Page 10 - PANORAMIC Light Reactive Welding and Grinding Helmet Control View Short press the memory button will recall the next memory location Using the up down arrows you can change External Internal the memory location to recall any stored setting. (M/R)
  • Page 11 - PANORAMIC Light Reactive Welding and Grinding Helmet Battery The lens has an internal replaceable battery. Battery replacement is required when the battery symbol starts to flash. Pull out the battery tray noting the orientation of the tab. remove the tow old batteries and replace with the same type CR2032.
  • Page 12 - PANORAMIC Light Reactive Welding and Grinding Helmet Internal cover lens Flex the lens by inserting a finger nail into the slot at the top of the lens, ensure it engages under the tabs indicated. Side window Cover lens...

  • Page 13: Maintenance

    - PANORAMIC Light Reactive Welding and Grinding Helmet 7. Maintenance Foam headband removal • Pull the head band slightly left and right to release from the locating pins and un wrap from the head band. The foam head band can be hand washed in a mild detergent, replacement is the opposite of removal.

  • Page 14: Warranty

    - PANORAMIC Light Reactive Welding and Grinding Helmet Recommended Shade Numbers CURRENT AMPERES WELDING PROCESS 225 250 275 300 350 400 Covered Electrodes Shade 12 Shade 13 MIG Plate Welding Shade 10 Shade 11 Shade 12 Shade 13 MIG Sheet Welding...

  • Page 15: Parts List

    - PANORAMIC Light Reactive Welding and Grinding Helmet 10. Parts List Item Description Part No Front Cover Lens (5pcs) XR443 Auto-Darkening Filter (ADF) XR352 Side Window cover lens (pair) XR445 Inside Cover Lens (10pcs) XR444 Headband Assembly XR342 Sweatband...
  • Page 16 @ParweldLtd ParweldTV parweld_uk PARWELD LIMITED Bewdley Business Park, Long Bank, Bewdley, Worcestershire, DY12 2TZ T +44 (0) 1299 266 800 UK AND IRELAND SALES +44 (0) 1299 269 500 EXPORT SALES +44 (0) 1299 269 507 E info@parweld.co.uk www.parweld.com...
