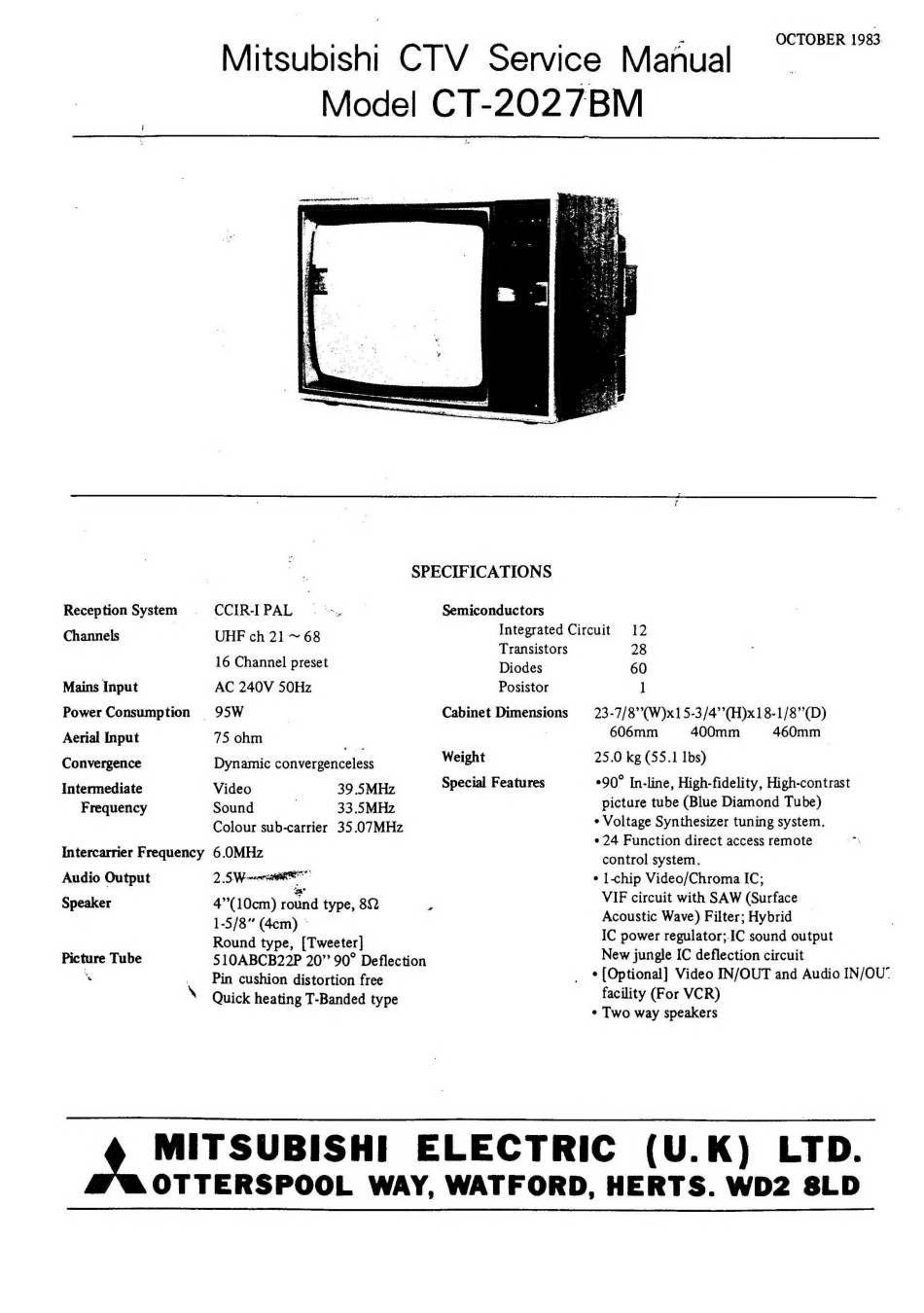

Mitsubishi Electric CT-2027BM Service Manual

OCTOBER 1983.
Mitsubishi CTV Service Manual
Model CT-2027BM
t
4
SPECIFICATIONS
Reception System CCIR-IPAL |. --., Semiconductors
Channels UHE ch 21 ~ 68 Integrated Circuit 12
Transistors 28
16 Channel preset Hiodes 60
Mains Input AC 240V 50Hz Posistor ]
Power Consumption 95W Cabinet Dimensions 23-7/8''(W)x15-3/4'(H)x18-1/8"(D)
Aerial Input 7§ ohm 606mm 400mm 460mm
Convergence
Dynamic convergenceless
Weight
25.0 kg (55.1 Ibs)
Intermediate Video 39 SMHz Special Features °90° In-line, High-fidelity, High-contrast
Frequency Sound | 33.5MHz picture tube (Blue Diamond Tube)
Colour sub-carrier 35.07MHz * Voltage Synthesizer tuning system.
. e 24 Function direct access remote
Intercarrier Frequency 6.0MHz control system,
Audio Output 25 ¢ l-chip Video/Chroma IC;
Speaker 4°(10cm) a type, 82 ; VIF circuit with SAW (Surface
1-5/8" (4cm) ° Acoustic Wave) Filter; Hybrid
Round type, [Tweeter] IC power regulator;.IC sound output
Picture Tube
5S10ABCB22P 20" 90° Deflection
New jungle IC deflection circuit
% Pin cushion distortion free ¢ [Optional] Video IN/OUT and Audio IN/OU"
facility (For VCR)
MITSUBISHI ELECTRIC (U.K) LTD.
OTTERSPOOL WAY, WATFORD, HERTS. WD2 SLD
