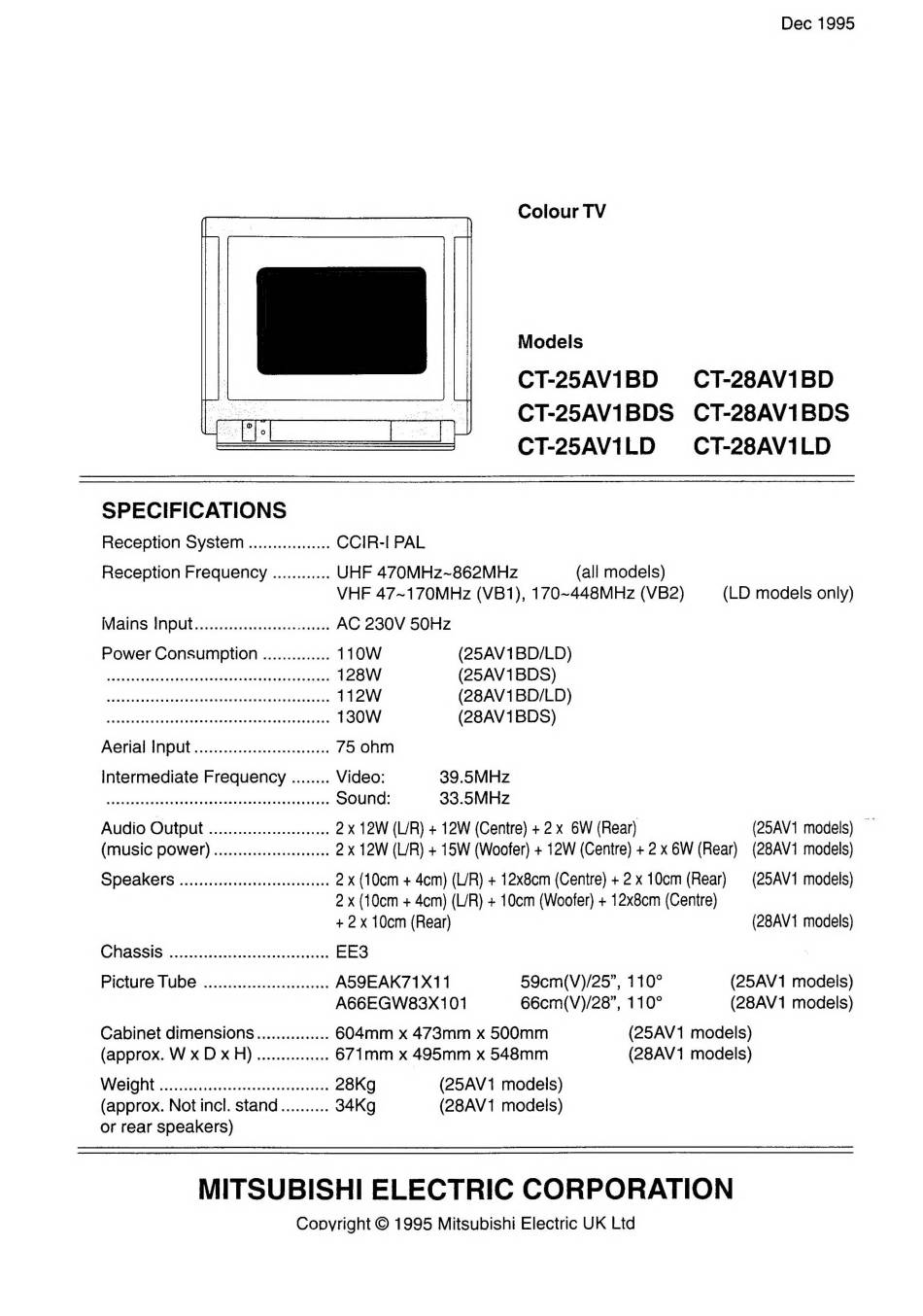

Mitsubishi Electric CT-25AV1BD Manual

SPECIFICATIONS
Reception System
Bester eeeeseetnwnese
Reception Frequency
Mains Input............ccccccccesesees
Power Consumption ..............
eee RarPanweseteee eon eee eee ee eee eee eee eee ee
euneaenaeseuanueneateev eee eneeneewnenenaneeneneeounsan
Aerial Input
Intermediate Frequency
Audio Output
(music power)
Speakers
ernuee ene ase eeas ene Rete see ee eee wees
Chassis
Picture Tube
Cabinet dimensions
(approx. W x D x H)
Weight
(approx. Not incl. stand
or rear speakers)
Dec 1995

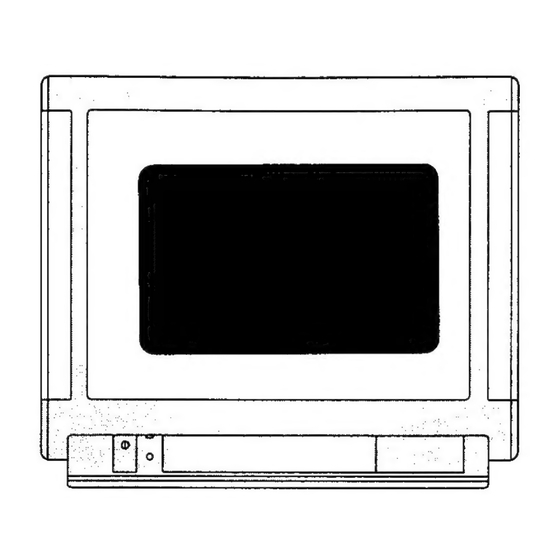

Colour TV
Models
CT-25AV1BD CT-28AV1BD
CT-25AV1iBDS CT-28AV1BDS
CT-25AViILD CT-28AV1LD
CCIR-I PAL
UHF 470MHz~862MHz (all models)
VHF 47~170MHz (VB1), 170~448MHz (VB2) — (LD models only)
AC 230V 50Hz
110W (25AV1BD/LD)
128W (25AV1BDS)
112W (28AV1BD/LD)
130W (28AV1BDS)
75 ohm
Video: 39.5MHz
Sound: 33.5MHz
2 x 12W (L/R) + 12W (Centre) + 2 x 6W (Rear)
2 x 12W (L/R) + 15W (Woofer) + 12W (Centre) + 2 x 6W (Rear) (28AV1 models)
2 x (10cm + 4cm) (L/R) + 12x8cm (Centre) + 2x 10cm (Rear) (25AV1 models)
2X (10cm + 4cm) (L/R) + 10cm (Woofer) + 12x8cm (Centre)
+ 2X 10cm (Rear) (28AV1 models)
EE3
A59EAK71X11 59cm(V)/25", 110° (25AV1 models)
A66EGW83X101 66cm(V)/28", 110° (28AV1 models)
604mm x 473mm x 500mm
671mm x 495mm x 548mm
28Kg (25AV1 models)
34Kg (28AV1 modeis)
(25AV1 models)
(28AV1 models)
MITSUBISHI ELECTRIC CORPORATION
Copyright © 1995 Mitsubishi Electric UK Ltd
(25AV1 models)
