Candeo Kinetic RF switches
and receivers

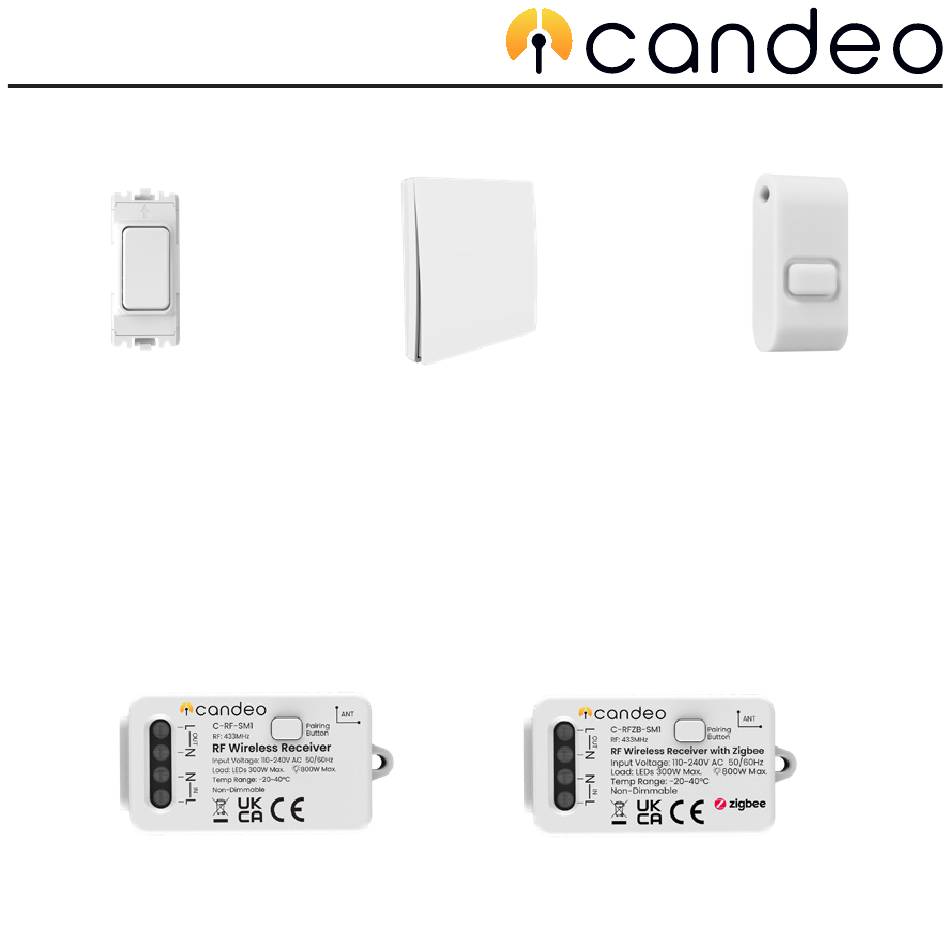

These instructions are for the following Candeo kinetic RF switches (the
transmitters):
C-RF-SSGR1-1CH
retractive grid switch
(1-RF-channel)
C-RF-SSGR1-2CH
centre-off-retractive
grid switch
2-RF-channels
And for the following Candeo RF switch modules (the receivers):
RF Receiver
Switch Module
1-gang paddle switch
2-gang paddle switch
C-RF-SM1
C-RF-SSP1-1G
C-RF-SSP1-2G
RF Receiver Switch
Module with Zigbee
C-RF-SSP1-1CH
1-channel remote fob
C-RF-SSP1-2CH
2-channel remote fob
C-RFZB-SM1
Advertisement
Related Manuals for Candeo C-RF-SSGR1-1CH
Summary of Contents for Candeo C-RF-SSGR1-1CH
- Page 1 Candeo Kinetic RF switches and receivers These instructions are for the following Candeo kinetic RF switches (the transmitters): C-RF-SSGR1-1CH C-RF-SSP1-1G C-RF-SSP1-1CH retractive grid switch 1-gang paddle switch 1-channel remote fob (1-RF-channel) C-RF-SSP1-2G C-RF-SSP1-2CH C-RF-SSGR1-2CH 2-gang paddle switch 2-channel remote fob...
- Page 2 Control Distance: 20m - 100m Receiver specifications • Each Candeo RF receiver can be paired to one or more of the Candeo kinetic RF switches (up to 10), and can switch a power source on and off. • Power Source: 110-240V AC, 50/60Hz •...
-
Page 3: Wiring The Receiver
Wiring the receiver Antenna Control button LED indicator Terminal screws AC Output (L+N) AC Input (L+N) to lights 1. Turn off the power. i. To avoid electrical shock and/or equipment damage, disconnect electrical power at the main fuse or circuit breaker before installation and maintenance ii. - Page 4 AC Output (L+N) AC Input (L+N) 2. Wire the receiver module according to the diagram shown below, taking to lights care to ensure that you follow the labels as marked on the device. (Live and Neutral.) 3. Ensure that your receiver module is safely housed and insulated.
- Page 5 Note: Each receiver can be paired with up to 10 kinetic switches from across the Candeo range, including grid switches, paddle switches, and fobs. Repeat the process above, for each new switch you wish to pair with the receiver.
- Page 6 Note: The following section is applicable to receiver C-RFZB-SM1 only, which also supports zigbee. The Candeo C-RFZB-SM1 receiver can also be paired with your zigbee hub, to integrate further into your smart home ecosystem. Note: We recommend that you use the Candeo drivers for optimal control.
- Page 7 Pairing the receiver to your zigbee hub/bridge 1. Press and hold the Control Button on the receiver for 10-15 seconds to clear any previous zigbee network pairing information, and to simultaneously put the device in pairing mode. 2. Follow the instructions of your smart home system to add a new device. (For Philips Hue, select to add a Light).
- Page 8 Hereby, Candeo Smart Ltd declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.candeo.io/support Hereby, Candeo Smart Ltd declares that the radio equipment type is in compliance with S.I.2017/1206.
