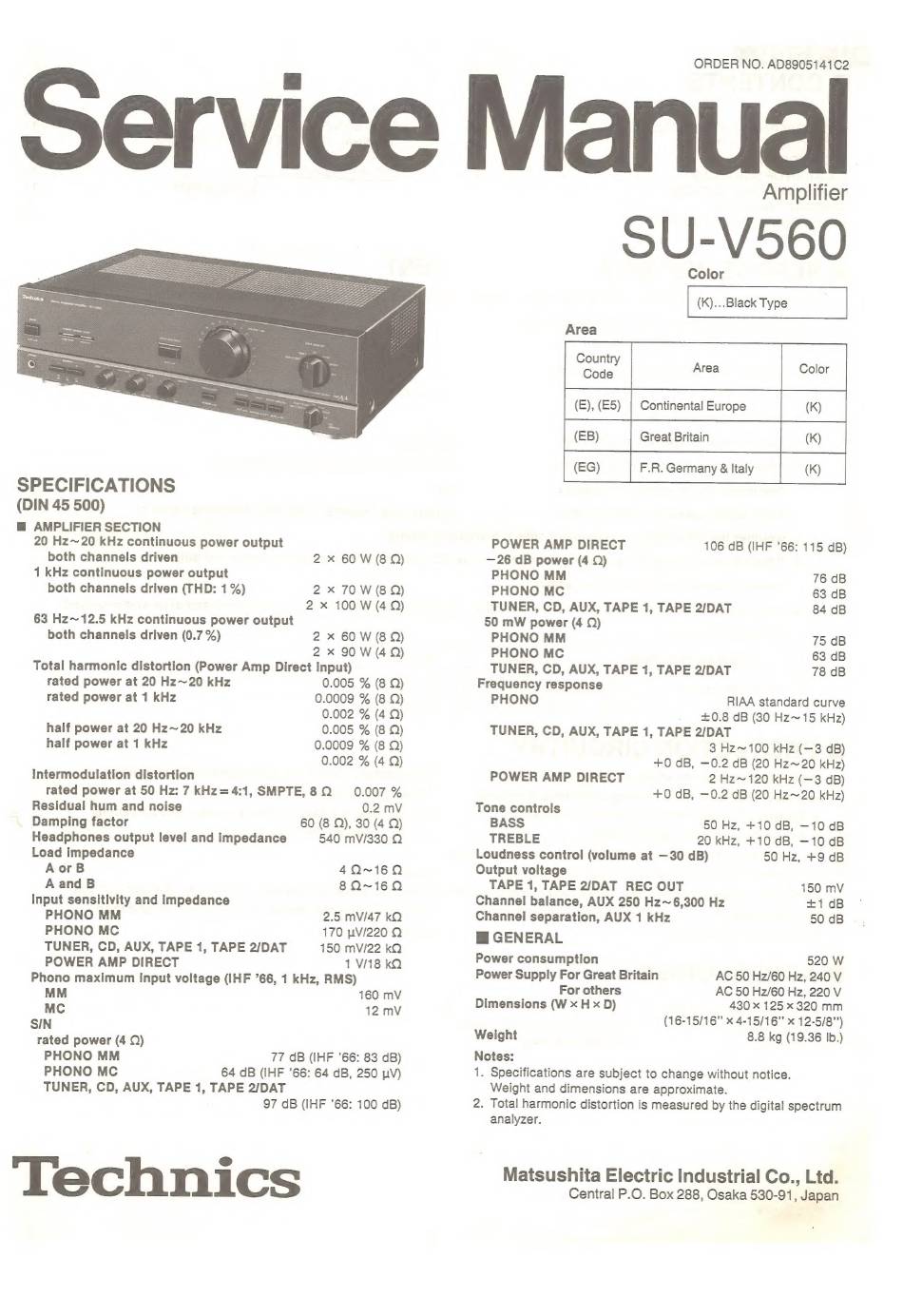

Technics SU-V560 Service Manual
Hide thumbs Also See for SU-V560:

Advertisement

ORDER NO. AD8905141C2
SPECIFICATIONS
(DIN 45 500)
@ AMPLIFIER SECTION
20 Hz~20 kHz continuous power output
both channels driven
2 x 60 W (8 Q)
1 kHz continuous power output
both channels driven (THD: 1%)
2 x 70W(8Q)
2 x 100 W (4Q)
63 Hz~12.5 kHz continuous power output
both channels driven (0.7 %)
2 x 60 W(8Q)
2x 90W(4Q)
Total harmonic distortion (Power Amp Direct input)
rated power at 20 Hz~20 kHz
0.005 % (8 Q)
rated power at 1 kHz
0.0009 % (8 Q)
0.002 % (4 Q)
half power at 20 Hz~20 kHz
0.005 % (8 Q)
half power at 1 kHz
0.0009 % (8 Q)
0.002 % (4 Q)
Intermodulation distortion
rated power at 50 Hz: 7 kHz= 4:1, SMPTE,8Q
0.007 %
Residual hum and noise
0.2 mV
Damping factor
60 (8 Q), 30 (4 Q)
Headphones output level and impedance
540 mV/330 Q
Load impedance
AorB
4Q~16Q
A and B
8Q~1602
Input sensitivity and impedance
PHONO MM
2.5 mV/47 kQ
PHONO MC
170 pV/220 Q
TUNER, CD, AUX, TAPE 1, TAPE 2/DAT
150 mV/22 kQ
POWER AMP DIRECT
1 V/18 kQ
Phono maximum
input voltage (IHF '66, 1 kHz, RMS)
MM
160 mV
MC
12 mV
S/N
rated power (4 ©)
PHONO MM
77 dB (IHF '66: 83 dB)
PHONO MC
64 dB (IHF '66: 64 dB, 250 pV)
TUNER, CD, AUX, TAPE 1, TAPE 2/DAT
97 dB (IHF '66: 100 dB)
Technics
Amplifier
SU-V560
Color
| (K)...Black Type
Area
Country
Gods
Area
(E), (ES)
Continental Europe
(EB)
Great Britain
(EG)
F.R. Germany & Italy
+0.8 dB (30 Hz~15 kHz)
TUNER, CD, AUX, TAPE 1, TAPE 2/DAT
3 Hz~100 kHz (—3 dB)
+0 dB, —0.2 dB (20 Hz~20 kHz)
POWER AMP DIRECT
2 Hz~120 kHz (—3 dB)
+0 dB, —0.2 dB (20 Hz~20 kHz)
Tone controls
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
