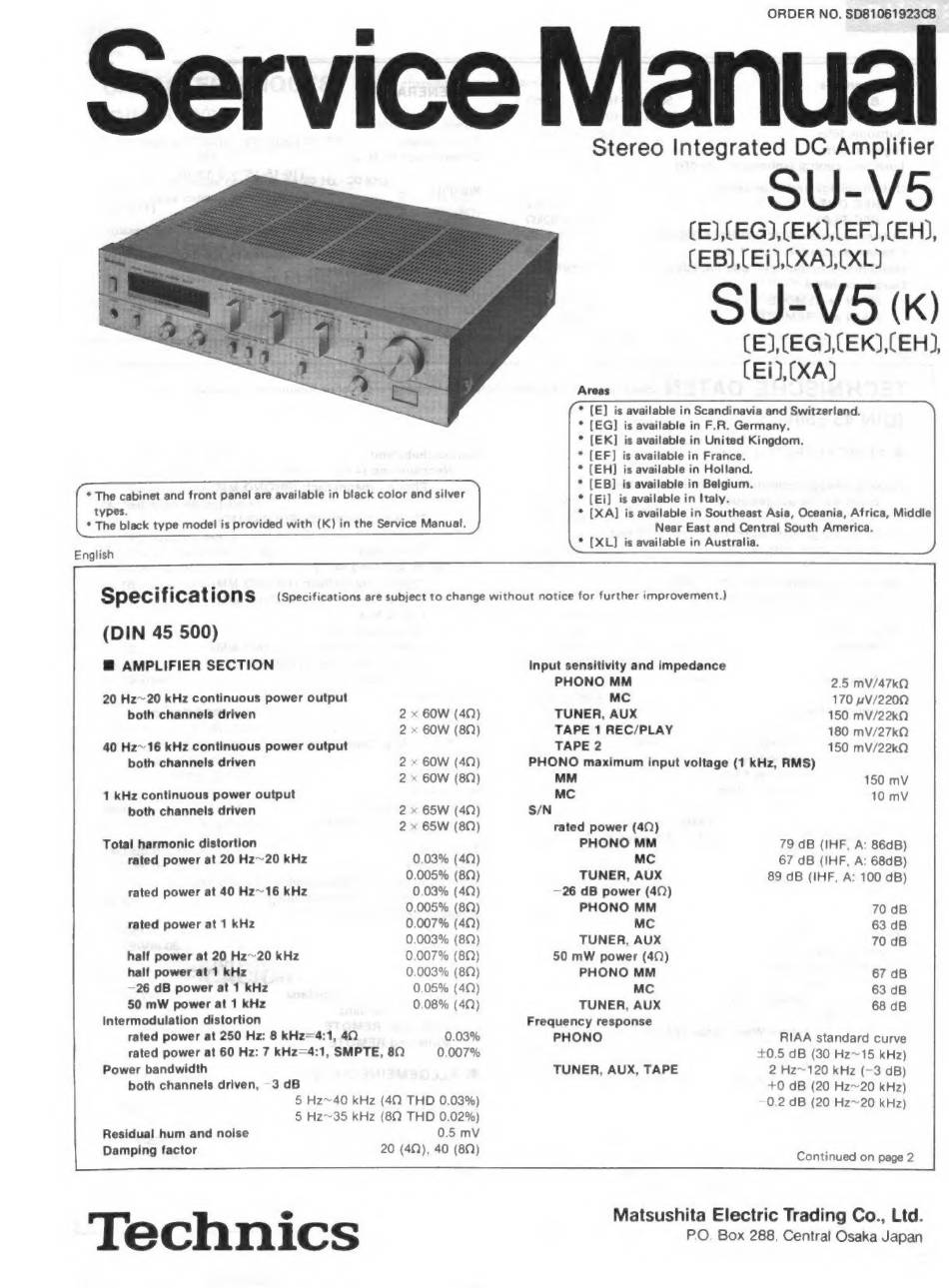

Technics SU-V5 Service Manual

ORDER NO. SD81061923C8
Stereo Integrated DC Amplifier
SU-V5
(E),CEG),(EK),CEF),CEH),
(EB),CEi),CXA),(XL)
SU-V5 (k)
(E),(EG),CEK),CEH),
(Ei), (XA)
* [E] is available in Scandinavia and Switzerland.
* [EG] is available in F.R. Germany.
* [EK] is available in United Kingdom.
* [EF] is available in France.
* (EH) is available in Holland.
* [EB] is available in Belgium.
* [Ei] is available in Italy.
* [XA] is available in Southeast Asia, Oceania, Africa, Middle
Near East and Central South America.
* [XL] is available in Australia.
* The cabinet and front panel are available in black color and silver
types.
* The black type model is provided with (K) in the Service Manual.
English
(DIN 45 500)
@ AMPLIFIER SECTION Input sensitivity and impedance
PHONO MM 2.5 mV/47kQ
20 Hz~20 kHz continuous power output MC 170 wV/2200
both channels driven 2 x BOW (49) TUNER, AUX 150 mV/22kQ
2 x 6OW (80) TAPE 1 REC/PLAY 180 mV/27kQ
40 Hz~16 kHz continuous power output TAPE 2 150 mV/22kQ
both channels driven 2 « BOW (40) PHONO maximum input voltage (1 kHz, RMS)
2 x BOW (8Q) MM 150 mV
1 kHz continuous power output MC 10 mV
both channels driven 2 x 65W (40) S/N
x 65W (8) rated power (40)
Total harmonic distortion PHONO MM 79 dB (IHF, A: 86dB)
rated power at 20 Hz~20 kHz
0.03% (49)
MC
67 dB (IHF, A: 68dB)
0.005% (8) TUNER, AUX 89 dB (IHF, A: 100 dB)
rated power at 40 Hz~16 kHz 0.03% (4) —26 dB power (40)
0.005% (8) PHONO MM 70 dB
rated power at 1 kHz 0.007% (49) MC 63 dB
0.003% (8Q) TUNER, AUX 70 dB
half power at 20 Hz~20 kHz 0.007% (8) 50 mW power (41)
half power at 1 kHz 0.003% (8) PHONO MM 67 dB
-26 dB power at 1 kHz 0.05% (4) MC 63 dB
50 mW power at 1 kHz 0.08% (4) TUNER, AUX 68 dB
Intermodulation distortion Frequency response
rated power at 250 Hz: 8 kHz=4:1, 40 0.03% PHONO RIAA standard curve
rated power at 60 Hz: 7 kHz=4:1, SMPTE, 80 0.007% +0.5 dB (30 Hz~15 kHz)
Power bandwidth TUNER, AUX, TAPE 2 Hz~120 kHz (-—3 dB)
both channels driven, -3 dB +0 dB (20 Hz~20 kHz)
5 Hz~40 kHz (4Q THD 0.03%)
0.2 dB (20 Hz~20 kHz)
5 Hz~35 kHz (8Q THD 0.02%)
Residual hum and noise 0.5 mV
