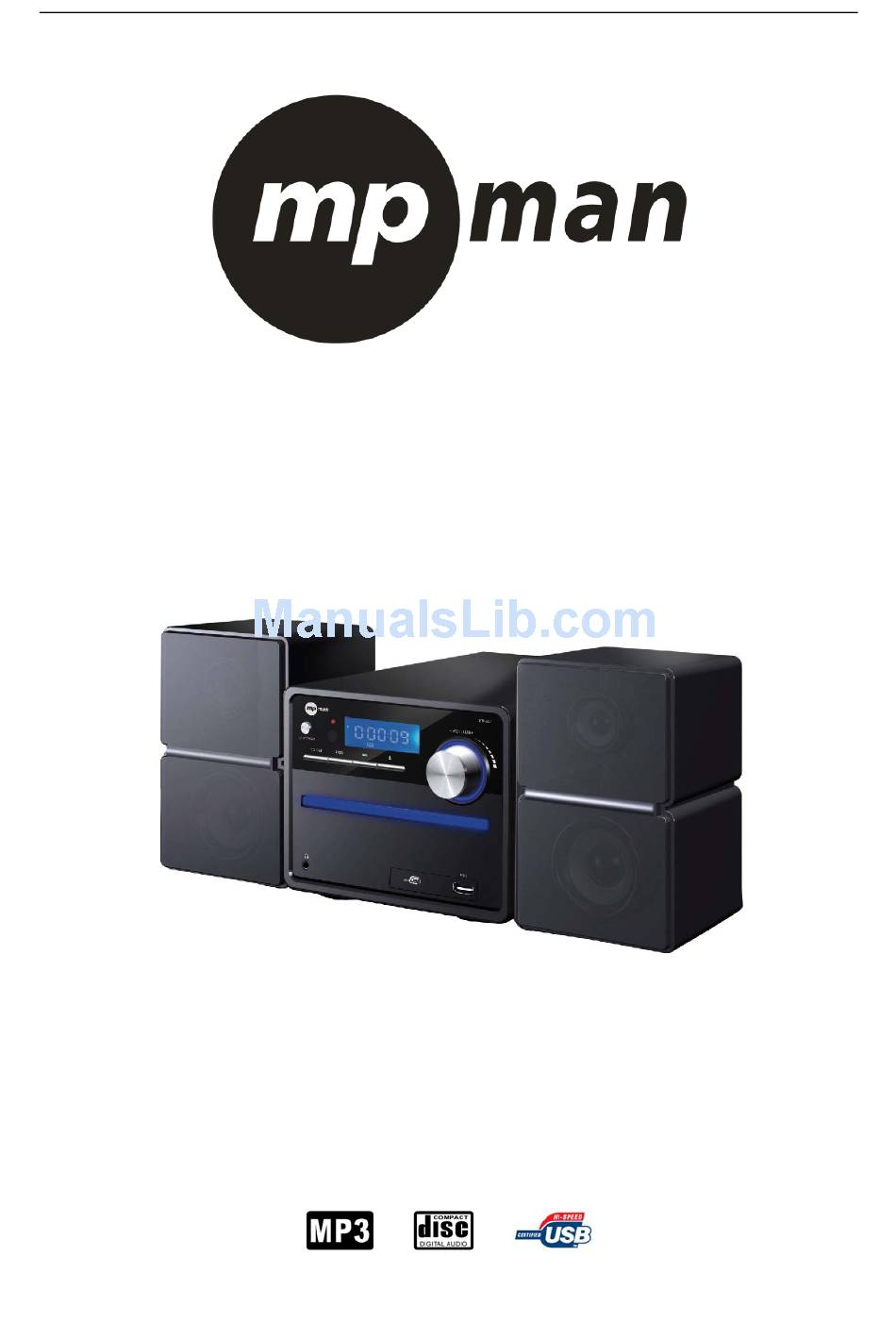

- Page 1 XR-M7 CD MP3 MICROSYSTEM WITH USB READER USER MANUAL Please read and keep these instructions...
- Page 2 Important safety instructions – please read carefully and keep for future reference To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product.
- Page 3 Electric supply Please unplug the product in case of prolonged non-use. If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger. This product must be connected to an electrical supply 230V ~ 50Hz. The plug must be accessible after installation.
-
Page 4: List Of Main Parts
INTRODUCTION Thank you for choosing this Schaub Lorenz product. Here are the main characteristics of your new microsystem: ‐ Equipped with a digital PLL tuner, you can easily search and memorize FM radios, ‐ With its compact with elegant design, this Hi-Fi system can easily find its place at home and be installed in just a couple of minutes, ‐... - Page 5 1、POWER ON/OFF 7、VOL ADJUST 2、CD/FM 8、USB 3、USB 9、REMOTE CONTROL SENSOR 4、PLAY/PAUSE(AUTO) 10、DISPLAY 5、OPEN/CLOSE 11、EARPHONE JACK 6、CD DOOR 12、Amplifier Output 13、FM antenna...
- Page 6 1. Standby 2. Number key 3. Mute 4. Random 5. Back/Forward 6. CD/FM 7. BASS 8. AUTO 9. TREBLE 10. Open/Close 11. EQ 12. Program 13. Repeat 14. CH+/- 15. SEEK+/- 16. Next / Prev 17. CD/USB 18. Vol+/- 19. Save 20.
-
Page 7: Install The Remote Control Battery
INSTALL THE REMOTE CONTROL BATTERY 1. Remove the battery door. 2. Install 2pc ``AAA`` battery into the battery bracket (batteries not provided). Make sure that the + symbol is respected 3. Close the battery door. Note: 1. Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. - Page 8 MUTE In play status, If the MUTE button is pressed, there will be no audio output, the sound is eliminated. Then press this button again or press VOL+/- buttons to exit the mute status, the sound resumes to be its normal status. FAST REWIND / FAST FORWARD While playing the CD disc, press the button or...
-
Page 9: Playing Usb
BASS/TREBLE In play status, press the BASS and TREBLE button on the remote control , and then press VOL-/+ to adjust the BASS and TREBLE value. This function provides a better quality of BASS and TREBLE sound. PLAYING USB Press the “CD/USB” button to switch to CD / USB playback. NOTE: If in FM mode ,please press CD/FM first to switch to CD mode before switch to USB Connecting a USB device 1) Insert a USB key inside the connector. -
Page 10: Specification
select the 15th band. Press the CH- or CH+ button, the band will be switched up or down. 3) Automatically search bands: press the AUTO button, this unit will start to search bands from the lowest part to highest part automatically. Meanwhile the searched bands will be saved orderly. Press the button again to stop searching. - Page 11 Audio cable not connected or not Connect the cable as the sound from conn ected securely diagram loudspeaker The volume is in the lowest status Turn the volume up Use a piece of clean and Disc not clean soft cloth to clean the disc Discontinuous sound Disc scratched Replace the disc with a...
