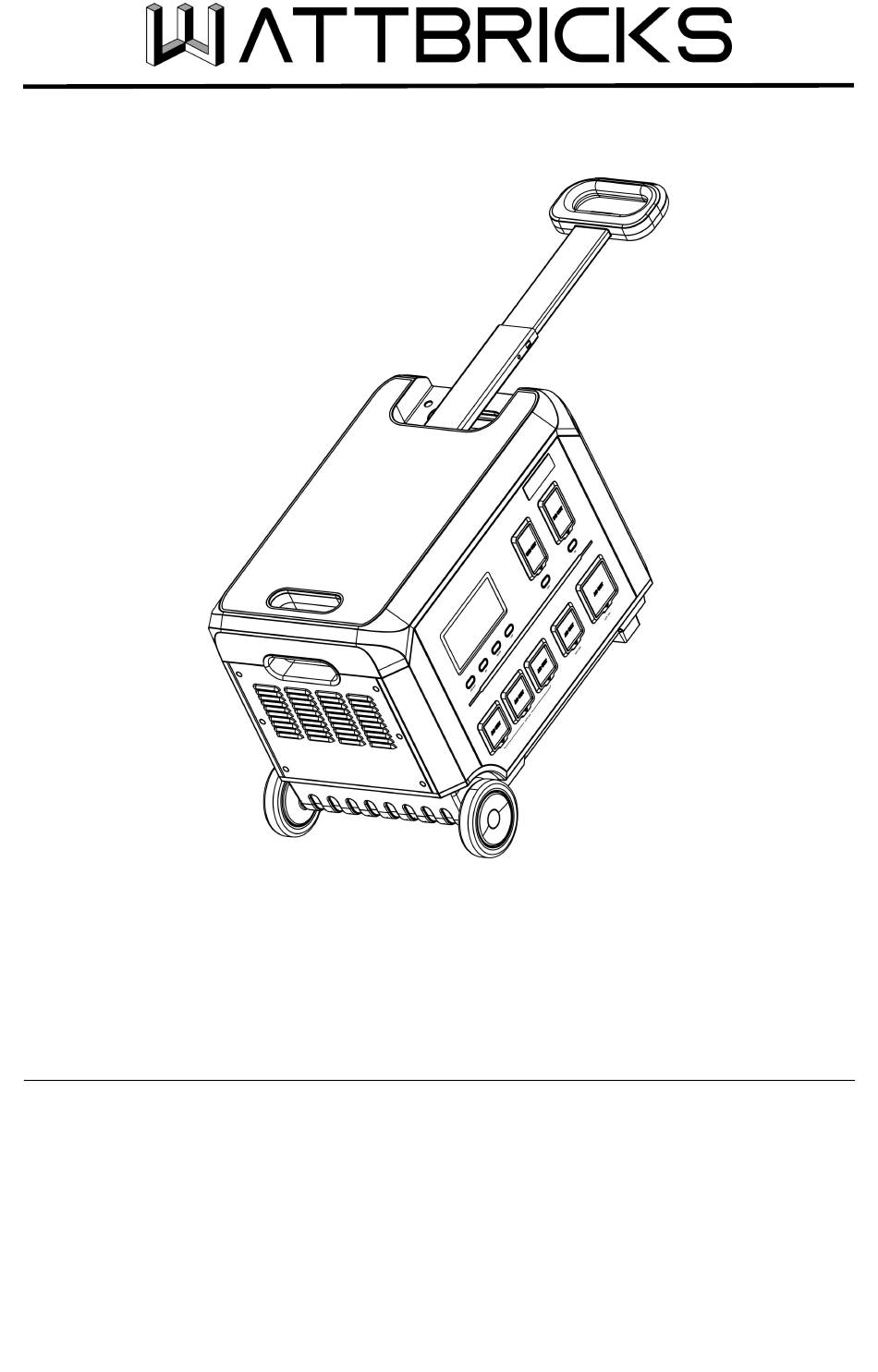

WF3600
USER MANUAL
Thank you for purchasing WF3600 Series high quality power station
To ensure your personal safety, Property safety and good user experience, Please read
this User Manual carefully before operation and keep it for future reference.
⚠ Charging instructions
Before using your new Power Station WF3600 Series, plug it into a suitable power outlet
until it is fully charged. Then you can start your exciting journey with it.
Advertisement
Table of Contents
Related Manuals for WATTBRICKS WF3600 Series
Summary of Contents for WATTBRICKS WF3600 Series
- Page 1 User Manual carefully before operation and keep it for future reference. ⚠ Charging instructions Before using your new Power Station WF3600 Series, plug it into a suitable power outlet until it is fully charged. Then you can start your exciting journey with it.
-
Page 2: Safety Instructions
⚠ WARNING Please read the following instructions for safety before use. Improper use may result in fire, property damage or personal injury or death. DO NOT use the product with incompatible components or alter the product in any way. ⚠ WARNING ⚠... -
Page 3: Table Of Contents
CONTENTS PRODUCT INTRODUCTION ................. 1 PRODUCT FUNCTION DESCRIPTION ..............1 BUTTON INDICATOR .....................2 LCD DISPLAY ......................3 LIST OF FAULT CODES ..................5 FULL PARALLEL INTEGRATION ................6 INTELLIGENT POWER COMBINING FUNCTION DESCRIPTION ...... 6 ... -
Page 4: Product Introduction
PRODUCT INTRODUCTION WF3600 Series with high capacity and high safety battery pack. It is very convenient for emergency off-grid demand such as sudden power failure, snowstorm or hurricane, outdoor tourism, outdoor operation, RV power supply, etc. There is perfect performance with great power output up to 3600W, fast charging, high capacity and long cycle life. -
Page 5: Button Indicator
BUTTON INDICATOR Button ㉒Power ON/OFF Press button ㉒ to turn on or turn off the equipment. Button ㉓ AC Output Before press button ㉓ to turn on, please make sure the "Power ON/OFF" is ON first. To stop Output, press ㉓ again. Button ㉔... -
Page 6: Lcd Display
LCD DISPLAY Displays the current battery level in the form of energy circle + percentage. The main switch is turned on and the battery quantity is displayed. During the charging process, the energy Battery Level circle is displayed dynamically. ⓐ... - Page 7 When the Cigarette Lighter Socket Output is turned on, the icon DC Output: lights up and shows the total power used by the DC output, the ⓛ current remaining time and frequency. Wireless (Not available yet) When the wireless charge output, this label is ⓜ...
-
Page 8: List Of Fault Codes
LIST OF FAULT CODES Fault Significance solutions code Battery over voltage Please disconnect the charging cable and stop charging Battery under voltage Please disconnect the output and charge the device Please disconnect the output and wait 1-2 hours before Inverter overheating operation Abnormal input voltage... -
Page 9: Full Parallel Integration
FULL PARALLEL INTEGRATION The Smart parallel HUB (optional accessory) doubles the capacity and power of the WF3600 host. Plug and play technology allows you to easily connect two WF3600 hosts together. Step 1: The super interface connecting two hosts using the Smart parallel HUB. Step 2: Output AC power through the Smart parallel HUB port. - Page 10 Each host contains four battery packs Two hosts with eight battery packs Charging sequence, first charge the host, after the host is fully charged, and then charge the intelligent battery pack. Discharge sequence: discharge from the intelligent parallel battery pack first, and then discharge from the host.
-
Page 11: Charging Function Description
CHARGING FUNCTION DESCRIPTION Charging Description When charging, the LCD screen will be lit, the LCD display will provide real-time display data of battery charging, and the device will display 100% when it is fully charged. It is recommended to fully charge the device every 3 months to maintain the life of the device. From AC charging 1800W, 2.0-3.1 hours From Solar panel PV charging... - Page 12 12V car charging Use our car charging cable to charge. It takes 37-58 hours to fully charge. When the LCD shows that the battery power is 100%, it means that the battery is fully charged. Solar PV charging Support 120W/200W/300W/400W/600W/800W solar panel charging, the charging time is determined by the sunlight intensity.
-
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS General parameters Battery Type Lithium Iron Phosphate Rated Capacity 51.2V, 60Ah/3072Wh Net Weight ≈46kg Product Size 563 mm*372 mm*423 mm Operating Temp 14 to 104℉ (-10 to 40℃) Charging Temp 32 to 104℉ (0 to 40℃) -4 to 113℉ (-20 to 45℃) Storage Temp Input AC Input Voltage... -
Page 14: Load Capacity
LOAD CAPACITY Smartphone (20Wh) Drone model (90Wh) Auto-CPAP (60W) Blender (350W) Impact Drill (750W) 130 Recharges 29 Recharges 43.5 Hours 7.5 Hours 3.5 Hours +MORE Coffee Maker Electric Grill Microwave (1200W) A/C (8000BTU) (1000W) (1650W) 2.2 Hours 1.1 Hours 2.6 Hours 1.6 Hours ⚠... -
Page 15: Operating Instructions
OPERATING INSTRUCTIONS Power output attention Press output switch to select the desired outlet type. The output port must press the corresponding button to activate the port. When activated, the LCD display will turn on and provide detailed information about the charging output. When no output is activated, the LCD screen will automatically turn off. - Page 16 Power saving sleep mode ①No charging (AC input + PV), no discharging (DC + USB + AC). When charging is not connected and only the main switch is turned on: sleep after 5 minutes. ②Any charging is connected (regardless of whether there is power), and it does not sleep. ③Without any charging input,USB <5W, DC <5W, AC <25W, three conditions are met at the same time, and sleep after a delay of 8 hours.
-
Page 17: Transport Instructions For Dangerous Goods
⚠ The WF3600 Series power station meets all legal requirements for the transportation of dangerous goods. The capacity of the lithium battery pack exceeds 100Wh. According to international standards, if the power station is transported by air, it must be transported in accordance with IATA standard packaging. -
Page 18: Product Maintenance
PRODUCT MAINTENANCE Maintenance Check as needed. If the WF3600 Series power station cannot working regularly, please charge and discharge it every 3 months under normal temperature to keep the service life. Regularly check all ports and wall chargers for any debris, dirt, damage, and corrosion. -
Page 19: Warranty
Exclusions The warranty of WF3600 Series does not apply to 1) any product that is modified, misused, abused, damaged by accident, or used for anything other than normal consumer use as authorized in current product literature or 2) any product purchased through an online auction house. - Page 20 —— www.wattbricks.com —— WATTBRICKS is an American Company with US Based Customer Service. Please reach out to us at support@wattbricks.com so we can answer any questions or resolve any issues. Thank you for purchasing our products! F3600PXIM V1.1.01...
