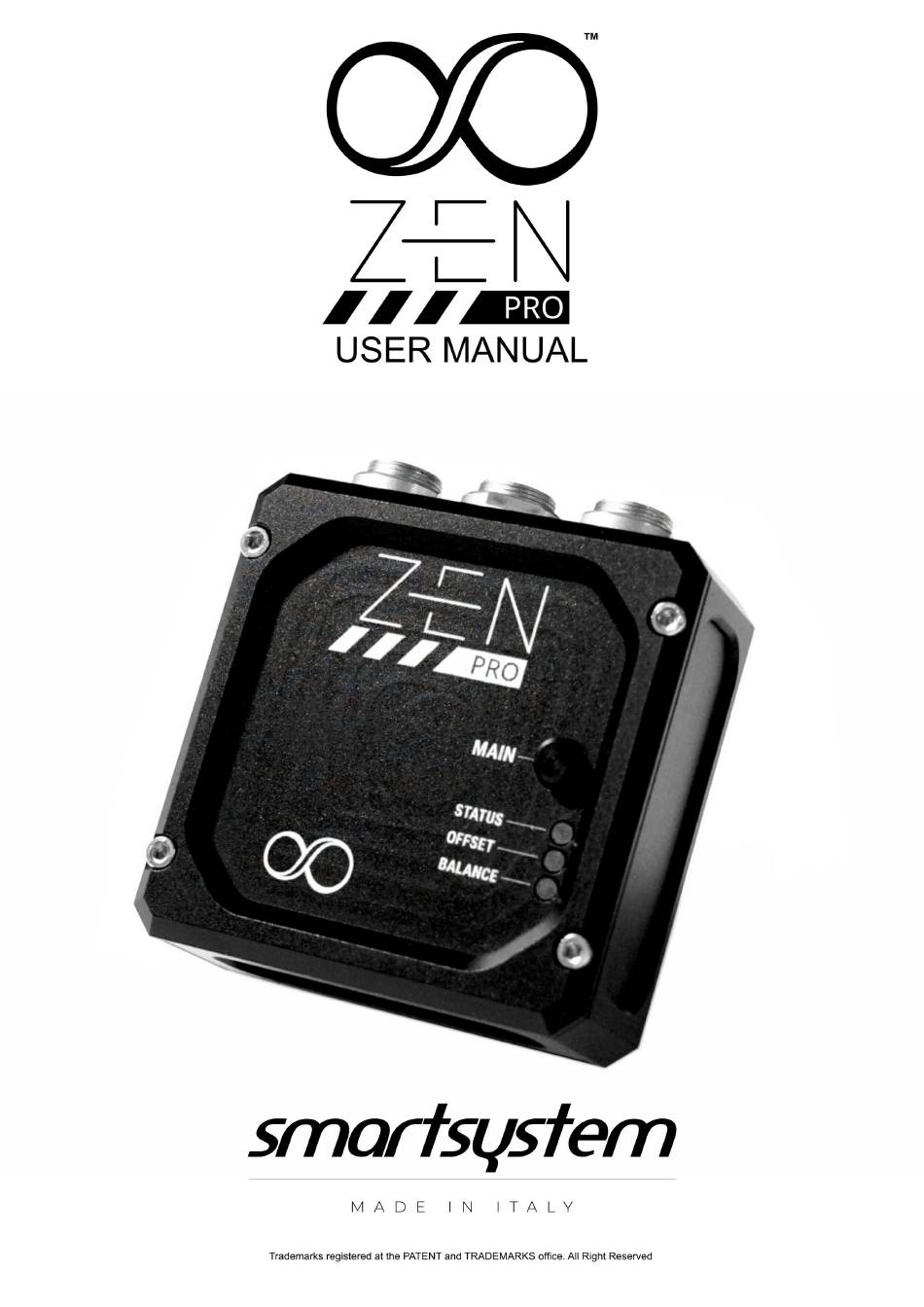

SmartSystem Zen PRO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
v.2.1
v1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zen PRO and is the answer not in the manual?

Questions and answers

Related Manuals for SmartSystem Zen PRO

Summary of Contents for SmartSystem Zen PRO

  • Page 1 v.2.1 v1.0...

  • Page 2: Table Of Contents

    General Index Safety................................. 3 Packing List............................... 4 Specs................................. 4 SmartCAM Zen PRO Overview......................... 5 Register the product on SmartSystem Care Platform................5 XTBus connection............................5 Mounting Zen PRO on your sled........................ 6 Powering Zen PRO............................ 8 Turning on Zen PRO..........................8 Booting process............................

  • Page 3: Safety

    Do not use a power supply different from the one provided with the product, if provided • In case of failure, the Zen PRO must be repaired only by qualified staff, authorized by SmartSystem Srl. • Do not remove any part or disassembly the SmartCAM Zen PRO. There are no reusable parts in the SmartCAM Zen PRO •...

  • Page 4: Packing List

    • Working Environmental Humidity: 10% ~ 80% • Weight : 120grams / .26lbs IN THE CASE OF MALFUNCTION OF THE Zen PRO, CONTACT AN AUTHORIZED SMARTSYSTEM TECHNICIAN. DO NOT OPEN YOUR Zen PRO IN ORDER TO MAKE QUICK AND MAKESHIFT REPAIR.

  • Page 5: Smartcam Zen Pro Overview

    NOTE : It is suggested to browse the link above via a PC or Mac browser avoiding mobile devices. XTBus connection The Zen PRO is among the first devices to comply with XTBus standards. Since XTBus transmits both data and power to connected devices, it is strongly recommended to adhere to the following guidelines when interconnecting devices: 1.

  • Page 6: Mounting Zen Pro On Your Sled

    Mounting Zen PRO on your sled The Zen PRO is equipped with an automatic orientation detection system that enables it to reconfigure the sensor for optimal performance. This feature ensures accurate indication of roll, tilt, and side-to-side acceleration. The Zen PRO can be natively mounted on 15mm rods in the following configurations.
  • Page 7 It is important to keep the Zen PRO as aligned as possible once an orientation is chosen. Minor misalignments of up to +/-10° are compensated for by the internal algorithm.

  • Page 8: Powering Zen Pro

    Note: With a custom attachment, the Zen PRO can also be mounted directly at the rear of your sled's post, aligned with the post with the connectors facing either up or down. For more information, please contact the SmartSystem technical department.

  • Page 9: Booting Process

    RED as reported in the following paragraph. Interaction with Zen PRO The main button is the sole means of interacting with the Zen PRO. Its use is extremely simple and straightforward, as demonstrated in the tables below, subdivided by short and long press.

  • Page 10: Status Led

    (See Par.11) Zero Offset Setup and Offset LED behavior The Zen PRO allows users to zero it at any angle when mounted in the positions outlined in Paragraph 8 within an angular offset of max +/- 10°.

  • Page 11: Balance Led

    In Normal mode (Par. 12), the Balance LED indicates the temperature status of both sensors inside the Zen PRO. The Zen PRO is the first digital level indicator that provides its sensors with a controlled temperature environment, essential for ensuring reading stability and optimal performance.

  • Page 12: Firmware Upgrade

    Burner software is compatible with XTDevices only from release 3.x onwards. Since Zen PRO is an XTBus device, is it possible to connect it to a standard PC or Mac via the XTDongle in bundle with the product. In order to verify and upload a new firmware to your Zen PRO 1.

  • Page 13: Warranty

    Warranty SmartSystem Srl headquarter is located in Via del Commercio, 22F, 61032 FANO(PU), ITALY. Smartsystem main brand and all the other brands associated with it are property of SmartSystem Srl. Your SmartSystem equipment is guaranteed against any manufacturing or material defects for 12 months from the date of delivery to the customer.
