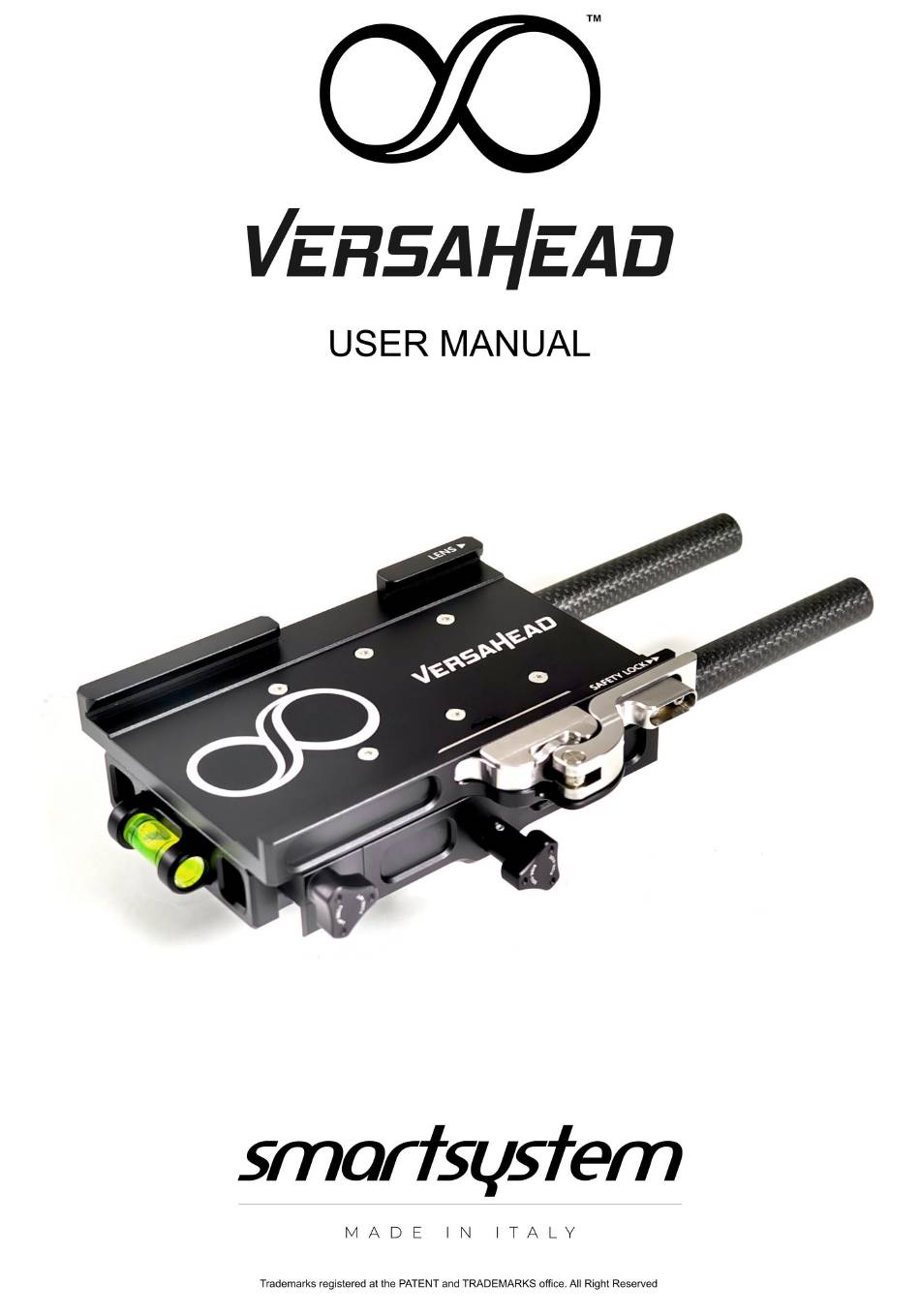

- Page 1 v.1.0...
-
Page 2: Table Of Contents
Main Index Safety................................. 3 Packing List............................... 3 Matrix sled installation..........................3 Locking system............................6 Adjusting VersaHead for Third-Party Plates....................8 Maintenance..............................9 Disposal..............................9 Warranty..............................9... -
Page 3: Safety
• Do not use a power supply different from the one provided with the product. • In case of failure, VersaHead must be repaired only by qualified staff, authorized by SmartSystem Srl. • Due to the constant effort of product improving, SmartSystem reserve the right to... - Page 4 Step 2 : Gently remove the Standard Camera Plate Bracket Step 3 : Moving via side-to-side and fore-aft, make sure the highlighted holes are aligned Step 4 : Make sure the previously highlighted holes are aligned on the counter part on Matrix sled and insert the 4x M5 screws tighten them with Hex 3 key...
- Page 5 Step 5 : Move sure that everything works testing side-to-side and fore-aft movements Step 6 : Reinstall the Standard Camera Plate Bracket securing it via 6x M3x12 using TX10 key Step 7 : Enjoy your new VersaHead topstage...
-
Page 6: Locking System
To disengage a Camera Plate, just follow these simple passages: Simultaneously slide the Safety Lock (indicated in orange) and rotate the Locking Lever (highlighted in yellow) as illustrated. Keep rotating the Locking Lever as shown until it is perpendicular to the side of the VersaHead. - Page 7 Even when the lever is fully disengaged, the plate locking carriage remains in a position that allows the camera plate to move while still keeping it securely engaged. To fully disengage the locking carriage, use the Safety Lock as indicated in orange.
-
Page 8: Adjusting Versahead For Third-Party Plates
Achieving the ideal fit with third-party plates can require meticulous adjustments. To ensure a secure connection, mount the plate onto VersaHead, engage the locking lever fully, and verify that both the lever is completely closed and the plate is firmly secured in place. -
Page 9: Maintenance
Maintenance Do not use alcohol of other solvents nor detergents to clean your VersaHead. To clean metal components, we recommend you to use a paper towel lightly soaked in distilled water. Make sure no water drops reaches the inside components of VersaHead.
