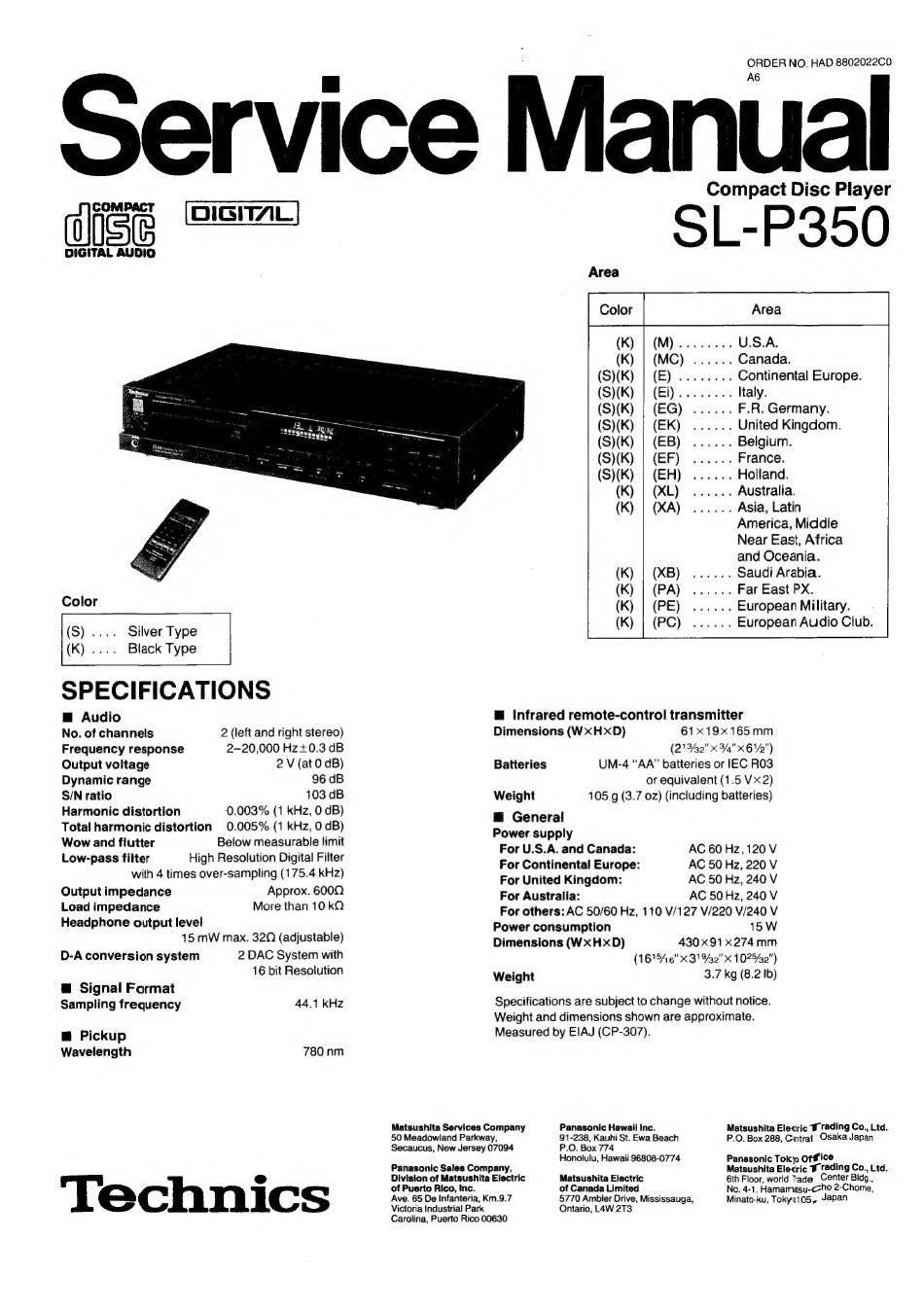

Technics SL-P350 Service Manual

ORDER NO. HAD 8802022C0 ual
Compact Disc Player
COMPACT
DIGITAL.
DIGITAL AUDIO
SL-P350
(K) | (MC) ...... Canada.
(S)(K) | (E) ........ Continental Europe.
(S)(K) | (Ei)........ Italy.
(S)(K) | (EG) ...... F.R. Germany.
(S)(K) | (EK) ...... United Kingdom.
(S)(K) | (EB) ...... Belgium.
(S)(K) | (EF) ...... France.
(S)(K) | (EH) ...... Holland.
(K) | (XL) ...... Australia.
(K) | (XA) ...... Asia, Latin
America, Middle
Near East, Africa
and Oceania.
(K) | (XB) ...... Saudi Arabia.
(K) | (PA) ...... Far East PX.
(K) | (PE) ...... European Military.
Silver Type (K) | (PC) ...... European Audio Club.
Black Type
SPECIFICATIONS
@ Audio @ Infrared remote-control transmitter
No. of channels
Frequency response
2 (left and right stereo)
2-20,000 Hz+0.3 dB
Dimensions (WxHxD)
61x19x165mm
(2193%32" x V4" X62")
Output voltage 2 V (at 0 dB) Batteries UM-4 "AA" batteries or IEC RO3
Dynamic range 96 dB or equivalent (1.5 Vx 2)
S/N ratio 103 dB Weight 105 g (3.7 oz) (including batteries)
Harmonic distortion
0.003% (1 kHz, 0 dB)
@ General
Total harmonic distortion 0.005% (1 kHz, 0 dB)
Wow and flutter Below measurable limit
Low-pass filter High Resolution Digital Filter
with 4 times over-sampling (175.4 kHz)
Output impedance Approx. 600Q
Load impedance More than 10 kQ
Headphone output level
15 mW max. 32Q (adjustable)
D-A conversion system 2 DAC System with
16 bit Resolution
@ Signal Format
Sampling frequency 44.1 kHz
m@ Pickup
Wavelength 780 nm
Technics
Power supply
For U.S.A. and Canada:
For Continental Europe:
For United Kingdom:
For Australia:
AC 60 Hz, 120 V
AC 50 Hz, 220 V
AC 50 Hz, 240 V
AC 50 Hz, 240 V
For others: AC 50/60 Hz, 110 V/127 V/220 V/240 V
Power consumption
Dimensions (WxHxD)
Weight
15W
430x91x274mm
(161\/6"x31%2" x 10252")
3.7 kg (8.2 Ib)
Specifications are subject to change without notice.
Weight and dimensions shown are approximate.
Measured by EIAJ (CP-307).
