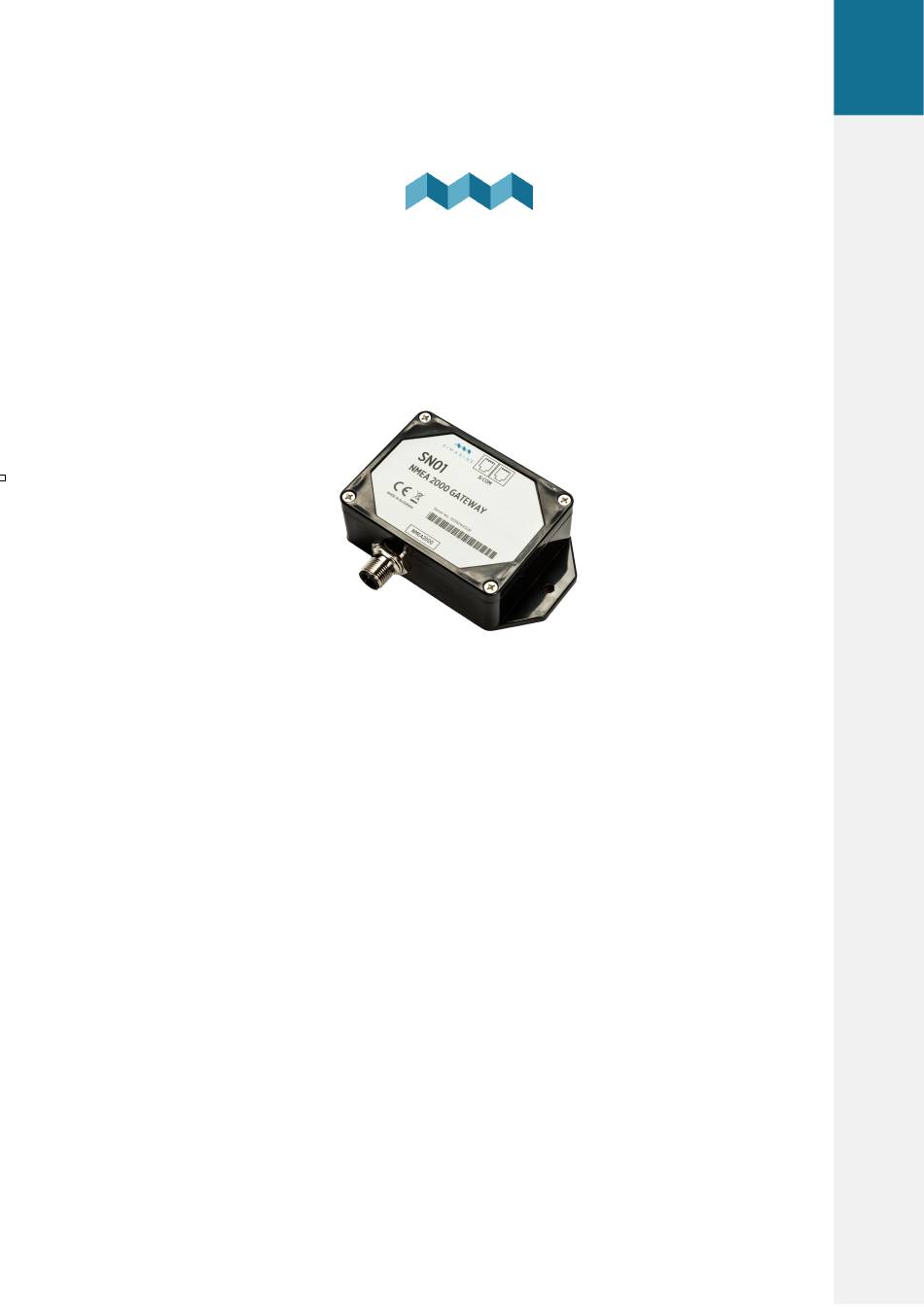

  • Page 1 S I M A R I N E ® SN01 N2K GATEWAY USER MANUAL V1.2...

  • Page 2: Table Of Contents

    Table of contents 1. Introduction 2. Safety 3. Schematics 4. Overview 5. List of supported N2K PGN 6. Installation Mounting ......................5 Cables ........................5 7. Connecting 8. Technical specifications...

  • Page 3: Introduction

    Introduction Simarine's SN01 SiCOM N2K Gateway module allows your PICO to transmit data. Safety Electrical specialists with proper safety equipment should make installation of Simarine electronics. When working with batteries, you should wear protective clothing and eye protection. CAUTION: Batteries contain acid, a corrosive, colorless liquid that will burn your eyes, skin, and clothing.

  • Page 4: Overview

    Overview A - 1x N2K port B - 2x SiCOM port List of supported N2K PGN Below is a list of supported N2K PGN’s. PICO allows transmitting or receiving of certain PGN’s according to the table below. PGN Name receiving transmitting 59904 ISO Request 60928 ISO Address Claim...

  • Page 5: Installation

    Installation Mounting CAUTION: install the shunt module in a clean dry place, protected from accidental spilling of liquids. 1. You can mount the module with the supplied screws using two holes on both sides of the module. 2. Connect all cables. Cables For the SiCOM connection use the supplied cable.

  • Page 6: Connecting

    Connecting For proper function of Simarine’s SN01 N2K gateway module it is necessary to take the following steps: 1. Connect SN01 to Simarine PICO via the SICOM port 2. Connect to N2K backbone via the marked N2K port connector ·...

  • Page 7: Technical Specifications

    Voltage range 6 – 35 V Temperature range -20°C – 70°C (-4°F – 158°F) Power consumption at 12V Operating 0,6 mA Dimensions SN01 N2K Gateway 111.80 x 77.52 x 32.11 mm 4.40 x 3.05 x 1.26 in N2K backbone Connectivity SiCOM...
