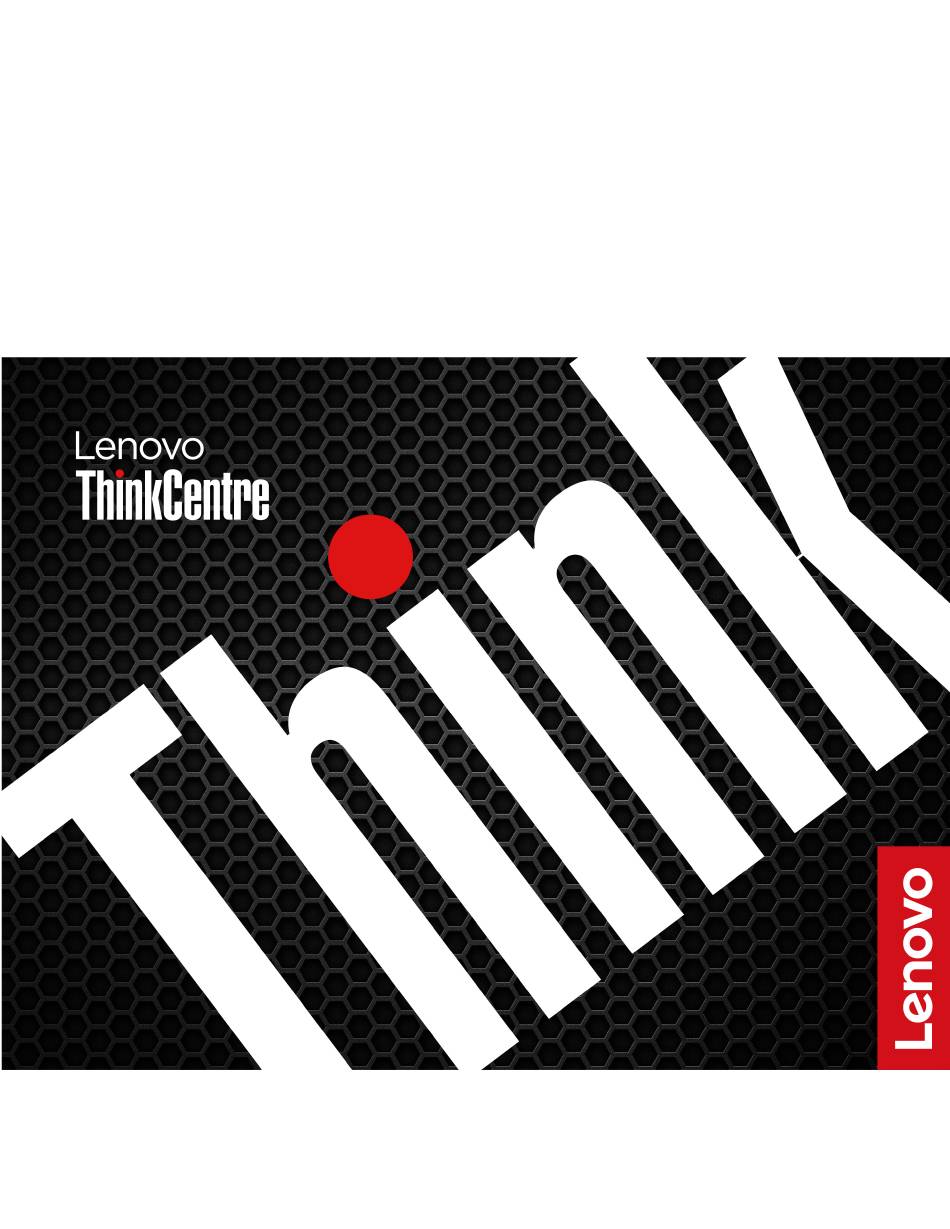

  • Page 1 ThinkCentre M75q Gen 5 User Guide...
  • Page 2 • Setup Guide Third Edition (September 2024) © Copyright Lenovo 2024. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-...

  • Page 3: Table Of Contents

    ... Connect an external display ..Call Lenovo ....Set the power plan .
  • Page 4 ThinkCentre M75q Gen 5 User Guide...

  • Page 5: Discover Your Lenovo Computer

    Discover your Lenovo computer Thank you for choosing a Lenovo computer! We are dedicated to delivering the best solution to you. Before starting your tour, please read the following information: • Illustrations in this documentation might look different from your product.
  • Page 6 ThinkCentre M75q Gen 5 User Guide...

  • Page 7: Chapter 1. Meet Your Computer

    • On: The computer is starting up or working. • Off: The computer is off or in hibernation mode. • Blinking rapidly: The computer is entering sleep or hibernation mode. • Blinking slowly: The computer is in sleep mode. © Copyright Lenovo 2024...
  • Page 8 • Headsets with a 3.5mm (0.14 inch), CTIA-compliant TRRS (4-pole) plug Note: This headset connector does not support standalone external microphones with a TRS (3-pole) plug or headsets with an OMTP-compliant TRRS (4-pole) plug. Related topics • “USB specifications” on page 5. ThinkCentre M75q Gen 5 User Guide...

  • Page 9: Rear

    Rear Description Description Item Item Security-lock slot Optional connectors* ® Wi-Fi antenna slot* Ethernet connector USB-A connector (USB 5Gbps) (with smart USB-A connectors (Hi-Speed USB) power-on feature) ™ USB-A connector (USB 10Gbps) HDMI out connector ™ DisplayPort out connector Power adapter connector * for selected models Optional connector Depending on the computer model, the connector might be a DisplayPort out connector, a USB-C...

  • Page 10: Features And Specifications

    • For IGEL operating system: – Type lsblk /dev/igfboot in Local Terminal and view the storage drive capacity of your computer. Note: The storage drive capacity indicated by the system is less than the nominal capacity. ThinkCentre M75q Gen 5 User Guide...

  • Page 11: Usb Specifications

    • Charge USB-C compatible devices with the output voltage and current of 5 V and 0.9 A. • Connect to USB-C accessories to help expand your computer functionality. To purchase USB-C accessories, go to https://www.lenovo.com/accessories USB-C connector (USB 10Gbps) Chapter 1 Meet your computer...
  • Page 12 ThinkCentre M75q Gen 5 User Guide...

  • Page 13: Chapter 2. Get Started With Ubuntu Desktop

    Connect to Wi-Fi networks (for selected models) If your computer includes a wireless LAN module, you can connect your computer to Wi-Fi networks. 1. Open the system menu from the top-right corner and expand the Wi-Fi section of the menu. © Copyright Lenovo 2024...

  • Page 14: Connect An External Display

    You can connect all types of Bluetooth-enabled devices to your computer, such as a keyboard, a mouse, a smartphone, or speakers. Place the device that you are attempting to connect to less than 10 meters (33 feet) from the computer. ThinkCentre M75q Gen 5 User Guide...
  • Page 15 1. Turn on Bluetooth on the computer. a. Open the system menu from the top-right corner and then click Settings ➙ Bluetooth. b. In the Bluetooth section enable Bluetooth with the toggle button at the top. 2. Any discoverable devices will be shown in the Devices list. 3.
  • Page 16 ThinkCentre M75q Gen 5 User Guide...

  • Page 17: Chapter 3. Get Started With Igel Desktop

    This section helps you access networks through connecting to a wired or wireless network. Connect to Wi-Fi networks (for selected models) 1. Click the Wi-Fi tray icon and select Manage Wireless Networks to launch the Wireless Manager tool. 2. Search for available networks and select a network for connection. © Copyright Lenovo 2024...

  • Page 18: Connect An External Display

    • Turn off the display: After 15 minutes • Put the computer to suspend: After 20 minutes To awaken the computer from Suspend mode, press the power button. ThinkCentre M75q Gen 5 User Guide...

  • Page 19: Transfer Data

    To reset the power plan to achieve the best balance between performance and power saving: 1. Click the gear icon in the Quick Start Panel to open Setup. 2. Select System ➙ Power Options ➙ System. 3. Choose or customize a power plan of your preference. Transfer data Quickly share your files using the built-in Bluetooth technology among devices with the same features.
  • Page 20 ThinkCentre M75q Gen 5 User Guide...

  • Page 21: Chapter 4. Secure Your Computer And Information

    Chapter 4. Secure your computer and information Lock the computer Note: Lenovo makes no comments, judgments, or warranties about the function, quality, or performance of the locking device and security feature. You can purchase computer locks from Lenovo. Security lock Lock your computer to a desk, table, or other fixtures through a security lock.

  • Page 22: Use Bios Security Solutions

    You should record your passwords and store them in a safe place. If you forget the passwords, contact a Lenovo-authorized service provider. Note: If the hard disk password is forgotten, Lenovo cannot remove the password or recover data from the storage drive.

  • Page 23: Cover Presence Switch

    6. Select the storage drive you will wipe and click NEXT. 7. Select the entire storage drive or partition to wipe as desired. 8. Select the method as desired and click NEXT. 9. Click Yes to confirm your option when the prompting window is displayed. 10.
  • Page 24 ThinkCentre M75q Gen 5 User Guide...

  • Page 25: Chapter 5. Uefi Bios

    Note: The Lenovo BIOS Simulator Center makes periodic updates of the settings. The UEFI BIOS simulator interface and description of settings might be different from that on your actual user interface.

  • Page 26: Update Uefi Bios

    Management Suite (UMS). See Universal Firmware Update in the IGEL UMS • Go to and select the entry for your computer. Then, follow the on-screen https://pcsupport.lenovo.com instructions to download and install the latest UEFI BIOS update package. ThinkCentre M75q Gen 5 User Guide...

  • Page 27: Chapter 6. Cru Replacement

    If you intend on installing the CRU, Lenovo will ship the CRU to you. CRU information and replacement instructions are shipped with your product and are available from Lenovo at any time upon request. You might be required to return the defective part that is replaced by the CRU.

  • Page 28: Remove Or Replace A Cru

    For access, do the following: 1. Remove any media from the drives and turn off all connected devices and the computer. 2. Disconnect all power cords from electrical outlets and disconnect all cables from the computer. Replacement procedures ThinkCentre M75q Gen 5 User Guide...

  • Page 29: Vertical Stand

    Vertical stand Prerequisite Before you start, read Generic Safety and Compliance Notices and print the following instructions. Before you open the computer cover, turn off the computer and wait several minutes until the computer is cool. For access, do the following: 1.

  • Page 30: Vesa Mount Bracket

    For access, do the following: 1. Remove any media from the drives and turn off all connected devices and the computer. 2. Disconnect all power cords from electrical outlets and disconnect all cables from the computer. Removal steps ThinkCentre M75q Gen 5 User Guide...

  • Page 31: Dust Shield

    Screw (quantity) Torque Color M3 x 6 mm, Zn coated(2) Black 1.5 ± 0.2 lb/in Dust shield Prerequisite Before you start, read Generic Safety and Compliance Notices and print the following instructions. Before you open the computer cover, turn off the computer and wait several minutes until the computer is cool.

  • Page 32: Computer Cover

    2. Disconnect all power cords from electrical outlets and disconnect all cables from the computer. 3. Unlock any locking device that secures the computer cover. 4. Hold the sides of the computer and gently lay it down so that the computer cover is facing up. ThinkCentre M75q Gen 5 User Guide...

  • Page 33: Board-To-Board Module

    Removal steps Screw (quantity) Torque Color M4 x 5 mm, Zi coated(1) Black 3 ± 0.5 lb/in Note: If a locking device is available, use it to lock the computer. Board-to-Board module Prerequisite Before you start, read Generic Safety and Compliance Notices and print the following instructions. Before you open the computer cover, turn off the computer and wait several minutes until the computer is cool.

  • Page 34: Internal Speaker

    Prerequisite Before you start, read Generic Safety and Compliance Notices and print the following instructions. Before you open the computer cover, turn off the computer and wait several minutes until the computer is cool. ThinkCentre M75q Gen 5 User Guide...

  • Page 35: Thinkcentre Led Cable

    For access, do the following: 1. Remove these parts in order, if any: • “Computer cover” on page 26 • “Internal speaker” on page 28 2. Disconnect the system fan cable from the system fan connector on the system board. Removal steps ThinkCentre LED cable Prerequisite...

  • Page 36: Memory Module

    Before you open the computer cover, turn off the computer and wait several minutes until the computer is cool. Ensure that you follow the installation order for memory modules shown in the following illustration. ThinkCentre M75q Gen 5 User Guide...
  • Page 37 For access, remove these parts in order, if any: • “Computer cover” on page 26 • “System fan” on page 28 Replacement procedures Note: During the installation, ensure that you align the memory module to the slot and press down on both ends until the latches are fully engaged with a click.

  • Page 38: M.2 Solid-State Drive

    • Do not make the internal storage drive subject to physical shocks or vibration. Put the internal storage drive on a soft material, such as cloth, to absorb physical shocks. For access, remove the computer cover. See “Computer cover” on page 26. Removal steps ThinkCentre M75q Gen 5 User Guide...

  • Page 39: Chapter 7. Help And Support

    • Setup Guide want. • This User Guide • Regulatory Notice Lenovo Support Web site with the latest support information of the following: • Drivers and software • Diagnostic solutions https://pcsupport.lenovo.com • Product and service warranty •...

  • Page 40: Call Lenovo

    Call Lenovo If you have tried to correct the problem yourself and still need help, you can call Lenovo Customer Support Center. Before you contact Lenovo Prepare the needed information before you contact Lenovo. 1. Record the problem symptoms and details: •...

  • Page 41: Purchase Accessories

    • Lenovo hardware repair - If the problem is determined to be caused by Lenovo hardware under warranty, trained service personnel are available to provide the applicable level of service.
  • Page 42 – Keys and controls that can be reached and operated using one hand and require minimal dexterity for ease of use • Industry-standard connectors The industry-standard connectors on Lenovo products enable better compatibility with peripheral devices. • Operating systems The accessibility features of the operating systems can be configured to assist users in the following ways: –...

  • Page 43: Appendix A. Supplemental Information About The Ubuntu Operating System

    The LLW also is preinstalled on the computer. To access the LLW, go to the following directory: /opt/Lenovo If you cannot view the LLW either from the Web site or from your computer, contact your local Lenovo office or reseller to obtain a printed version of the LLW.
  • Page 44 Lenovo for a period of three years without charge except for the cost of media, shipping, and handling, upon written request to Lenovo. This offer is valid to anyone in receipt of this device.

  • Page 45: Appendix B. Compliance Information

    Note: For more compliance information, refer to Regulatory Notice at https://pcsupport.lenovo.com Generic Safety and Compliance Notices at https://pcsupport.lenovo.com/docs/generic_notices Certification-related information Product name: ThinkCentre M75q Gen 5 Machine types: 12RQ, 12RR, 12RS, 12RT, 12RU, 12RV, 12RW, and 12RX The latest compliance information is available at: https://www.lenovo.com/us/en/compliance Operating environment Maximum altitude (without pressurization) •...
  • Page 46 ThinkCentre M75q Gen 5 User Guide...

  • Page 47: Appendix C. Notice For Usb Connector Name Update

    Appendix C. Notice for USB connector name update The USB Implementers Forum published a revision of the guideline for USB connector names in September, 2022. Lenovo follows the revised guideline and updates USB connector names accordingly. You can refer to the table below for naming update details.
  • Page 48 ThinkCentre M75q Gen 5 User Guide...

  • Page 49: Appendix D. Notices And Trademarks

    Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.
  • Page 50 Actual results may vary. Users of this document should verify the applicable data for their specific environment. This document is copyrighted by Lenovo and is not covered by any open source license, including any Linux agreement(s) which may accompany software included with this product. Lenovo may update this document at any time without notice.
