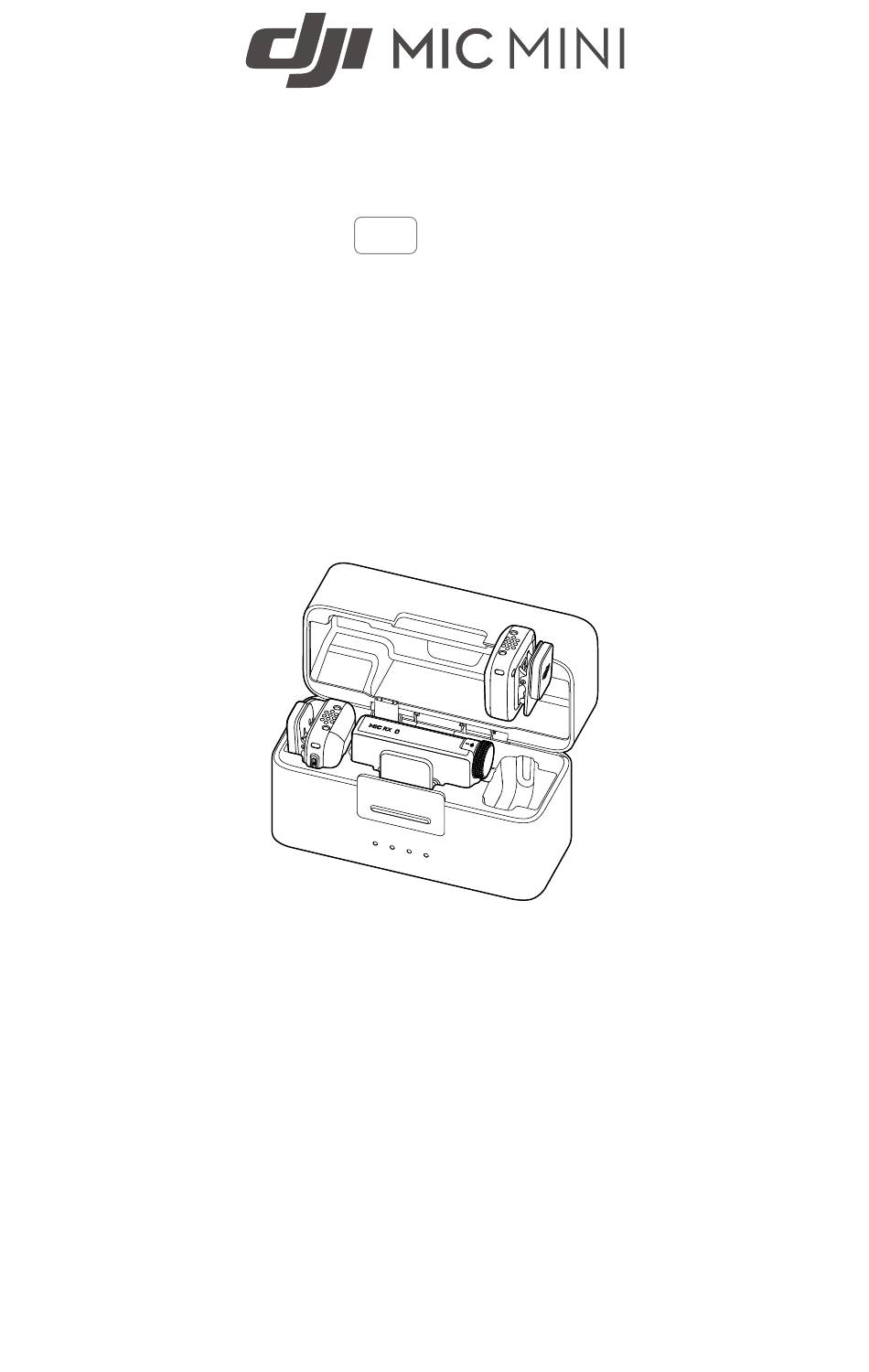

- Page 1 User Manual v1.0 2024.11...
- Page 2 This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized by DJI, you are not eligible to use or allow others to use the document or any part of the document by reproducing, transferring, or selling the document. Users should only refer to this document and the content thereof as instructions to operate DJI products.
-
Page 3: Using This Manual
DJI Mic Mini User Manual Using this Manual Legend Reference Important Hints and Tips Read Before Use ™ provides you with tutorial videos and the following documents: 1. Safety Guidelines 2. Quick Start Guide 3. User Manual It is recommended to watch all the tutorial videos and read the Safety Guidelines before using for the first time. -
Page 4: Table Of Contents
DJI Mic Mini User Manual Contents Using this Manual Legend Read Before Use Product Profile Transmitter Receiver Charging Case Using the Product Charging Charging with the Charging Case Charging with the Charging Dock Installing the Windscreen Wearing the Transmitter Linking the Transmitter and Receiver... -
Page 5: Product Profile
DJI Mic Mini User Manual Product Profile 1.1 Transmitter 1. System Status LED Battery Level Solid red 0-10% Solid green/blue > 10% Link Status with the Receiver Solid green Linked with the receiver Blinks green slowly Not linked with the receiver... -
Page 6: Receiver
2. Linking Button Press and hold for two seconds to start linking. After connecting the microphone to DJI filming device, press to start or stop recording videos. 3. Power Button Press and hold for two seconds to power on or off. Press to enable or disable noise cancelling. - Page 7 DJI Mic Mini User Manual Not linked with the receiver Blinks green quickly Linking Solid yellow Noise cancelling enabled 4. Receiver Status LED Battery Level Solid red 0-10% Channel Solid green Mono/Safety Track Solid cyan Stereo Blinks green/cyan slowly No audio recording device linked...
-
Page 8: Charging Case
DJI Mic Mini User Manual 8. Data Port (USB-C) 9. Clip 1.3 Charging Case 1. Battery Level LEDs LED is on LED is blinking LED is off Battery Level During Charging (LEDs Blink in Sequence) 76%-99% 51%-75% 26%-50% ≤25% Fully charged... - Page 9 DJI Mic Mini User Manual 2. Charging Port (USB-C) • Fully charge the battery at least once every three months to maintain battery health. If the battery is not used for an extended period, battery performance maybe affected or may even cause permanent battery damage.
-
Page 10: Using The Product
DJI Mic Mini User Manual Using the Product 2.1 Charging Charging with the Charging Case Place the transmitters and the receiver in the charging case to start charging simultaneously. If the charging case runs out of power, use the provided USB-C cable to charge the case. -
Page 11: Installing The Windscreen
DJI Mic Mini User Manual 2.2 Installing the Windscreen In outdoor or windy environments, use the windscreen to reduce wind noise and improve audio quality. 2.3 Wearing the Transmitter The transmitter can be attached to clothing using the clip or magnet, or can be placed on a stable surface using the magnet. -
Page 12: Linking The Transmitter And Receiver
DJI Mic Mini User Manual 2.4 Linking the Transmitter and Receiver Before first use, refer to Updating Firmware to update the device to the latest firmware version. The transmitter and receiver in the combos are linked by default. Follow the steps below to link the transmitter and receiver if they become unlinked. -
Page 13: Using With A Camera
DJI Mic Mini User Manual 00:05:20 TX 1 TX 1 TX 2 TX 2 2.6 Using with a Camera Mount the receiver to the camera using the clip and connect the audio cable. The transmitter will then capture audio for the camera. -
Page 14: Using With A Computer
TX 1 2.8 Transmitter Directly Connected to Filming Devices The transmitter can connect to phones or DJI filming devices via Bluetooth. Osmo Pocket 3 Osmo Action 5 Pro Connecting to a Phone 1. When the transmitter is powered on, press and hold the linking button on the transmitter for two seconds until the system status LED blinks blue and green alternately. -
Page 15: Connecting To Dji Filming Devices
DJI Mic Mini User Manual 2. Enable Bluetooth on the phone and select DJI Mic Mini-XXXXXX among the searched Bluetooth devices to connect. Connection is successful when the status LED on the transmitter is in solid blue. The transmitter will then function as an audio input device and can be used with third- party recording or live streaming applications. -
Page 16: Firmware Update And Parameter Adjustment
DJI Mic Mini User Manual Firmware Update and Parameter Adjustment After connecting the microphone to the DJI Mimo app, you can update the firmware or adjust parameter settings using your phone. 3.1 Connecting to the DJI Mimo App Connecting via the Adapter •... -
Page 17: Updating Firmware
3.2 Updating Firmware Tap About Devices on the device setting interface of the DJI Mimo app to view the device name, SN code, and firmware version. Tap the firmware version to download and install the latest version. -
Page 18: Appendix
DJI Mic Mini User Manual Appendix 4.1 Specifications Visit the following website for specifications. https://www.dji.com/mic-mini/specs 4.2 Aftersales Information Visit https://www.dji.com/support to learn more about aftersales service policies, repair services, and support. © 2024 DJI All Rights Reserved. - Page 19 DJI SUPPORT This content is subject to change without prior notice. https://www.dji.com/mic-mini/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI is a trademark of DJI. Copyright © 2024 DJI All Rights Reserved. ...
