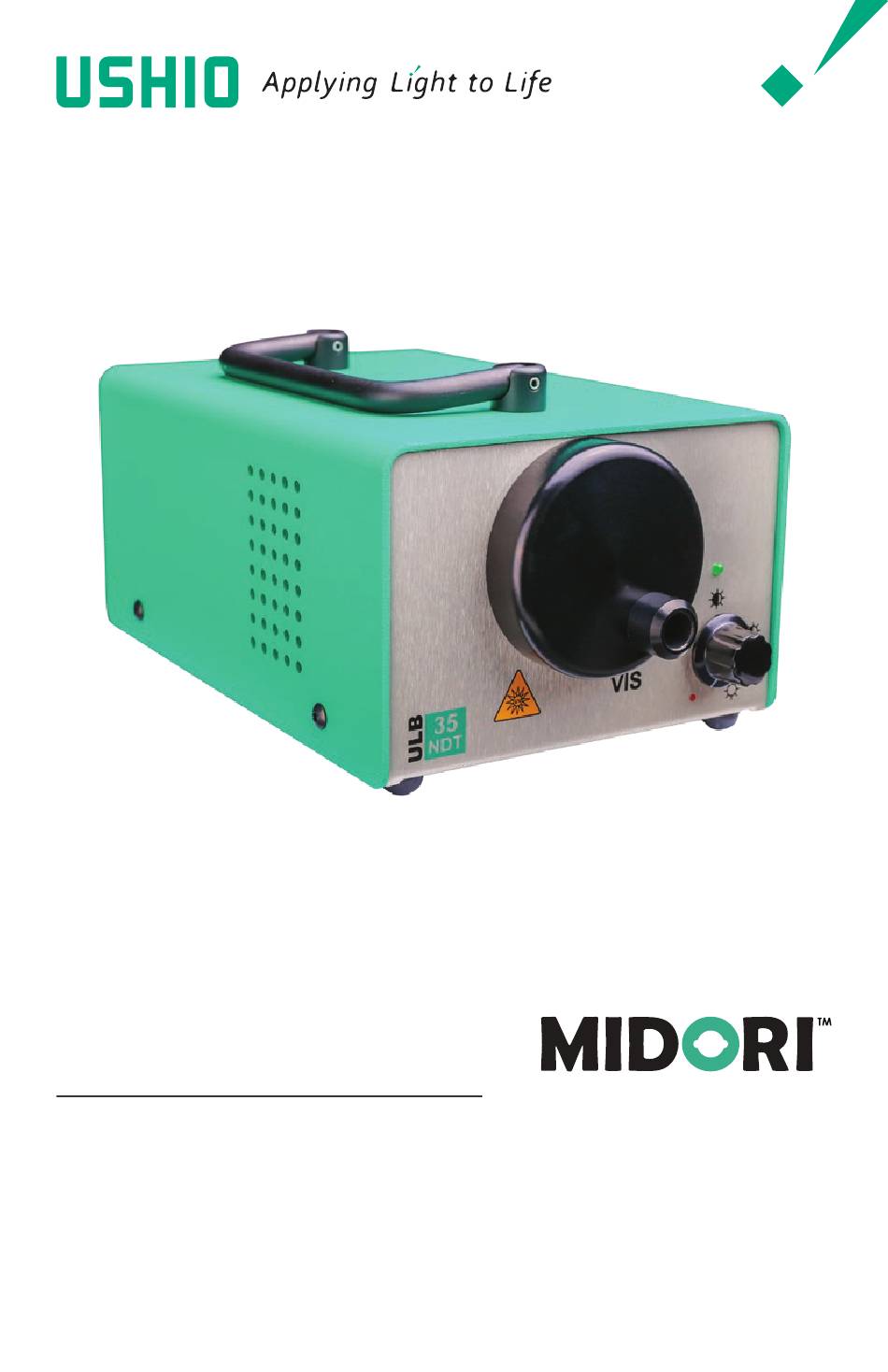

- Page 1 ULB-35 NDT DUAL CHANNEL UV-VIS LED LIGHT SOURCE OPERATING MANUAL...
-
Page 2: Table Of Contents
The ULB-35 series fiber illuminators utilize eco-friendly solid state LED lighting technology, exhibits instant-on and electronic intensity dimming capability with long operating lifetime. The Midori ULB-35ndt LED fiber illuminator is equipped with an Olympus fiber receptacle which rotates from either UV to VIS white light output selections. -
Page 3: Introduction
SECTION 1 INTRODUCTION SYSTEM SYMBOL DESCRIPTIONS Caution: Consult Accompanying Caution: Hot Surface Documentation Caution Hazard Warning Lamp On Lamp Off Light; Lighting; UV Light Warning Illumination Intensity +49°C Storage Humidity Transport Temperature -20°C Alternating Current Direct Current Do Not Immerse in Any Manufacturer Liquid Do not dispose of this product as unsorted municipal waste. -
Page 4: Warnings And Precautions
à DEL directe à des fins médicales. Unit MAY BE HOT. Allow to cool before handling. / WARNING / L’appareil PEUT ÊTRE CHAUD. Il est important de MISE EN GARDE le laisser refroidir avant d’y toucher. Midori ULB-35 NDT www.ushio.com ™... - Page 5 Preferred operation is in the horizontal position. Other operating orientations are permitted. / L’appareil CAUTION / AVERTISSEMENT fonctionne de façon optimale à l’horizontale. Les autres orientations sont permises. Any changes or modifications made to this device that are not expressly approved by manufacturer may void the user’s authority to operate the equipment.
-
Page 6: System Description And Operation
VIS output. Figure 1. Back View 12vdc Power Plug Figure 2. Fiber-Optic Bundle Front Turret Caution: Hot Surface - Light guide ferrule may be hot when removed. Do not touch. Allow to cool. Midori ULB-35 NDT www.ushio.com ™... - Page 7 Figure 3. Front View Rotate Turret to Select UV or Visible Output ON/OFF Indicator Light Port Power ON/OFF Rotate Knob Light Intensity Knob Figure 4. Cooling and Air Flow Paths 1. Do not obstruct air flow paths. This device is designed to have proper forced air cooling paths to maintain thermal stable operation.
-
Page 8: Specifications
Ushio America, Inc. recommends using an UR (or other recognized testing laboratory) recognized battery rated at 12V/8Ah or equivalent with a minimum 5.0 amp current limit rating. * Based on LED manufacturer rated wattage and thermal operation. Midori ULB-35 NDT www.ushio.com ™... -
Page 9: Mechanical Dimensions
Mechanical Dimensions 192 mm 7.6” 118 mm 171 mm 4.6” 6.75” 133 mm 5.2” 84 mm 3.3” Environment Operating Temperature: 41° F to 104° F (5° C to 40° C) Humidity: 0 to 95% rh (Non-Condensing) Storage Temperature: -10° F to 140° F (-20° C to 60° C) Humidity: 30 to 75% rh Atmospheric Pressure:... -
Page 10: Care And Maintenance
5. It is recommended to periodically clean the reflective optical surface near the LED. Please use a soft cotton Q-tip dipped in Isopropyl Alcohol and wipe the reflective optic surfaces and allow to thoroughly dry prior to use. Midori ULB-35 NDT www.ushio.com ™... -
Page 11: Troubleshooting
SECTION 4 TROUBLESHOOTING In the event the unit stops functioning, try the following steps to operate light source. The power supply exhibits internal protection circuitry for user safety precautions and will shutdown during certain instances. This equipment has been tested to ESD conditions according IEC 61326-1 and performs to performance criterion C. -
Page 12: Limited Warranty
Ushio America or an authorized agent. The purchase date determines limited warranty requirements. No other express or implied limited warranty is given. Midori ULB-35 NDT www.ushio.com ™... -
Page 13: Agency Approvals
SECTION 6 AGENCY APPROVALS The CE mark on this product indicates that it has been tested to and conforms to the provisions noted within the following directives: General Product Safety Directive: 2001/95/EC EMC: 2014/30/EU RoHS 3: 2015/863/EU In accordance with the following standards: EN61010-1 IEC 61326-1 EN 61326-1... -
Page 14: Agency Compliance Statements
Le present appareil numerique n’emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de la classe A prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada. Midori ULB-35 NDT www.ushio.com ™... -
Page 15: Manufacture Contact Information
SECTION 8 MANUFACTURE CONTACT INFORMATION Manufactured and Serviced by: Ushio America, Inc. 5440 Cerritos Ave. Cypress, CA 90630 USA Tel: +1.714.236.8600 Fax: +1.714.229.3180 Toll-Free: +1.800.838.7446 Customer Service: customerservice@ushio.com Website: www.ushio.com Model or Type: ULB-35ndt www.ushio.com Operating Manual... - Page 16 Made in USA 5440 Cerritos Avenue, Cypress, CA 90630 © 2021 Ushio America, Inc. All rights reserved. Form No. ULB35ndt/1021...
