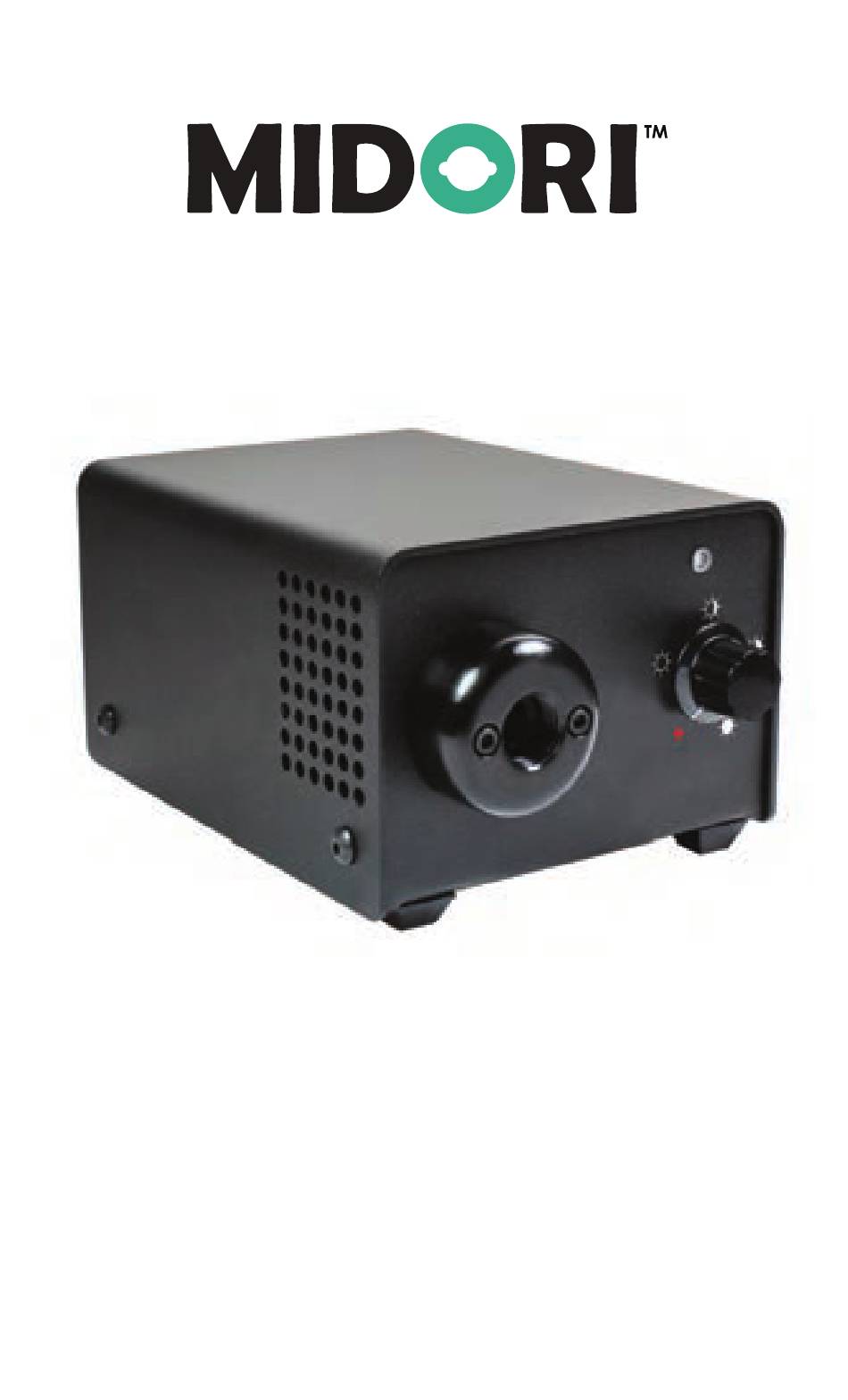

- Page 1 ULB-35 SERIES LED LIGHT SOURCE OPERATING MANUAL...
-
Page 2: Table Of Contents
The light source is a high output, efficient, compact and lightweight fiber optic light source for industrial applications where space is a premium. The ULB-35 series fiber illuminators utilize eco-friendly solid state LED lighting technology, exhibits instant-on and electronic intensity dimming capability with long operating lifetime. -
Page 3: System Symbol Descriptions
System Symbol Descriptions Caution: Consult Caution: Hot Surface accompanying documentation Caution Hazard Warning Lamp On Lamp Off Light; Lighting; Bright Light Illumination Intensity +49°C Storage Humidity Transport Temperature -20°C Alternating Current Direct Current Do Not Immerse in Any Manufacturer Liquid Do not dispose of this product as unsorted municipal waste. -
Page 4: Warning And Precautions
CAUTION / Protection provided by the equipment maybe impaired if not used in accordance AVERTISSEMENT with the manufacture recommendations. / La protection assurée par l’équipement risque d’être altérée si l’appareil n’est pas utilisé conformément aux recommandations du fabricant. Midori™ ULB-35... -
Page 5: System Assembly And Operation
System Description and Operation The light source power switch should be in the OFF position. Plug the external 12vdc power supply into the 12vdc connector. Figure 1. Plug the external power supply cord into AC receptacle main power. Plug the fiber-optic bundle into the light port and connect the opposite end to the equipment being used. -
Page 6: Air Flow Paths
Do not drape the LED Light Source with cloth or objects restricting airflow. Airflow outlets are shown in below red arrow graphics. 1/4-20 UNF mounting stud located in the middle of box bottom side. Threaded Mounting Stud: 1/4x20 UNF Midori™ ULB-35... -
Page 7: Maintenance And Cleaning
Maintenance and Cleaning Turn the LED Light Source off and unplug the power cord from both the wall outlet and the rear of the unit. Wipe the external surfaces clean with a cloth dampened with mild soap and water. DO NOT IMMERSE. Wipe the power cords clean with a cloth dampened with mild soap and water. -
Page 8: Manufacture Contact Information
ULB-35 Power Ratings: Voltage: +12V DC; 14V DC maximum Current: 3.4 amp Battery: Ushio America, Inc. recommends using a UR (or other recognized testing laboratory) recognized battery rated at 12V/9Ah or equivalent with a minimum 3.5 amp current limit rating. Midori™ ULB-35... -
Page 9: Dimensions
Dimensions Length: 127MM (5.0”) Width: 90MM (3.5”) Height: 68MM (2.7”) Weight: 0.45 kg (1.0 lbs) [90 mm] [ 127 mm ] 3.5” 5.0” [ 114 mm ] 4.5” [ 68 mm] 2.7” Illumination Source Type: LED Custom Module Color Temperature: 5700 K - 6500 K Nominal Power: 35 Watts... -
Page 10: Approvals
USHIO America or an authorized agent. The purchase date determines limited warranty requirements. No other express or implied limited warranty is given. Midori™ ULB-35... -
Page 11: Agency Compliance Statements
Agency Compliance Statements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
