ADDER ADDERView Matrix Quick Start page 2

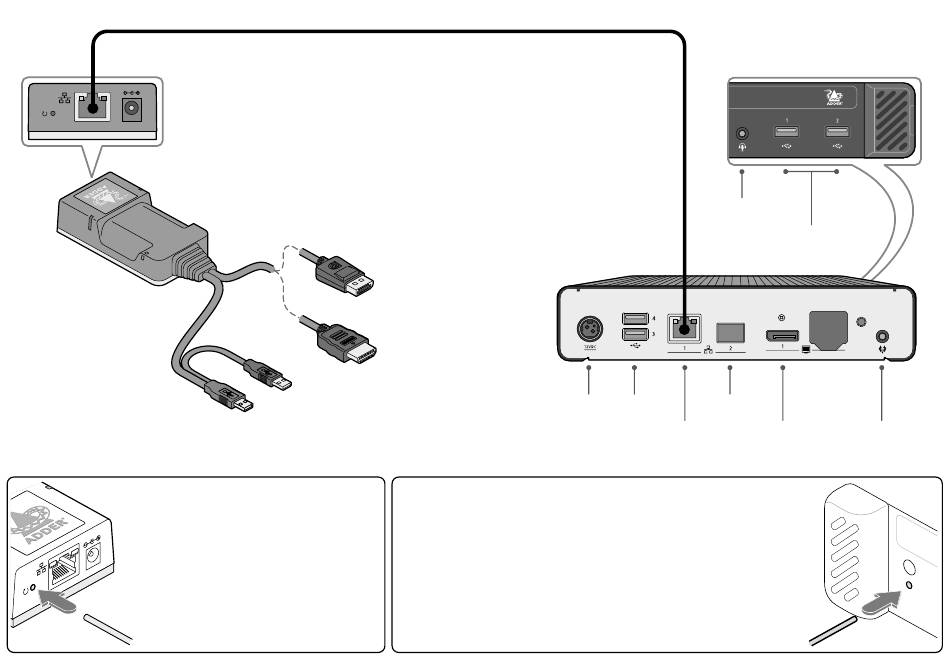

Connections
Black USB plug
provides Hi-Speed USB
signals (plus power if
the external power
adapter is not present)
CAM - To perform a manual factory reset
1 Power on the CAM ie, switch on the host computer.
2 Use a narrow implement (e.g. a straightened-out paper
clip) to press-and-hold the recessed reset button for more
than 15 seconds until the status indicators turn blue.
3 Release the reset switch. The indicators will remain
blue for a short while (less than ten seconds) while the
CAM configures itself and should then change to green
if all connections are correct; or orange if one or more
of the video, USB and/or network links are missing.
Note: Allow the CAM to fully complete the reset process by
waiting for at least 30 seconds after you release the button.
CATx link - direct link or via suitable 1GbE switch, such as Adder AVM-C12 or AVM-C30
CAM
connects to the
host computer
DisplayPort™
Red USB plug
provides power
only when the
external power
adapter is not
present
connects to your
console peripherals
Video
connection
options:
or
HDMI ®
USR - To perform a manual factory reset
1 Power on the ADDERView Matrix USR.
2 Use a narrow implement (e.g. a straightened-out paper clip) to press-and-hold the recessed
reset button on the front panel for roughly ten seconds, until the status indicator turns blue
(Note: alternating red/green indications will occur during the ten second period while the button is still
pressed).
3 Release the reset switch. The indicator will change to red for a short while (less than ten
seconds) and then back to blue while the ADDERView Matrix USR performs the reset
and should then change to an alternative color, usually orange initially, signifying that the
operation is complete.
Note: If you are performing a factory reset and intend to disconnect the power immediately after the
reset, wait at least 30 seconds after you have released the reset button for it to complete.
USR
Headset
Power USB Secondary
in ports network port
(SFP)
Primary
network port
(CATx)
USB ports
Display Audio
port out
