- Page 1 SMART BATTERY CHARGER AND MAINTAINER 9 Stages Digital Display Instruction Manual Model: IQ8 *Please read this manual carefully before using and retain for future reference.
-
Page 2: Important Safety Instructions
INTRODUCTION The QuickCable Rescue IQ8 Automatic 9-Stage Battery Charger is engineered to efficiently charge a variety of 12V and 24V battery types, including lead-acid (AGM, STD, GEL) and LiFePO4 (LFP) batteries. It is built with the latest charging technologies and meets high-quality standards. -
Page 3: Product Overview

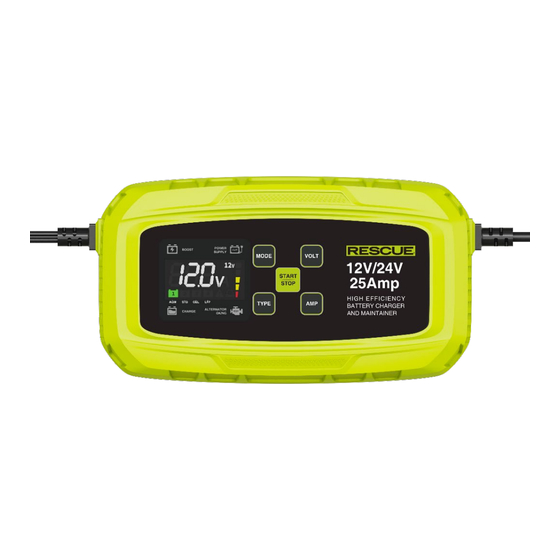

PRODUCT OVERVIEW Start/Stop Battery Voltage Digital Screen Mode Button Button Button Output Clip Battery Type Charging Current Button Button SPECIFICATIONS Model number Charger Type Intelligent Automatic – 9 Stages Input Voltage 108-132 VAC 50~ 60Hz Input Current 5.8A Nominal Output Voltage 4A，12A，25A 4A，12A Output Current... - Page 4 DIGITAL SCREEN DISPLAY Icon Function Boost mode Power Supply mode Battery Charging mode Alternator Test and Evaluation mode. Reverse Connection warning sign Error warning sign Display voltage or current value. It will also display codes: “FUL” – battery is fully charged “bAd”...
- Page 5 Step 1: Select Proper Location for Charger to Be Placed or Mounted The QuickCable Rescue IQ8 Charger is intended for indoor use only. The location selected for the charging of the battery must be cool, dry, clean and well ...
- Page 6 2-2 Positively Earthed First, connect the NEGATIVE (BLACK) lead clamp of the charger to the NEGATIVE (-) terminal of the battery. Next, connect the POSITIVE (RED) lead clamp of the charger to the vehicle’s chassis - away from the fuel lines or moving parts. Step 3: Connect charger to main power Plug the battery charger to a UL or CSA safety approved 120V AC outlet.
- Page 7 Once the battery is fully charged, 'FUL' will appear on the screen. If the charger remains connected, it will automatically enter maintenance mode to keep the battery in optimal condition. Step 7: Disconnection To disconnect the charger from the AC power and the battery, first unplug the charger from the outlet.
- Page 8 to the vehicle's battery. Power on the charger, press the MODE button to select BOOST mode, and then set the battery type and voltage. Press the START/STOP button to activate BOOST mode. The BOOST status will last for 5 minutes, during which the jump start attempt should be performed Note: If the battery charger is unable to detect a properly connected battery, or if the battery is too weak (less than 0.5V) after pressing the START/STOP button, the Error warning sign...
-
Page 9: Troubleshooting
TROUBLE SHOOTING Error warning sign The Error Warning sign will illuminate and remain on after the battery type, voltage, and charging current are set, and the START/STOP button is pressed. This may indicate one of the following issues: Short circuit, poor connection, or reversed connection to the battery: Check the •... - Page 10 QUICKCABLE Rescue® Battery Charger Limited Warranty The Manufacturer warrants this product against defects in material and workmanship for one (1) year from the date of original retail purchase. Damage caused by misuse or improper connections, failure to follow prescribed operating instructions, impact damage, or negligence is not covered by this warranty.
