GENERAL INFORMATION
This Keypad is intended for use with the First Alert Pro VISTA Hybrid Control Panel and it's iBus. The keys on the keypads are backlit for
convenience. Up to a total of eight (8) keypads can be used on the system.
See below and refer to the Control Panel's instructions for details.

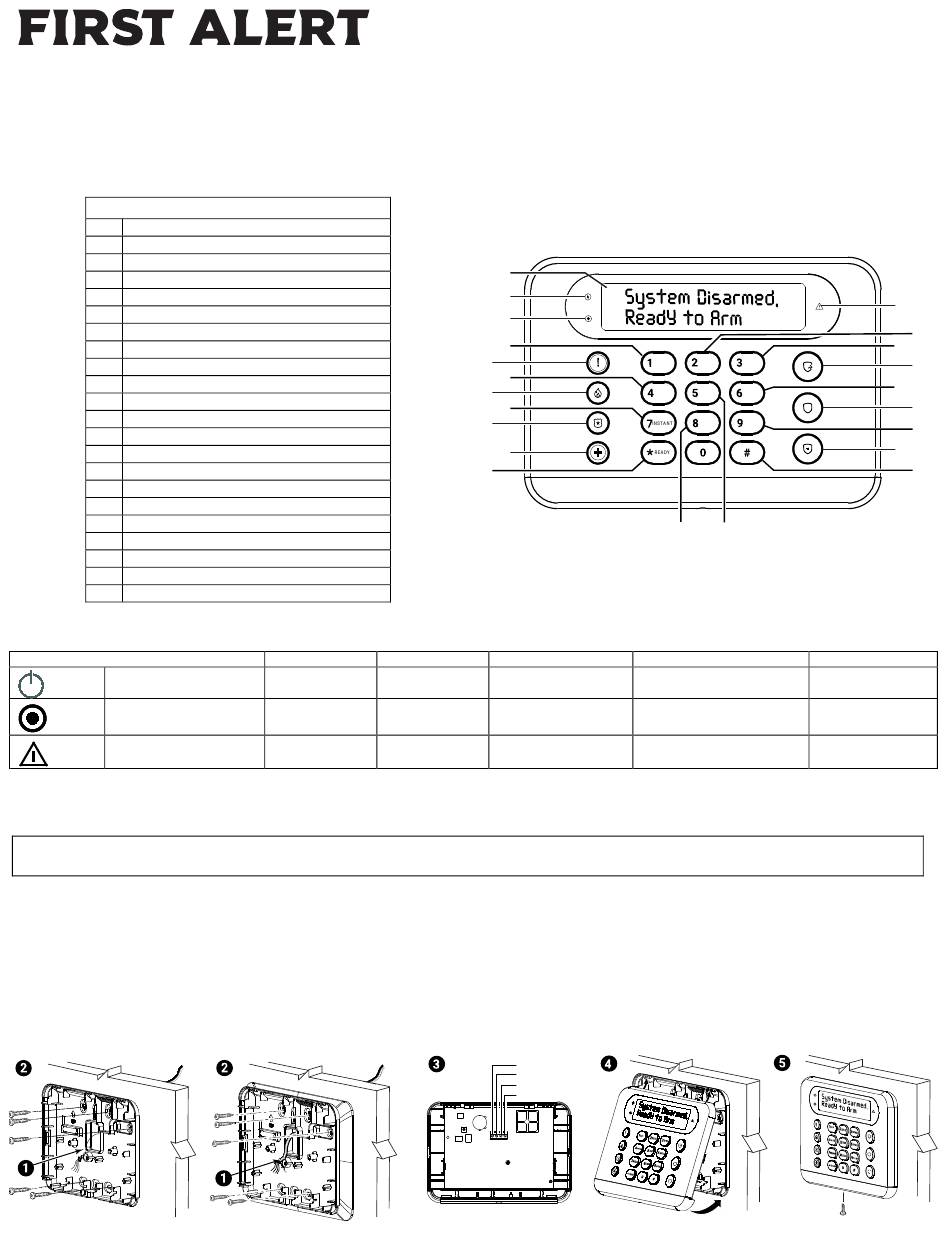

KEY FUNCTIONS
1 2X16 Alpha LCD Display
2 Power LED
3 Status LED
4 Disarm Key
5 Arm Maximum (No Entry Delay)
6 Arm instant (No Entry Delay)
7 Medical Panic
8 Panic
9 Fire Panic
10 Police Panic
11 Scroll Status
12 No other function
13 System Tests
14 # Key
15 Quick Arm Night Option
16 Chime Mode
17 Quick Arm Home Option
18 Bypassing Sensors
19 Quick Arm Away Option
20 Arm Stay
21 Arm Away
22 Trouble LED
OPERATING THE KEYPAD
For operating instructions, refer the Control Panel User Guide.
LEDs
POWER (Control Panel)
STATUS*
(Partition)
TROUBLE
* Programming Mode: Status LED flashes between Red and Green.
KEYPAD MOUNTING
The keypads are surface mounted directly to a wall or to a single gang outlet box [A] with or without the provided optional mudplate [B].
IMPORTANT:
Damage to product can occur if incorrectly wired. See summary of connections below for proper wiring.
1. With the case back removed, route the 4 wires from the control through the opening in the wall mount.
2. Mount the wall mount using the provided screws. Insert the tamper screw as shown.
3. Connect the 4 wires to the keypad terminal block. Observe polarity. See the Wiring Table below for distance limitations.
a) iBus A
b) iBus B
4. Align the case with the cleats and snap into place.
5. Secure with bottom screw.
: Type of Signaling Device: Type AM
NOTE
A
Installation and Setup Guide
Off
Not Ready to Arm
c) Negative (-)
d) Positive (+)
B
1
2
3
4
8
5
9
6
10
7
11
Red Green
AC
Armed Ready to Arm
a
b
c
d
Wired 2x16 LCD Keypad
OFF SELECT SCROLL
MAX TEST BYPASS
CODE CHIME
12 13
Flashing Red Yellow
Low Battery (no AC)
Alarm / Alarm Memory
Device / System
Trouble
VISTAHLKP
22
21
20
19
18
17
16
15
14
VISTAHLKP-002-V0
VISTAHLKP-001-V0
