NOTE: Not for use as an anti-ligature device.

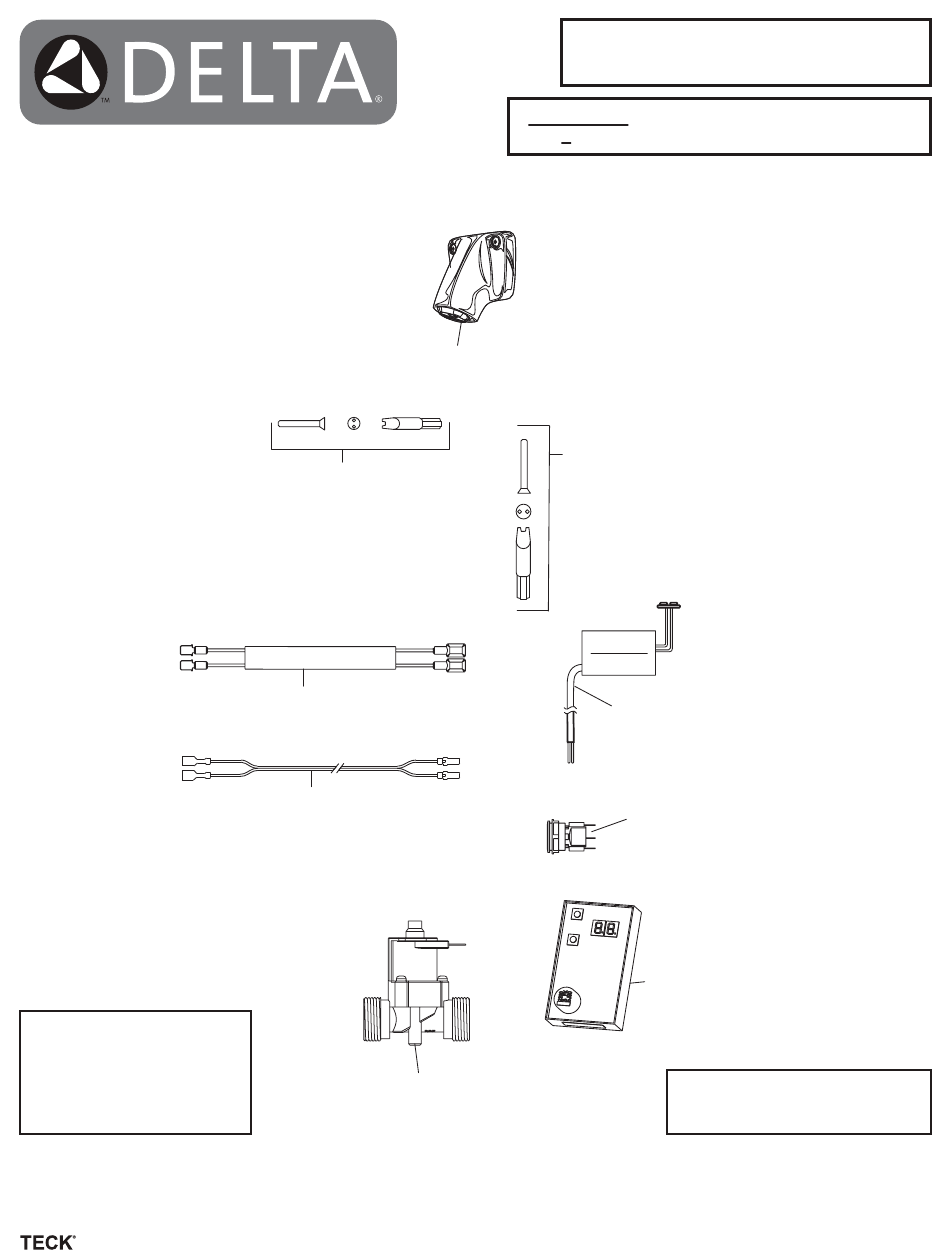

TRANSFORMERS
060704A
Transformer 120 to 24 VAC 20VA
up to 5 Electronic Valves
060771A
Transformer 120 to 24 VAC 40VA
up to 10 Electronic Valves
PLEASE LEAVE this M&I Sheet with the owner, maintenance plumber, etc. as
items relating to ongoing maintenance suggestions and procedures are included.
061011A
1.5 GPM Showerhead
060072A
No.6 - 32 x 2" flat
head SS screws &
security spanner
bit pkg for 124mm
(4-7/8") cover (4 pcs)
060680A
Solenoid Extension Wire
060984A
Button Extension Wire
060671A
Solenoid
w w w .sp e cse le ct .com
860TS102
IMPORTANT:
Install control box flush to FINISHED
wall +1/8". See step 2 in the installation instructions.
ELECTRONIC PUSH
BUTTON SHOWER
060073A
No.10 x 32 x 2"
flat head SS
screws & security
spanner bit pkg
for 10" & 12" covers
(4 pcs)
24VAC
6.4 VDC
060683A
24VAC to 6VDC
Converter
060679A
Over-ride button
assembly
060983A
Driver Board
SEE PAGES 3 & 4 FOR
CONTROL BOX PARTS
210295 Rev. C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta 860TS102
Summary of Contents for Delta 860TS102
- Page 1 860TS102 IMPORTANT: Install control box flush to FINISHED wall +1/8”. See step 2 in the installation instructions. NOTE: Not for use as an anti-ligature device. ELECTRONIC PUSH BUTTON SHOWER 061011A 1.5 GPM Showerhead 060073A No.10 x 32 x 2” 060072A flat head SS No.6 - 32 x 2”...
-
Page 2: Installation Instructions
Installation should be in accordance with local plumbing and electrical codes. FLUSH ALL PIPES THOROUGHLY BEFORE INSTALLATION. INSTALLATION INSTRUCTIONS Fig. 2 STEP 1 - ROUGH IN ● Remove suitable knockout(s) in box(es) and insert cable bushing(s). See Fig.1. NOTE: Wires connecting between boxes and from the transformer must be protected from abrasion and being pulled at connections. - Page 3 Cold Water Inlet Inlet 2,007mm (79”) Recommended 73mm Mounting Height Inlets (2-7/8”) 1/2” Copper 860TS102 Aluminum Control Box 1/2” MIP/ 1,320mm 1/2” Copper Sweat Screwdriver Stops (52”) Mounting Height to top of Box PIPING SHOWN WITH DOTTED LINES SUPPLIED BY OTHERS.
-
Page 4: Operation
INSTALLATION INSTRUCTIONS STEP 5 - TURN ON WATER, ADJUST AND REPLACE COVERS 5.1 Pressure Balanced Valve ● Install cartridge. (Note: for cartridge installation instructions and back to back installations, refer to pages 3 to 6 of the included MultiChoice™ Valve Trim instructions.) ●... -
Page 5: Care Instructions
CARE INSTRUCTIONS This Delta Commercial product is designed and engineered in accordance with the highest quality and performance standards. With proper care, it will give years of trouble free service. Care should be given to the cleaning of this product. Although the chrome finish is extremely durable, it can be DAMAGED by ACIDIC CLEANERS (i.e., cleaners designed specifically for vitreous... - Page 6 If you have any questions or concerns regarding our warranty, please call, mail or email us as provided above. © 2023 Masco Canada Ltd. For further technical assistance, call Delta Commercial Technical Service at 1-800-387-8277 (Canada) or 1-877-509-2680 (U.S.A.) 255068, Rev H Page 6 210295 Rev. C...
