ELAC MURO OD-M61 Owner's Manual

Indoor/outdoor speaker
Hide thumbs

Advertisement

Table of Contents

Muro Series
Models : OD-M61, OD-M81
indoor/outdoor speaker
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MURO OD-M61 and is the answer not in the manual?

Questions and answers

Related Manuals for ELAC MURO OD-M61

Summary of Contents for ELAC MURO OD-M61

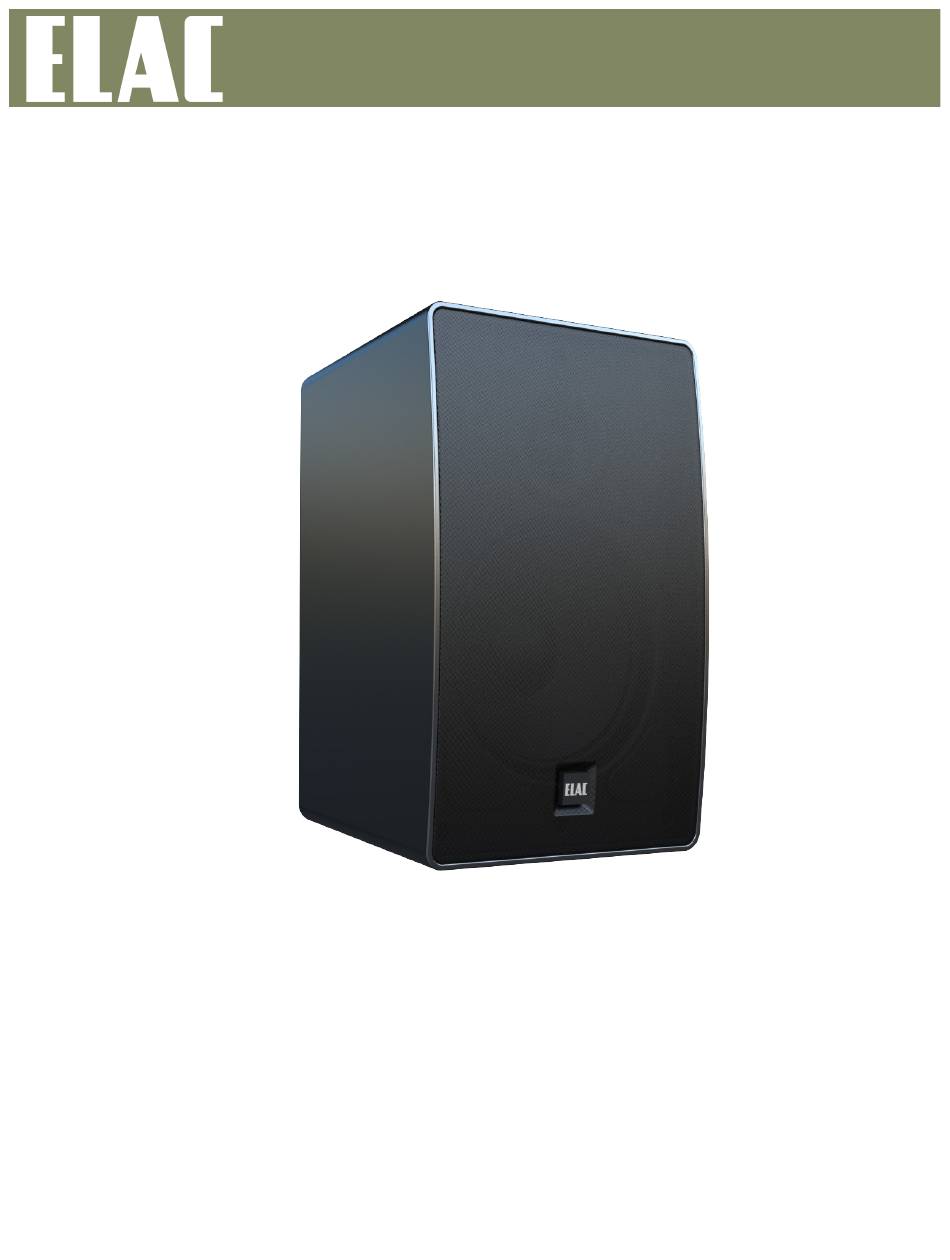

  • Page 1 Muro Series Models : OD-M61, OD-M81 indoor/outdoor speaker Owner’s Manual...
  • Page 2 WALL-MOUNTED Sound with Style and Strength Introducing the new ELAC Muro Outdoor On-Wall Speaker, where modern design meets exceptional versatility. Featuring a clean, sleek profile with no large visible knobs, this speaker seamlessly integrates into any environment, indoors or outdoors. Engineered for...

  • Page 3: What's Included

    Pre-installed on Bracket Speaker x 2 Brackets x 2 M6 x 25mm x 4 Product Features 1/4” Bolt Shoulder Mount Removable Grille Mounting Bracket Rear cover and wire grommet Rotatable Logo U-Bolt Port Plugs ELAC Muro Models OD-M61, OD-M81 www.elac.com Page 2...

  • Page 4: Before Use

    Longer wire runs require larger gauge wire to main- 12 Gauge Up to 400 feet (122 meters) tain performance and minimize signal loss. 10 Gauge Up to 650 feet (198 meters) ELAC Muro Models OD-M61, OD-M81 www.elac.com Page 3...

  • Page 5: Speaker Placement

    Speaker Placement Weather Resistance and Durability • The ELAC Muro speakers are IP66 rated, ensuring they are weather- resistant and capable of delivering exceptional performance for years, even in challenging outdoor environments. Mounting Flexibility • The included bracket system allows for easy installation of the speakers in various positions and locations to suit your needs.
  • Page 6 Details Route wire through grommet and tighten grommet to create a seal. 5-Way binding post are located behind rear cover ELAC Muro Models OD-M61, OD-M81 www.elac.com Page 5...
  • Page 7 Details Mounting screw to bracket inserted through shoulder mount. Shoulder mount has marking in 15 degrees incre- ments facilitating alignment of multiple speakers. ELAC Muro Models OD-M61, OD-M81 www.elac.com Page 6...
  • Page 8 DETAIL SCALE 6 : 1 Removable port plugs transform the de- sign into a ported configuration for en- hanced bass performance when weather conditions permit. Page 7 ELAC Muro Models OD-M61, OD-M81 www.elac.com...
  • Page 9 DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT NOT REMOVE BACK. MADE IN U.S.A. NO USER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL MAIN INPUTS Page 8 ELAC Muro Models OD-M61, OD-M81 www.elac.com...

  • Page 10: Specifications

    Speaker Connection 5 - Way Binding Posts Width (in / mm) 7.87/200 9.84/250 Height (in / mm) 12.2/310 15.35/390 Depth (in / mm) 9.25/235 11.2/285 Net Weight (lbs / KG) 7.71/3.5 11.02/5.0 ELAC Muro Models OD-M61, OD-M81 www.elac.com Page 10...

  • Page 11: Warranty

    North America Limited Liability Warranty ELAC Americas Inc. warrants to the original purchaser that this product be free from defects and or workmanship for a period of 3 (Three) years from the original date of purchase. During this time period, repair or replacement of parts will be free of charge to the original owner (See below limitations).
  • Page 12 ELAC AMERICAS INC. ELAC ELECTROACUSTIC GMBH 1938 N. BATAVIA St. SUITE K FRAUNHOFERSTRAßE 16 D-24118 KIEL, GERMANY ORANGE, CA 92865...

This manual is also suitable for:

Muro od-m81
