H2400
USER MANUAL
Thanks for your purchase from GRECELL.
For the best performance and safety purposes, please read this manual carefully
beforeuse. Please keep this manual for further reference.
CHARGE FIRST!
Please fully charge your new 2400W Power Station before first use.
Highly recommend charging 2400W Power Station when battery indicates less than 20%.
Advertisement
Table of Contents
Related Manuals for GRECELL H2400
Summary of Contents for GRECELL H2400

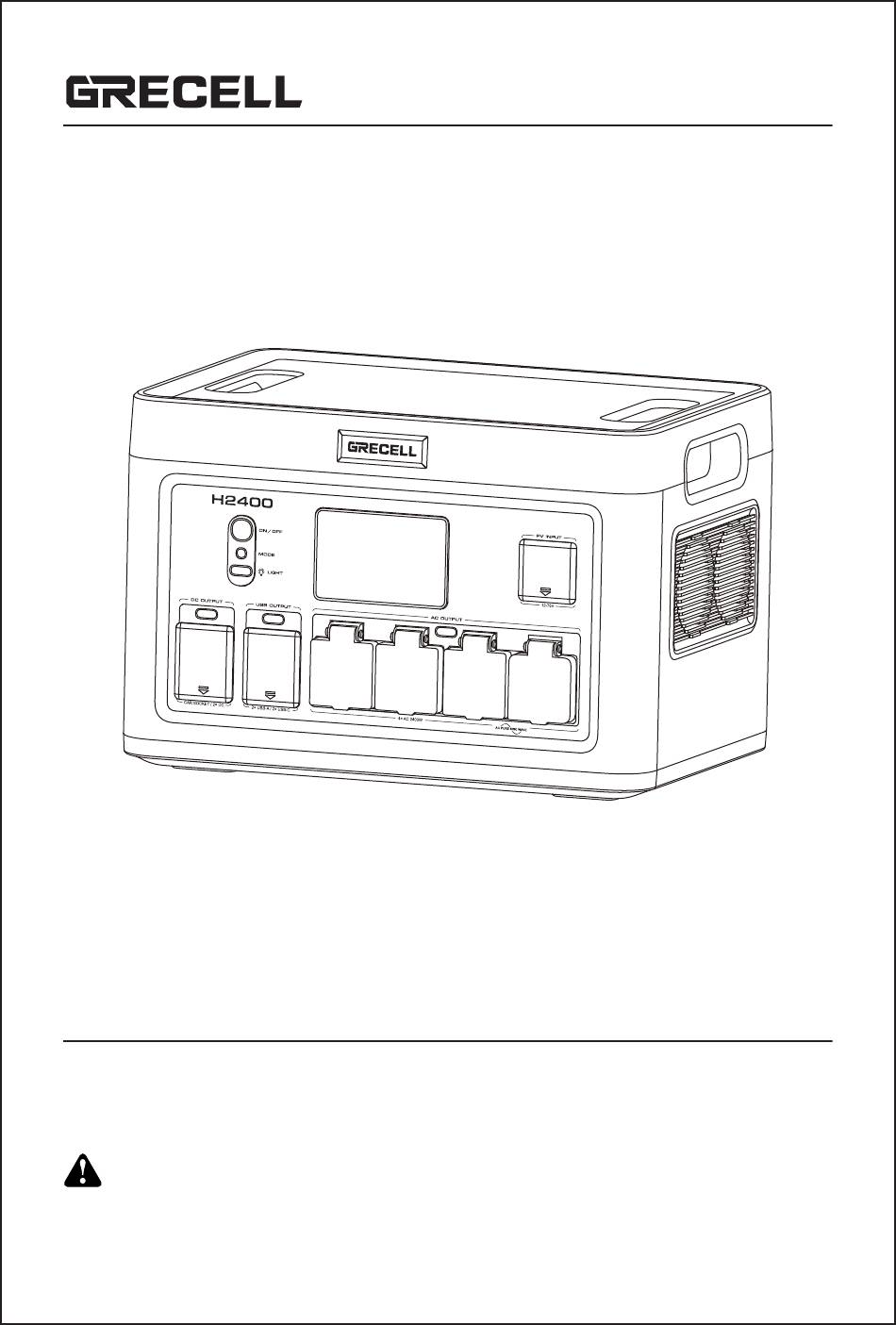

- Page 1 H2400 USER MANUAL Thanks for your purchase from GRECELL. For the best performance and safety purposes, please read this manual carefully beforeuse. Please keep this manual for further reference. CHARGE FIRST! Please fully charge your new 2400W Power Station before first use.
-
Page 2: Product Overview
English PRODUCT OVERVIEW 9 10 DC Output PV Input Cigarette Lighter Socket Output Air Intake Vent with Cooling Fan USB-A Output OLP Reset USB-C Output AC Input LCD Screen Display Earth Terminal AC Output 2400Wx4 LED Light Reminder: If the battery with low power, please charge it before use. - 01 -... -
Page 3: Buttons Function
BUTTONS FUNCTION Button Power ON/OFF Press button to turn on or turn off the equipment. Button MODE The default fast charge mode is switched on, and the button is pressed to switch to the slow charge mode. The slow charge is charged at one quarter of the maximum allowable power. -
Page 4: Lcd Display
LCD DISPLAY AC Input: When the AC charging cable is inserted, this label is displayed on the LCD. DC Input: When the DC DC/SOLAR PV charging cable is inserted, this label is displayed on the LCD. UPS Mode: When the device is in the AC charging state and the AC output is turned on, the UPS mode automatically starts and this label is displayed on the LCD. -
Page 5: Accessory List
AC Outputs: After the AC output switch is turned on, the icon lights up and displays the total ac output power, current remaining time, and current frequency. Cigarette Lighter Socket Output: When the Cigarette Lighter Socket Output is turned on, the icon lights up and shows the total power used by the DC output, the current remaining time and frequency. -
Page 6: General Specifications
GENERAL SPECIFICATIONS General Specs Rated Capacity: 1843.2Wh Net Weight: Product Size: 430*300*280mm Input Recharging Input: Solar Charge Input: DC 12V-75V, 800W Max AC 100V-130V~10A, 60Hz, 1200W Car Charger: DC 12/24V Output AC Output Voltage: Output Waveform: Pure Sine Wave 120V~60Hz Rated Output Power: 2400W LED Light Output: 5W Type-C Output: PD100W Max... -
Page 7: Car Charger
CHARGING FUNCTION DESCRIPTION Recharging Time When charging, the LCD screen will be lit, the LCD display will provide real-time display data of battery charging, and the device will display 100% when it is fully charged. It is recommended to fully charge the device every 3 months to maintain the life of the device. - Page 8 AC Charging Please use the AC charging cable we provided to charge the device. It takes 1.6 to 2.5 hours to full capacity. When the device is charging, if the AC input current is more than 15A, the device will be overloaded, a fault code "E16" will be showed on the LCD, the output will be shut off after 10 seconds.
- Page 9 Connecting Pattern Anderson to MC4 (included in the accessory) Solar Panel (not included in the accessory) Connecting Pattern Anderson to MC4 (included in the accessory) Solar Panel A Solar Panel B (not included in the accessory) (not included in the accessory) - 08 -...
-
Page 10: Ups Mode
UPS MODE UPS Function This product has the bypass mode, does not need to pass through the battery, can directly output from the AC. In UPS mode, when the AC input power of the mains is cut off due to a power outage, the ac input power of the mains can be used in about automatic switch to the product battery within 10 ms to ensure AC output. -
Page 11: Cooling Fan
OPERATING INSTRUCTIONS Power Output Attention Press output switch to select the desired outlet type. The output port must press the corresponding button to activate the port. When activated, the LCD display will turn on and provide detailed information about the charging output. When no output is activated, the LCD screen will automatically turn off. -
Page 12: Power Saving Sleep Mode
Then press the "Power on/off" button for 1 seconds to turn on the device. If "50" is displayed on the LCD, it means that the operating frequency of the power station is 50Hz. If "60" is displayed on the LCD screen, it means 60Hz. If the frequency displayed on the LCD display does not match the frequency of the local power grid, you must change the frequency according to the following Steps:... -
Page 13: Fault Resolution
FAULT RESOLUTION Fault Significance Solutions Code Please disconnect the charging Battery Over-Voltage cable and stop charging Please disconnect the output and Battery Under-Voltage charge the device Please disconnect the output and Inverter Overheating wait 1-2 hours before operation Please disconnect the AC charging Abnormal Input Voltage cable or Solar PV input cable Please disconnect the... -
Page 14: Troubleshooting
TROUBLE SHOOTING The device does not discharge Check whether the connecting wire has been inserted in right place; Check whether the total output power exceeds the rated output power; Check whether the temperature of the equipment is too high. The device is not charging Confirm that the AC socket on the wall and the AC charging cable are fully inserted into the AC input terminal;... -
Page 15: Equipment Cleaning
EQUIPMENT CLEANING Equipment Cleaning Please make sure that the device is disconnected from all input power and output devices. Wipe with a clean, dry, non-soft cotton cloth. Remove all any foreign objects, dirt or other obstructions on the vents on both sides. While cleaning foreign objects in the side vents, do not allow debris, dirt or other blockage to enters the equipment. - Page 16 h) Do not disassemble the power pack, take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock. i) To reduce the risk of electric shock, unplug the power pack from the outlet before attempting any instructed servicing.
- Page 17 DISPOSAL/RECYCLE Do not place equipment and its accessories in the trash. Items must be properly disposed of following local regulations. See www.epa.gov for additional information. - 16 -...
- Page 18 If you have any questions, please feel free to contact us: E-mail: support@grecell.com...
