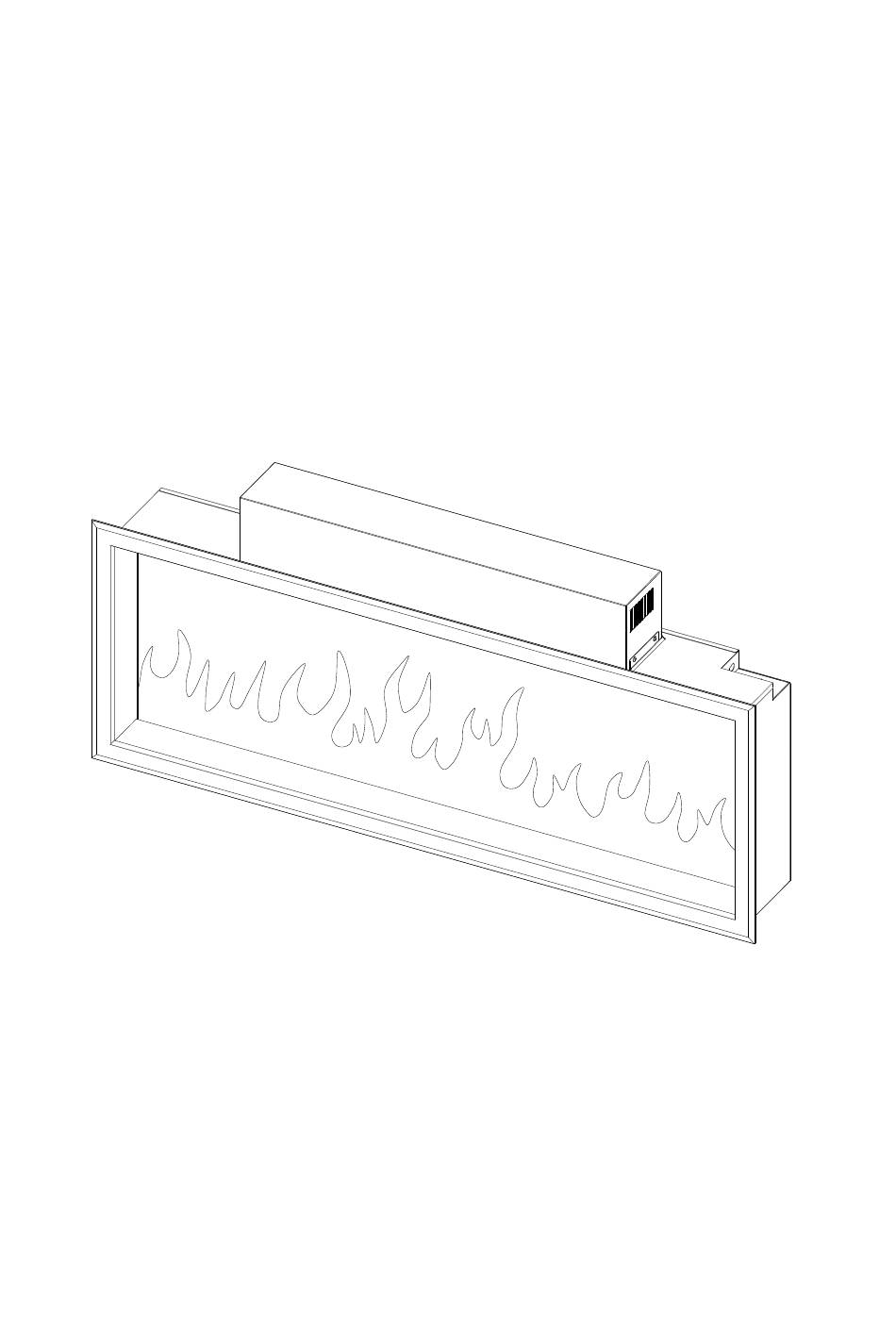

- Page 1 Built-in Fireplace Model No.: E160R-E162R INSTALLATION AND OPERATION INSTRUCTIONS Please read the instructions carefully before installation or use and keep for future reference...
-
Page 3: Table Of Contents
CONTENTS 1. Important Safety Information······················································· 1 2. Technical Specifications·······························································3 3. Parts and Hardware ··································································· 4 4. Appliance Dimensions ································································· 6 5. Installation Instructions·······························································7 6. Operating Instructions·······························································11 6a. Manual Control Panel ··························································· 11 6b. Remote Control ·································································· 13 6c. WiFi Connection ·································································· 15 7. -
Page 4: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1 Read all of the instructions carefully before using this appliance. 1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. - Page 5 1.15 Children and vulnerable people must be supervised at all times when using this appliance, as some parts can become very hot and cause burns. 1.16 Do not use this appliance in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
-
Page 6: Technical Specifications
2. TECHNICAL SPECIFICATIONS Model No. : E160R-E162R Supply Voltage: AC230-240V 50Hz Maximum power consumption: 2KW Power for E160R Flame Effect: 12W Power for E160R Fuel Bed:7.6W Power for E161R/E162R Flame Effect & Fuel Bed are to be updated Heat Output:... -
Page 7: Parts And Hardware
Control PCB Remote Control Receiver Remote Control Transmitter Hardware: Hardware:RF290I V1.2 Frequency: ASK/OOK 433.92MHZ RC01-059C03 Maximum transmit power:10mW Software: V02.002 Hardware:RF290H.V2.0 Software: RCS19A01.V0.35 3. PARTS AND HARDWARE 3.1 Unpacking the fire carefully, make sure that the appliance is intact with no signs of damage caused by transport and no part has been exposed to water. - Page 8 Firebox (1) Remote (1) AAA Battery (2) Power Cord (1) Power Cord Bracket (1) Crystal (1 set) Large Pebble (1 set) Small Pebble (1 set) Logs (1 set) ST4*40 Screw (6) Suction Cup Lifter (2) ST4*8 Screw (1) M4*8 Screw (4) M5*8 Screw (2) Rubber Washer (2)
-
Page 9: Appliance Dimensions
4. APPLIANCE DIMENSIONS Unit:mm Model 1200 1130 1140 E160R E161R 1500 1430 1440 1100 2000 1930 1940 1600 E162R... -
Page 10: Installation Instructions
5. INSTALLATION INSTRUCTIONS Tools Required A screw driver will be needed. Locating the Appliance Your new electric fireplace can be installed virtually anywhere in your home. However, when choosing a location, ensure that the general instructions are followed. • For best results, install out of direct sunlight, water or very damp air. •... - Page 11 5.2 Insert the power cord into the socket on the top right side of the appliance, and secure the power cord bracket with one ST4*8 screw. 5.3 Remove the trim.
- Page 12 5.4 Prepare the framework as a general guide as shown in the picture below: Unit:mm E160R 1150 E161R 1450 E162R 1950 NOTE: Ensure a firm flat surface for positioning of the appliance and secure fixing to avoid vibration and movement of the appliance after cladding.
- Page 13 5.6 Cladding the framework. Note: Hard surfaces can amplify sound. Consider adding some underlay or similar to the inside surface of the cladding. Then secure with four ST4*40 screws. 5.7 Install the trim back and decorate the fuel bed with logs, pebbles, and crystals provided along with the appliance.
-
Page 14: Operating Instructions
6. OPERATING INSTRUCTIONS WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse. - Page 15 MAIN SWITCH Press “I” to turn on the power and press “O” to turn off the power. A long beep indicates the power is on. STAND-BY Press to turn on the memorized flame/down light, fuel bed and mood light effects (if mood light strip exists) or turn off all functions at the same time after power is on.
-
Page 16: 6B. Remote Control
6b. REMOTE CONTROL NOTE: This is a thermostatic remote control. The remote should be in the same room as the fireplace and placed on a flat surface. It must be placed away from the fire so the hot air will not blow on it and affect the thermostatic reading. STAND-BY Press to turn on the memorized flame/down light, fuel bed and mood light effects (if mood light strip exists) or turn off all functions at the same time after... - Page 17 FUEL BED Press to enter the fuel bed effect adjustment mode. Press “←” or “→” to cycle through 8 fuel bed effects, color looping setting and off setting. Press”+” or ”-” to cycle through 5 levels of fuel bed brightness and off setting. MOOD LIGHT This button is applicable when there is mood light strip installed.
-
Page 18: 6C.wifi Connection
The steps below should be followed before programming, when changing to a new remote or the remote control is not correctly set up: • Press the STAND BY button on the control panel for 3 seconds after power is on until you hear two long beeps. - Page 19 You can also use Google Home or Amazon Alexa to command Tuya smart devices. Below are the commands for reference. Google Assistant Commands NOTE: Use your "device name" in place of "my fireplace" below. Function Commands in Manual OK Google, turn on <my fireplace> Fireplace On/Off OK Google, turn off <my fireplace>...
- Page 20 Amazon Alexa Commands NOTE: Use your "device name" in place of "my fireplace" below. NOTE: 1. You can't set the timer by voice control for Alexa. 2. You should set temperature unit for Alexa. Function Commands in Manual Fireplace Alexa, turn on <my fireplace> On/Off Alexa, turn off <my fireplace>...
- Page 21 Alexa, set ambient light brightness on <my fireplace> to 1 (or 2, 3, 4, 5) Ambient Light Alexa, increase ambient light brightness on <my Brightness fireplace> Alexa, decrease ambient light brightness on <my fireplace> Alexa, set <my fireplace> to N Celsius (N=6-35) Set Room Alexa, set <my fireplace>...
-
Page 22: Maintenance
7. MAINTENANCE WARNING: Before any maintenance or cleaning of the exterior of the fireplace, the unit should be disconnected from the power supply until it is cool off. Remote Handset Battery Replacement To replace the battery: A. Slide battery cover open on the remote control. B. -
Page 23: Others
Cleaning the Fireplace Cleaning or polishing products are not recommended. Fingerprints or other marks on the front glass panel can be removed by a piece of soft, damp, lint-free cloth with a good quality household glass cleaner. The front glass panel should always be completely dried with a clean, lint-free cloth or paper towel. - Page 24 Appliance Development Services Ltd Bakers Court, Hopper Hill Road, Scarborough, N. Yorkshire. YO11 3YS Tel 01723 583227...
