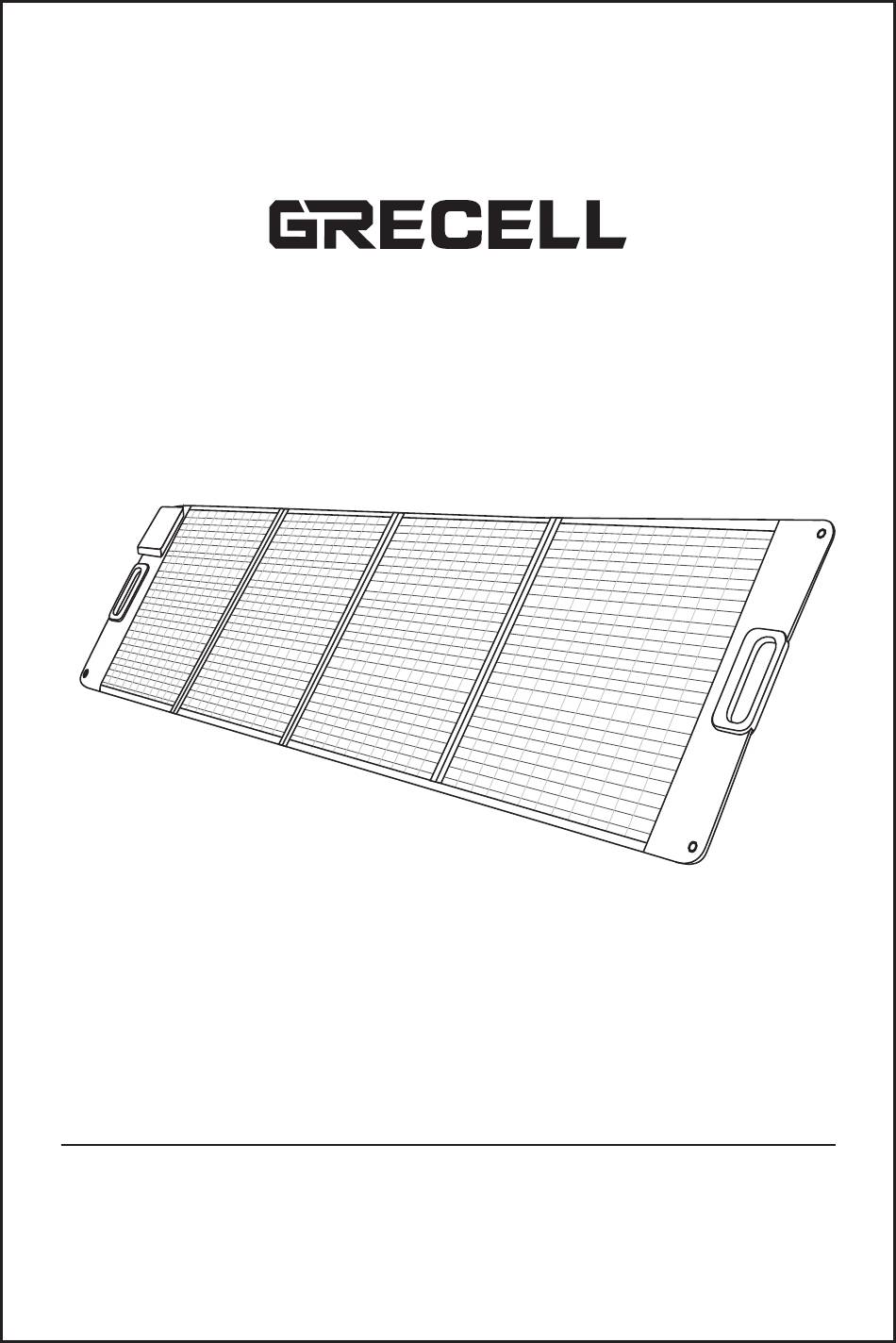

- Page 1 Model: SP120 Pro Portable Solar Panel User Manual Thanks for your purchase from GRECELL. For the best performance and safety purposes, please read this manual carefully before use. Please keep this manual for further reference.
-
Page 2: Package Contents
English Cable Port Overview ① ② ⑤⑥ ③ ④ 1. XT60 2. USB1 3. USB2 4. Type-C 5. Red light when type-c port output 6. Red light during normal operation Package Contents 1 x 120W Foldable Solar Panel 1 x Type C to C Charge Cable 1 x XT60 to 3-in-1 Solar Charge Cable (Anderson/XT60/DC 5.5*2.1 Connector) 1 x 5.5*2.1mm to 5.5*2.5mm Connector... -
Page 3: Specifications
3. Stand up the solar panel 4. Completed. and unfold the brackets; Specifications Model SP120 Pro Peak Power 120W Solar Panel Monocrystalline Silicon Cell Material ETFE+EVA+Glass Fibre Solar Energy Conversion Rate 23.4% Max Load Voltage 21.6V±10% Max Load Current 5.56A±10%... -
Page 4: How It Works
How It Works Unfold the storage bag and solar panel in an area where you can get the most possible sunlight and adjust the angle to the sun. Under the same environment, using double-sided glass solar panels and reflective storage bags can increase power by 10-15%. - Page 5 Build a connection between the solar panel and your solar generators. ● Solar panels generate electricity when panels meet sunlight, so please protect them with a cloth before you plug in a device. ● Plugin the cable to the input of your device first, then the other end of the cable goes towards the output of the solar panel.
-
Page 6: Maintenance
Use and storage temperature conditions should be at -20°C---60°C; Warranty All GRECELL products come with a full 2-year limited warranty from the date of purchase (accessories excluded). It will be out of guarantee if damaged due to incorrect use or force majeure.
