Wren MGDS2 Install Instructions

INSTALL INSTRUCTIONS
Indoor MGDS2 for Axis Cameras
APPLICABLE MODELS
•
MGDS2-BGAXFX1D (smoked dome)
•
MGDS2-CGAXFX1D (clear dome)
DESCRIPTION
The surface detention grade MiniGlobe (MGDS2) provides an extremely durable,
integrated solution for indoor and outdoor security applications. Use the MGDS2 in
critical public locations, mounted anywhere on a wall or ceiling less than 10 feet from
the ground.
Note: This housing is designed to be used with the following Axis camera model
numbers: P3301, P3304, P3343, P3344, M3203, M3204
SUGGESTED INSTALLATION EQUIPMENT
•
Power Drill
•
Small Flat Head Screwdriver
•
3/16" Concrete Drill Bit
•
#8 Toggle Bolts
•
¼" Concrete Anchors, 2
•
¼" Sealing Washers, neoprene, 2
•
½" Conduit Connector
•
Teflon tape or thread sealer

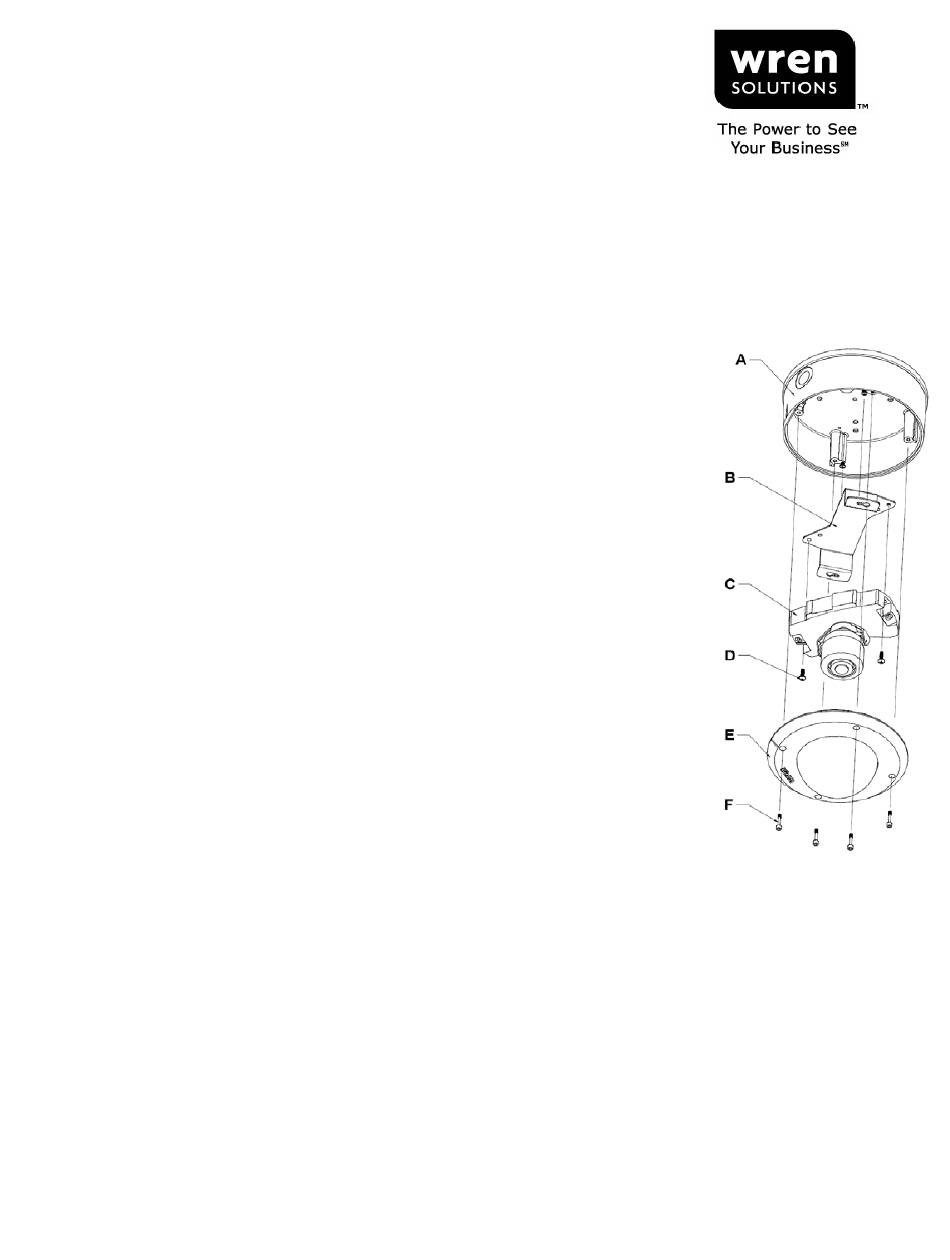

COMPONENT LIST (See Figure 1)
A. Housing Base
B. Axis Camera Bracket
C. Axis Camera (packaged separately)
D. Screw, Pan Hd. Phil #8-32 x ½" (2)
E. Dome and Trim Ring Assembly
F. Tamper-Resistant Screws (4)
G. Hex Wrench (1) (not shown)
WARNINGS AND SAFEGUARDS
Prior to installation and use of this product, please observe the following warnings:
1. Installation and servicing should be done by qualified personnel, and all work done should conform to
local codes.
2. Using replacement parts or accessories other than Wren may invalidate the warranty.
3. Make sure that the installation method is capable of supporting three (3) times the weight of the MGDS
housing and enclosed contents.
4. For outdoor installations, especially those on rough vertical surfaces, additional sealing methods may be
required to prevent moisture from entering the housing.
PREPARATION
PROPERTY OF WREN
124 WREN PARKWAY • JEFFERSON CITY, MO 65109 • TOLL FREE (800) 881-2249 • FAX (877) 893-2317
Page 1 of 3
www.wrensolutions.com
Figure 1
7L370 REV-A 05-03-2012
