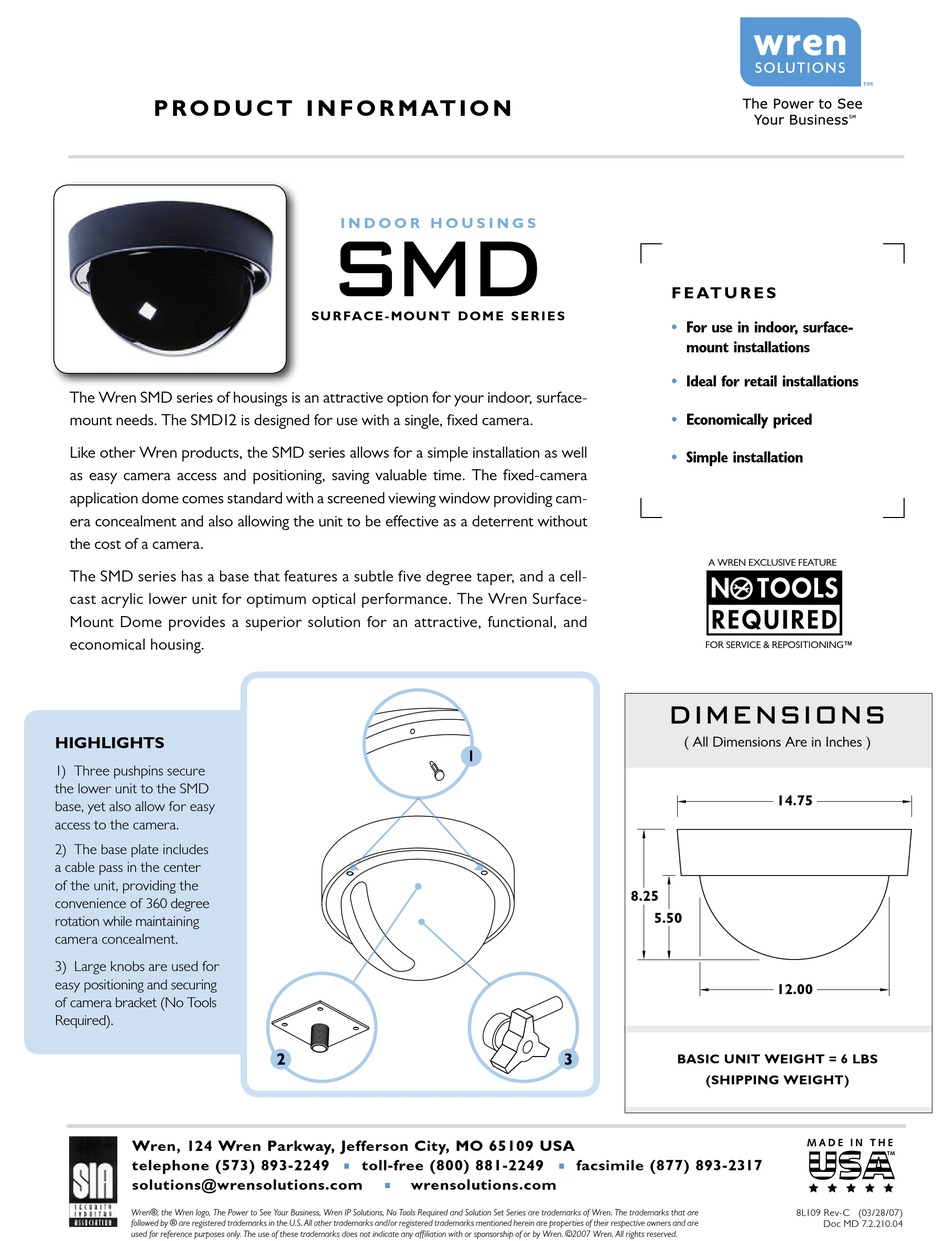

P R O D U C T I N F O R M AT I O N
The Wren SMD series of housings is an attractive option for your indoor, surface-
mount needs. The SMD12 is designed for use with a single, fixed camera.
Like other Wren products, the SMD series allows for a simple installation as well
as easy camera access and positioning, saving valuable time. The fixed-camera
application dome comes standard with a screened viewing window providing cam-
era concealment and also allowing the unit to be effective as a deterrent without
the cost of a camera.
The SMD series has a base that features a subtle five degree taper, and a cell-
cast acrylic lower unit for optimum optical performance. The Wren Surface-
Mount Dome provides a superior solution for an attractive, functional, and
economical housing.
HIGHLIGHTS
1) Three pushpins secure
the lower unit to the SMD
base, yet also allow for easy
access to the camera.
2) The base plate includes
a cable pass in the center
of the unit, providing the
convenience of 360 degree
rotation while maintaining
camera concealment.
3) Large knobs are used for
easy positioning and securing
of camera bracket (No Tools
Required).
Wren, 124 Wren Parkway, Jefferson City, MO 65109 USA
telephone (573) 893-2249
solutions@wrensolutions.com
Wren®, the Wren logo, The Power to See Your Business, Wren IP Solutions, No Tools Required and Solution Set Series are trademarks of Wren. The trademarks that are
followed by ® are registered trademarks in the U.S. All other trademarks and/or registered trademarks mentioned herein are properties of their respective owners and are
used for reference purposes only. The use of these trademarks does not indicate any affiliation with or sponsorship of or by Wren. ©2007 Wren. All rights reserved.
I N D O O R H O U S I N G S
SMD
SU R FA C E - MOU N T D O M E S E R I E S
toll-free (800) 881-2249
wrensolutions.com
F E AT U R E S
• For use in indoor, surface-
mount installations
• Ideal for retail installations
• Economically priced
• Simple installation
A WREN EXCLUSIVE FEATURE
FOR SERVICE & REPOSITIONING™
D I M E N S I O N S
( All Dimensions Are in Inches )
8.25
5.50
BASIC UNIT WEIGHT = 6 LBS
(SHIPPING WEIGHT)
facsimile (877) 893-2317
14.75
12.00
