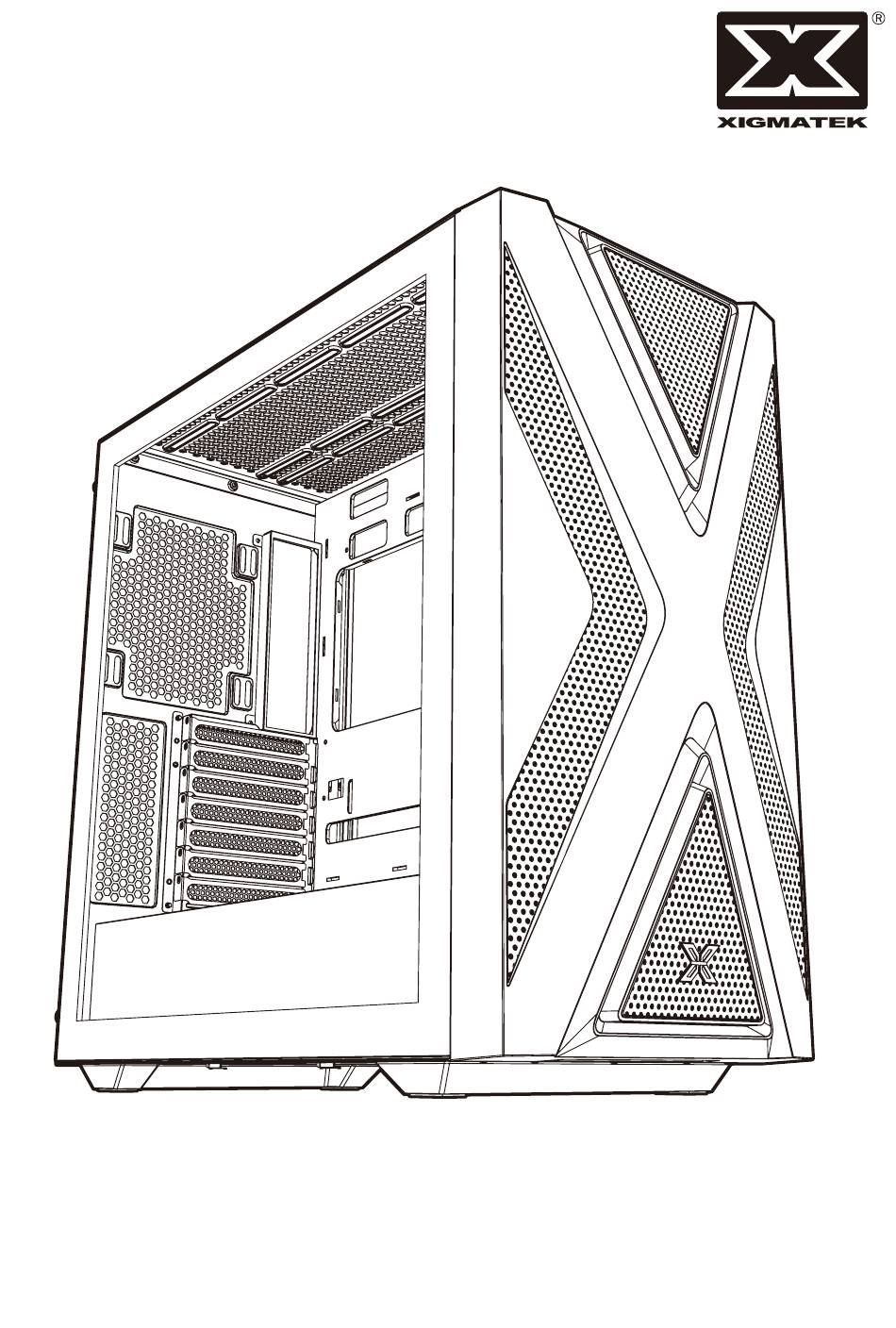

- Page 1 Hyperion User Manual...
- Page 2 Accessory Pack Contents Motherboard Screw x 21 & 2.5” Drive Screw 主機板螺絲 & 2.5吋硬碟螺絲 x 14 3.5” Drive Screw 3.5吋硬碟螺絲 Power Supply Screw 電源螺絲 Motherboard Stand-off 主機板銅柱 Long Fan Screw 風扇安裝螺絲 Cable Tie 束線帶 Expansion Slots Panel 擴充槽面板...
-
Page 3: Case Features
Case Features Front Side Panel Power, Reset Button 前側板 電源, 重開機鈕 Left Tempered Glass Panel USB 3.0 x1, USB 2.0 x2, HD Audio 左側鋼化玻璃 Right Side Panel Dust Filters 右側板 防塵網 Drive Cage 硬碟托盤 Drive Bracket 硬碟支架... -
Page 4: Remove Side Panels
Remove Side Panels Dépose des panneaux Blenden entfernen Extraer los paneles Remoção dos painéis Снятие панелей 卸除側板 パネルの取り外し... - Page 5 Remove Side Panels Dépose des panneaux Blenden entfernen Extraer los paneles Remoção dos painéis Снятие панелей 卸除側板 パネルの取り外し...
-
Page 6: Motherboard Installation
Motherboard Installation Installation de la carte mère Motherboard installieren Instalación de la placa base Instalação da placa principal становка материнской платы 安裝主機板 マザーボードの取り付け M-ITX M-ATX E-ATX... - Page 7 Rear Motherboard Ports Ports des connecteurs arrière de la carte mère Anschlüsse der rückseitigen Motherboard-Steckplätze Puertos de conectores traseros de la placa base Portas dos conectores traseiros da placa principal Порты задних разъёмов материнской платы 背插主機板孔位 背面挿入式マザーボードのポート M-ATX...
- Page 8 Motherboard Installation Installation de la carte mère Motherboard installieren Instalación de la placa base Instalação da placa principal становка материнской платы 安裝主機板 マザーボードの取り付け...
- Page 9 Graphics Card Installation Installation d'une carte supplémentaire Erweiterungskarte installieren Instalación de la tarjeta complementaria Instalação de placas adicionais Установка платы расширения 安裝顯示卡/擷取卡 アドオンカードの取り付け...
- Page 10 Vertical GPU Bracket Mode Mode de support vertical du GPU Vertikaler GPU-Halterungsmodus Modo de soporte vertical para GPU Modo de suporte vertical da GPU Режим вертикального крепления GPU 垂直顯卡支架模式 垂直GPUブラケットモード...
-
Page 11: Power Supply Installation
Power Supply Installation Installation de l'alimentation électrique Installation des Netzteil Instalación de la fuente de alimentación Instalação da fonte de energia Установка источника питания 電源供應器安裝 電源装置の取り付け... - Page 12 3.5” & 2.5” Drive Installation Installation d'un SSD de 2,5" / disque dur de 3,5" 2,5-Zoll-SSD / 3,5-Zoll-Festplatte installieren Instalación de la unidad de estado sólido de 2,5"/disco duro de 3,5" Instalação da unidade de SSD de 2,5"/disco rígido de 3,5" Установка...
-
Page 13: Fan Installation
Fan Installation Installation du ventilateur Lüfter installieren Instalación del ventilador Instalação da ventoinha Установка вентилятора 安裝風扇 ファンの取り付け 140mm 140mm 120mm 120mm 120mm 120mm 120mm 120mm 120mm Front: 120mm x3 or 140mm x3 MB: 120mm x2 (E-ATX MB Width ≤28.5cm) Top: 120mm x3 or 140mm x2 PSU Shroud: 120mm x2 Rear: 120mm x1 or 140mm x1... -
Page 14: Liquid Cooling Installation
Liquid Cooling Installation Installation de refroidissement liquide Installation der Wasserkühlung Instalación de refrigeración líquida Instalação de refrigeração líquida Установка системы жидкостного охлаждения 液冷散熱安裝 水冷装置の取り付け Front: 240/280/360 MB: 240 (E-ATX MB Width ≤28.5cm) Top: 240/280/360 Rear: 120... - Page 15 PC Case Gabinete de PC Boîtier PC Корпус ПК PC-Gehäuse PC機殼 Caja de PC PCケース is Registered Trademark of Xigmatek Co., LTD. Copyright 2025-2029 All Rights Reserved Made in China www.xigmatek.com sales@xigmatek.com...
