Summary of Contents for AlgoForce E1500 plus

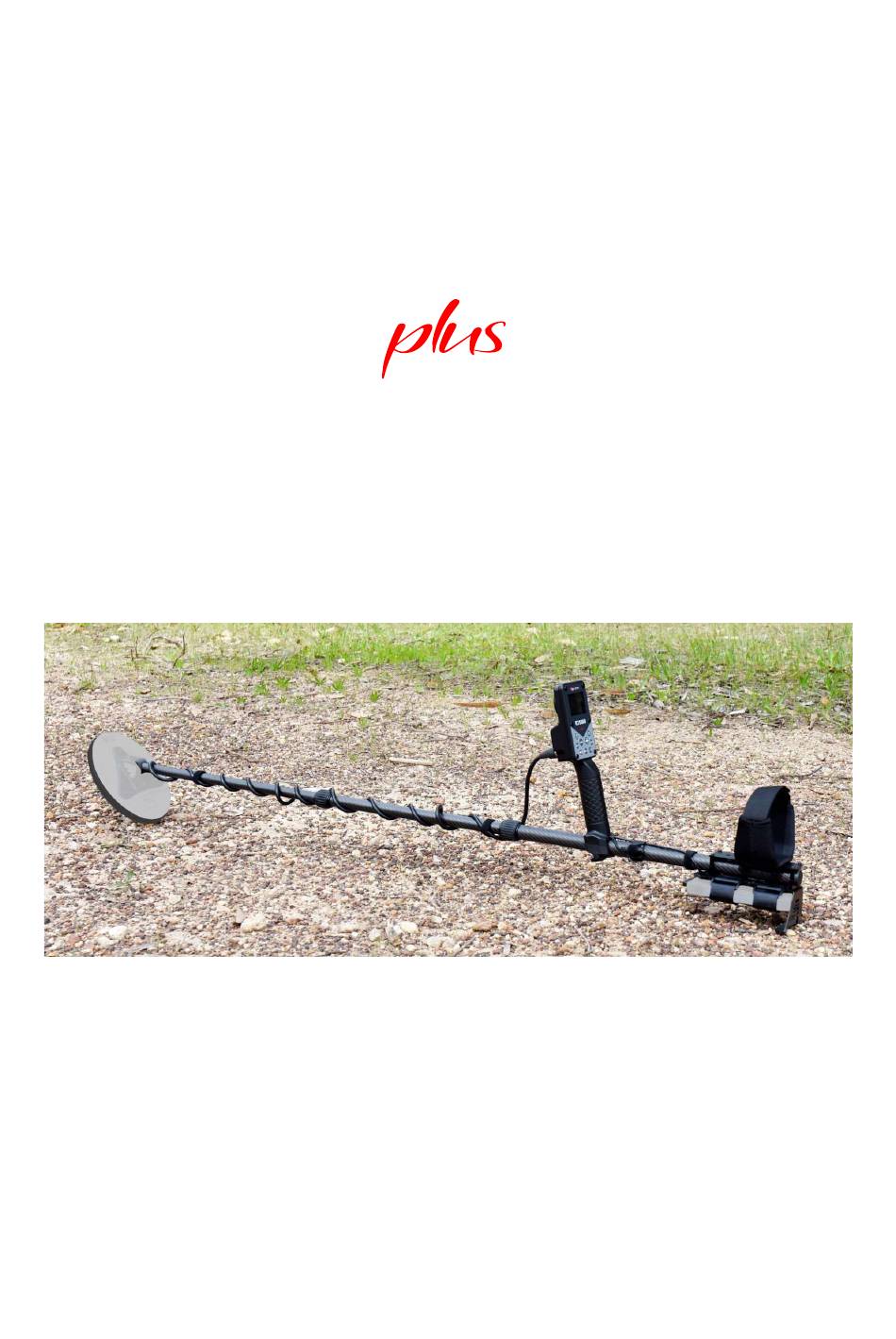

- Page 1 AlgoForce E1500 User Manual V1.1.3 Uncover Gold with Ultra-Fine Pulse Induction Technology: VLF Sensitivity, PI Power, Affordable Excellence! Designed & Assembled in Australia by ALGOFORCE PTY LTD...
-
Page 2: Table Of Contents
Assembly ..............................8 Quick Start ............................10 Ground Balancing Methods in Metal Detectors.................. 14 Why the E1500 Plus Uses only Auto Ground Balance ................. 14 User Settings ............................15 Software Upgrade Instruction ......................20 Bug Report and Feature Request ......................21 Safety and Care ............................ -
Page 3: Introduction
For experienced PI users accustomed to estimating nugget size from audio cues, the AlgoForce E1500 Plus can also help to estimate size or conductivity through its stable conductive target ID (0- 99), even in highly mineralised soils. -
Page 4: Key Features
Collapsible to 59cm for compact storage 59cm NOTE: Neither the power bank nor the coil is included in the AlgoForce E1500 Plus Basic Package. Coils larger than the Nugget Finder 14”x9” Evolution Mono with electrical parameters within spec will work with the E1500 Plus control box. However, the shaft may become wobbly with extra-large,... - Page 5 AlgoForce E1500 Soil Mineralisation Low Tone Signal Strength High Tone Signal Strength Vibration Level Backlight Level Audio Volume Level Dual Ground Balance Values Selected Coil Size Ground Drift Indicator (G.D.I) Auto GB In Progress Indicator Real-time Scrolling Signal Detection Threshold...
-
Page 6: Carton Contents
* Images are for illustra ve purposes only and do not represent actual size. * Cables, screws, straps, and armrest cover may vary by package. * The AlgoForce E1500 Plus Basic Package does not include a coil or power bank. -
Page 7: E1500 Evolution: E1500 Vs E1500 Plus
Additionally, while the E1500’s headphone connector is positioned at the rear of the control box, the E1500 Plus places it conveniently in the handle, with an extension cable secured along the upper shaft for easier user access. -
Page 8: Assembly
AlgoForce E1500 Assembly Plug the USB cable and headphone extension cable into the control box. ① Note: To keep the exposed length of the headphone extension cable short, you can store any excess cable inside the handle, as illustrated in the following picture. - Page 9 AlgoForce E1500 Set the shaft to the appropriate length and attach the coil. ⑥ Plug the coil connector into the control box. ⑦ Use cable straps to tie the coil cable and USB cable to the shaft. ⑧ Use the Velcro strap with buckle to secure the headphone socket to the shaft.
-
Page 10: Quick Start
AlgoForce E1500 Quick Start Soil Mineralisation Low Tone Signal Strength High Tone Signal Strength Vibration Level Backlight Level Audio Volume Level Dual Ground Balance Values Selected Coil Size Ground Drift Indicator (G.D.I) Auto GB In Progress Indicator Real-time Scrolling Signal... - Page 11 AlgoForce E1500 II. Factory Reset (if necessary) Hold the Minus and Plus buttons for 3 seconds in Miscellaneous. III. Calibrate Coil (see Coil Selection in page 13) IV. Select Soil Type (see Soil Type in page 12) V. Perform Auto Frequency Scan (Auto FS) (if necessary to select the quietest frequency to eliminate electromagnetic interference) Activate Auto FS by holding the Return/Auto FS button in the Main Detection UI.
- Page 12 AlgoForce E1500 The Sensitivity and Volume/Vibration settings in the Pinpoint UI are separated from the Main Detection UI. This separation ensures that while the main detection Sensitivity and Volume/Vibration are set for general detection, the pinpoint Sensitivity and Volume/Vibration can be finely adjusted for the accurate location of metal targets.
- Page 13 AlgoForce E1500 100 Tones: Each conductivity target ID is associated with a unique audio pitch ranging from 250Hz to 1042Hz. Higher conductivity target IDs produce higher audio pitches, facilitating differentiation of targets. 100 Tones Inv.: Each conductivity target ID is associated with a unique audio pitch ranging from 250Hz to 1042Hz.
-
Page 14: Ground Balancing Methods In Metal Detectors
Why the E1500 Plus Uses only Auto Ground Balance The Algoforce E1500 Plus is purposefully designed with only auto ground balance to strike a balance between ease of use and maximum sensitivity. Manual ground balance, while effective, can be intimidating or impractical for new users, requiring constant attention and expertise. -
Page 15: User Settings
AlgoForce E1500 User Settings Audio Volume: Modify by pressing the Vol/Vibration buttons. Vibration: Adjust by holding the Vol/Vibration buttons. Note: Pinpoint mode has separate volume and vibration controls from the main detection mode. Backlight Level: Control by pressing the Backlight/Theme button. - Page 16 Mineralised: This option maintains the performance of previous software versions, suitable for mineralised soils. Mild: This option utilises AlgoForce's ZeroGB technology, which disables ground balance to enhance sensitivity for nuggets, coins, and treasures of all sizes in extremely mild gold fields, parks, and fields.
- Page 17 AlgoForce E1500 highly mineralised soils. It is highly recommended for locating medium to large gold nuggets in various ground conditions. Large: Reserve Large Gold mode for use in extremely mineralised soil with high levels of wet salt. When used with the Nugget Finder 14"x9"...
- Page 18 AlgoForce E1500 7. Coil Selection In the Coil Selection setting, there are five coil icons, each storing the calibration parameters and the coil size for a different coil. This means the detector can store calibration parameters for up to five coils.
- Page 19 AlgoForce E1500 9. Mic Volume The control box has a microphone that captures ambient sounds, which can then be immediately played back through the headphone. This feature allows the user to simultaneously hear both the ambient sounds and detection audio. The Mic Volume setting allows the user to adjust the volume of the ambient sound playback.
-
Page 20: Software Upgrade Instruction
AlgoForce ports in the list. (Note: For Windows 7 and Windows 8, if the USB device driver is not already installed on your PC, the AlgoForce port will not be displayed. In this case, download the USB device driver from https://algoforce.com.au/pages/downloads... -
Page 21: Bug Report And Feature Request
Safety and Care To ensure safe use and longevity of your AlgoForce E1500 Plus, please follow these guidelines: Do not immerse the control box in water; it is not water-resistant. -
Page 22: Emc Compliance
AlgoForce E1500 EMC Compliance AlgoForce E1500 Plus has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 23: Returns Policy
AlgoForce E1500 Returns Policy If you purchase the AlgoForce E1500 Plus from a dealer, please reach out to them directly for any returns. Return policies may vary by dealer, so it's recommended to confirm these details with your dealer prior to purchase. -
Page 24: Warranty Information
Pty Ltd at: AlgoForce Pty Ltd, PO BOX 393, GLENSIDE SA AUSTRALIA 5065. 3. Diagnosis and Quotation If the unit is sent to AlgoForce Pty Ltd, we will diagnose the issue upon receipt and email the customer a quote, including return postage costs. If the item is not under warranty, repair... - Page 25 Repairs will proceed, and the item will be returned after payment of any applicable charges. Note: If the dealer fails to send an issue confirmation email to AlgoForce Pty Ltd or if the email lacks necessary details to verify the warranty status, AlgoForce Pty Ltd reserves the right to apply repair fees, even if the item is within the warranty period.
- Page 26 AlgoForce E1500 Repairs come with a 90-day warranty. Please be aware that user-stored data in the detector may be lost during repairs. Items presented for repair may be replaced with refurbished goods or parts of the same...
-
Page 27: Specifications
AlgoForce E1500 Specifications Ultra-Fine PI Technology �� Conductive Target ID 0-99 Fundamental Transmit Frequency 1500 Hz (adjustable) Coil * Mono * Compatible with GPX 4500/5000 aftermarket mono coils * The Nugget Finder 8"x6" Sadie and the Coiltek 9” Elite coils are recommended for outstanding ultra-fine gold detection and excellent EMI immunity. -
Page 28: Release Note For Software V1.1.3
AlgoForce E1500 Release Note for Software V1.1.3 Software Version 1.1.3 is designed for both the E1500 and the E1500 Plus. By default, the E1500 Plus comes pre-installed with this version unless a newer version becomes available. For E1500 users, rest assured that all future software versions developed for the E1500 Plus will remain fully compatible with the E1500.
