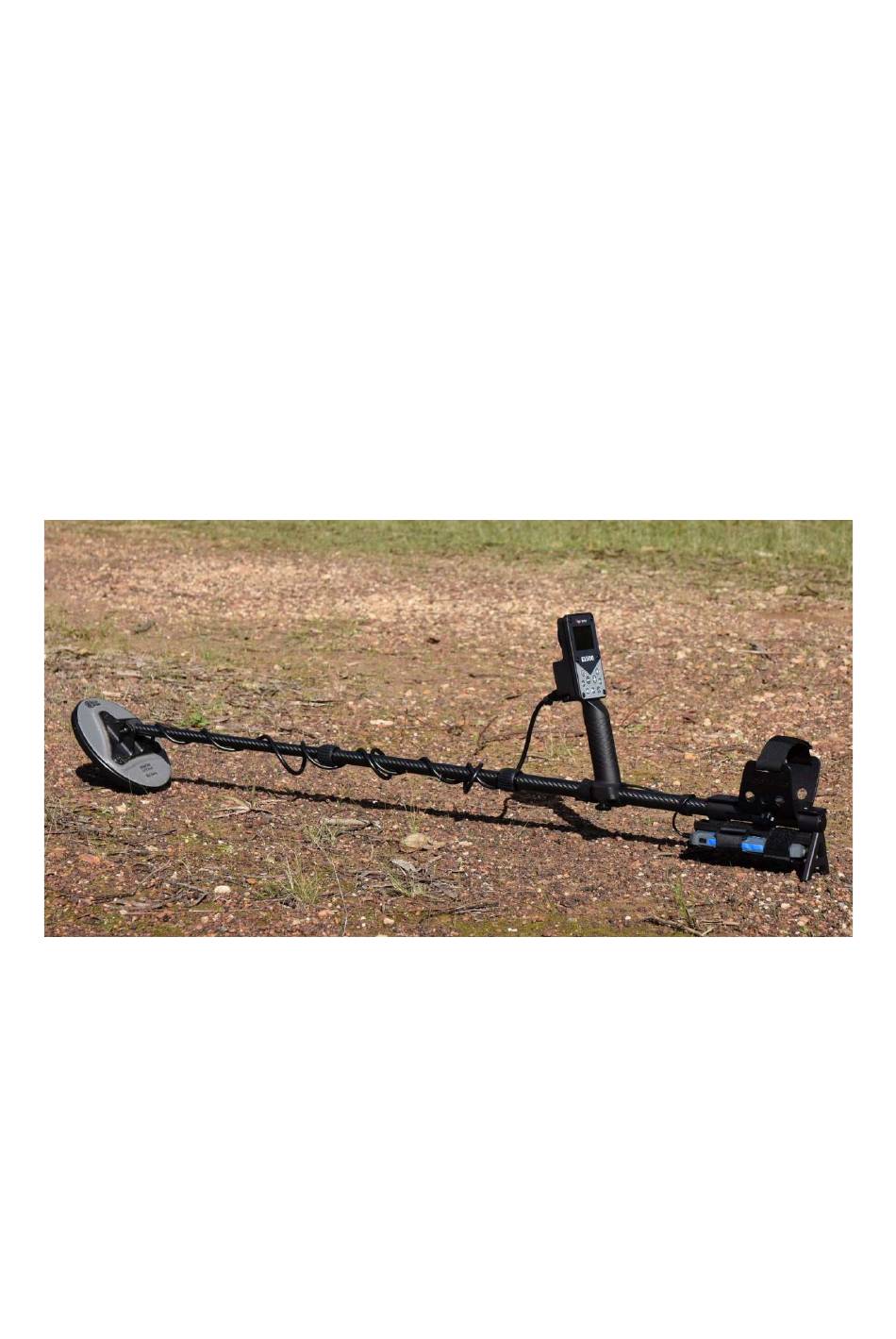

- Page 1 AlgoForce E1500 User Manual V1.0.8 Uncover Gold with Ultra-Fine Pulse Induction Technology: VLF Sensitivity, PI Power, Affordable Excellence! Designed & Assembled in Australia by ALGOFORCE PTY LTD...
-
Page 2: Table Of Contents
AlgoForce E1500 Table of Contents Introduction ............................3 Key Features ............................4 Carton Contents ............................. 6 Assembly ..............................7 Quick Start .............................. 9 User Settings ............................11 Software Upgrade Instruction ......................14 Bug Report and Feature Request ......................15 Safety and Care ............................ 15 EMC Compliance ........................... -
Page 3: Introduction
VLF counterparts. The AlgoForce E1500 is a pulse induction metal detector that excels at locating small gold nuggets in often complex mineralised soils found in most goldfields, all at a remarkably reasonable cost. -
Page 4: Key Features
AlgoForce E1500 Key Features Arm cuff easily adjustable Universal USB powerbank holder Vibrating motor Powered by USB powerbank 2.7” graphic LCD with backlight (many options with high capacity and affordable price) Loudspeaker Microphone (ambient sound awareness) 3.5mm headphone socketxxxxx Three-piece telescopic carbon fibre rods... - Page 5 AlgoForce E1500 Soil Mineralisation High Tone Signal Strength Low Tone Signal Strength Backlight Vibration Dual Ground Balance Values Audio Volume Ground Drift Indicator Selected Coil Size Real-time Scrolling Signal Detection Threshold Miscellaneous Sensitivity Coil Selection Audio Threshold Mic Volume Audio Tone...
-
Page 6: Carton Contents
AlgoForce E1500 Carton Contents * No actual size representation * Package-specific carry case, carry bag, USB cable, screws, and straps * Illustrative only images used... -
Page 7: Assembly
AlgoForce E1500 Assembly 1-2. Plug the USB cable into the control box. 3-4. Mount the control box onto the stem using two M5x20 screws. 5. Install the standard or large arm strap onto 9. Put the powerbank in the holder. - Page 8 AlgoForce E1500 21-22. Connect the coil connector to the 23. Plug in the headphone to the control box control box. (optional). For Storage: 24. Release the two twist locks. 25. Collapse the rods and rotate the coil for compact storage.
-
Page 9: Quick Start
AlgoForce E1500 Quick Start Press Vol/Vibration buttons to modify Audio Volume. Hold Vol/Vibration buttons to adjust Vibration. Press the Backlight Adjust button for backlight control. Use the Minus and Plus buttons to modify Sensitivity. To adjust other settings: 1) Press Right/Auto GB in the Main Detection UI to access the menu. - Page 10 AlgoForce E1500 VII. Begin Detecting Keep the coil close to the ground and swing it left and right at a pace of about 1 m/s. Ideally, maintain a constant distance between the coil and the ground surface during the swing to avoid picking up excess ground noise.
-
Page 11: User Settings
AlgoForce E1500 User Settings Audio Volume: Modify by pressing the Vol/Vibration buttons. Vibration: Adjust by holding the Vol/Vibration buttons. Pinpoint mode has separate volume and vibration controls from the main detection mode. Backlight Level: Control by pressing the Backlight Adjust button. - Page 12 For a large coil like the 14"x9" Evolution Mono, employ Normal or Large Gold mode for deep beach discoveries. No ground balance is needed. As a PI detector, the AlgoForce E1500 naturally rejects seawater signals; the detection mode dictates the level of rejection, ranging from Ultra-Fine Gold to Large Gold, becoming more aggressive.
- Page 13 AlgoForce E1500 7. Coil Selection In the Coil Selection setting, there are five coil icons, each storing the calibration parameters and the coil size for a different coil. This means the detector can store calibration parameters for up to five coils.
-
Page 14: Software Upgrade Instruction
AlgoForce ports in the list. (Note: If the USB device driver is not already installed on your PC, the AlgoForce port will not be displayed. In this case, download the USB device driver (Driver.zip) from https://algoforce.com.au/pages/downloads... -
Page 15: Bug Report And Feature Request
Caution: AlgoForce E1500 is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. -
Page 16: Returns Policy
AlgoForce E1500 Returns Policy If you buy AlgoForce E1500 from a dealer, please contact the dealer for any returns. If you purchase AlgoForce E1500 from AlgoForce's Amazon store, please contact Amazon for any returns. If you purchase AlgoForce E1500 from AlgoForce's website (https://algoforce.com.au) or directly from AlgoForce Pty Ltd, please refer to the following paragraphs on this page regarding the returns policy. -
Page 17: Warranty Information
The control box, stem, and arm cuff of the AlgoForce E1500 are covered by a 2-year warranty for any manufacturing issues. The warranty starts from the date of purchase and can be transferred. It does not cover damage resulting from an over or reverse voltage supply, misuse, abuse, modification, alteration, water damage, accidents, or neglect. -
Page 18: Specifications
AlgoForce E1500 Specifications Ultra-Fine PI Technology �� Conductive Target ID 0-99 Fundamental Transmit Frequency 1500 Hz (adjustable) Coil * Mono * Compatible with GPX 4500/5000 aftermarket mono coils * The Nugget Finder 8"x6" Advantage Sadie coil is recommended for outstanding ultra-fine gold detection and excellent EMI immunity. -
Page 19: Release Note For Software V1.0.8
AlgoForce E1500 Release Note for Software V1.0.8 Software V1.0.8 was released on 13/02/2024. The following changes were made with respect to the previous software V1.0.7: 1. The activation time for a long key press function has been reduced from 1.5 seconds to 0.7 seconds.
