Summary of Contents for Asus TUF VG27UQ1A Series

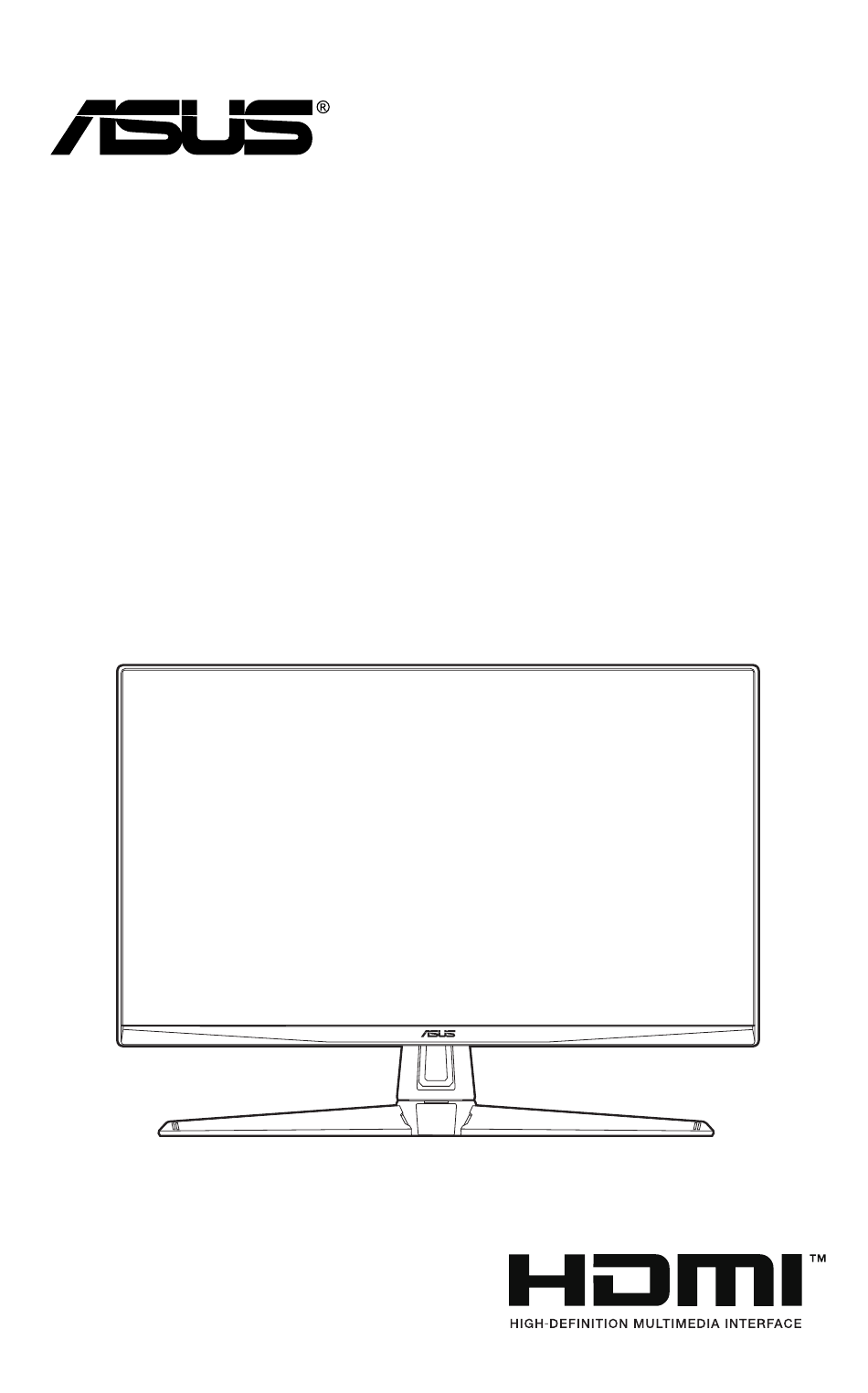

- Page 1 TUF Gaming Monitor VG27UQ1A series User Guide...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification or alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Contents Notices ......................iv Safety information ..................v Care & Cleaning ..................vii Takeback Services ..................viii Product information for EU energy label ..........viii Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 Monitor introduction ..............1-2 1.3.1 Front view ............... -
Page 4: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. - Page 6 Prevent Tipping When using the display, fasten the monitor to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Cord M4 or M6 screw • Display design may differ from those illustrated. •...
-
Page 7: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. -
Page 8: Takeback Services
About Flicker https://www.asus.com/Microsite/display/eye_care_technology/ Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. -
Page 9: Welcome
Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Monitor Introduction
Monitor introduction 1.3.1 Front view 5-way) button: • Turns on the OSD menu. Enacts the selected OSD menu item. • Increases/Decreases values or moves your selection up/down/left/right. • Displays the input selection menu when the monitor enters standby mode or displays the “NO SIGNAL“ message. •... -
Page 11: Back View
Earphone jack. This port is only available when an HDMI/DisplayPort cable is connected. This port is for service only. (USB Type-C) AC-IN port. This port connects the power cord. Kensington lock slot. Control buttons. ASUS TUF Gaming Monitor VG27UQ1A series... - Page 12 Chapter 1: Product introduction...
-
Page 13: Assembling The Monitor Arm/Base
Fix the base to the arm by fastening the bundled screw(s). We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Hinge screw size: M4 x 10 mm. Base screw size: M6 x 16.2 mm. ASUS TUF Gaming Monitor VG27UQ1A series... -
Page 14: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. •... -
Page 15: Detaching The Arm (For Vesa Wall Mount)
• The VESA wall mount kit (100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 22.7kg (Screw size: M4 x 10 mm) ASUS TUF Gaming Monitor VG27UQ1A series... -
Page 16: Cable Management
When these cables are connected, you can choose the desired signal from the Input Select item in the OSD menu. If you need to replace the power cord or the connection cable(s), please contact ASUS customer service. Chapter 2: Setup... -
Page 17: Turning On The Monitor
Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ON. ASUS TUF Gaming Monitor VG27UQ1A series... - Page 18 Chapter 2: Setup...
-
Page 19: Osd (On-Screen Display) Menu
) button up/down to change the settings of the selected function. To exit and save the OSD menu, press the button or move the ) left repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-3. ASUS TUF Gaming Monitor VG27UQ1A series... -
Page 20: Osd Function Introduction
3.1.2 OSD function introduction Gaming ASUS TUF GAMING 3840x2160 GameVisual Input Select 60Hz VG27UQ1A Racing Mode DisplayPort Variable OD Gaming Variable Refresh Rate ELMB Setup Image GamePlus GameVisual Color Shadow Boost ASUS DisplayWidget Center Input Select MyFavorite Back Enter EXIT •... - Page 21 Video intelligence Technology. FPS Mode: This is the best choice for First Person Shooter game playing with GameVisual Video intelligence Technology. sRGB Mode: This is the best choice for viewing photos and graphics from PCs. ASUS TUF Gaming Monitor VG27UQ1A series...
- Page 22 This function is not available in sRGB Mode MOBA Mode. • ASUS DisplayWidget Center: Displays a QR code for you to access the information about ASUS DisplayWidget Center. Image ASUS TUF GAMING 3840x2160 GameVisual Input Select...
- Page 23 Brightness, Contrast, ASCR, Blue Light Filter, Display Color Space, Color Temp., Saturation, Gamma, Power Saving Mode, VividPixel. • ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. When this function is activated, the following function(s) will be disabled: ELMB, ELMB SYNC, ELMB Setup.
- Page 24 Macular Degeneration). Blue light Filter reduces 70% (max.) of harmful blue light to avoid CVS (Computer Vision Syndrome). • VividPixel: This function enhances the outline of the displayed picture and generates high-quality images on screen. Color ASUS TUF GAMING 3840x2160 GameVisual Input Select 60Hz VG27UQ1A...
-
Page 25: Input Select
Available function choices: GamePlus, GameVisual, Variable OD, Brightness, Mute, Shadow Boost, Contrast, Input Select, HDR Setting, Blue Light Filter, Color Temp., Volume, Customized Setting-1, Customized Setting-2. • Customized Setting: Setting 1/Setting 2: Loads/Saves all settings on the monitor. ASUS TUF Gaming Monitor VG27UQ1A series... -
Page 26: System Setup
System Setup ASUS TUF GAMING 3840x2160 GameVisual Input Select VG27UQ1A 60Hz Racing Mode DisplayPort Language System Setup Sound Power Indicator Power Key Lock Key Lock Power Setting OSD Setup DisplayPort Stream Back Enter EXIT • Language: There are 23 languages for your selection, including English,... - Page 27 DisplayPort 1.2 or DisplayPort 1.4 by graphic card DP version. • DSC Support: Enables or disables the DSC (Display Stream Compression) support. • Information: Shows the monitor information. • All Reset: Selecting Yes allows you to restore the default settings. ASUS TUF Gaming Monitor VG27UQ1A series...
-
Page 28: Specifications Summary
3.2 Specifications summary Panel Type TFT LCD Panel size 27”W (16:9, 68.5 cm) wide screen Max. Resolution 3840 x 2160 Pixel pitch 0.1554 mm x 0.1554 mm Brightness (Typ.) 300 cd/m Contrast Ratio (Typ.) 1000:1 Contrast Ratio (Max.) 100,000,000:1 (with ASCR on) Viewing angle(H/V) CR>10 178˚/178˚... - Page 29 MEPS, VCCI, PSE, PC Recycle, J-MOSS, KC, KCC, KMEPS, PSB, Vietnam Energy Efficiency, CEC, Low Blue Light, Flicker Free *Specifications are subject to change without notice. **Measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection. ASUS TUF Gaming Monitor VG27UQ1A series 3-11...
-
Page 30: Outline Dimensions
3.3 Outline dimensions 366.5 [14.4] 335.7 [13.2] Active Area 213.8 [8.4] 108.3 [4.3] 76.4 [3] 137.4 [5.4] 110.4 [4.3] 455 [17.9] 88.5 [3.5] 100.1 [3.9] 3-12 Chapter 3: General Instructions... -
Page 31: Troubleshooting (Faq)
• Ensure that the signal cable is properly connected to the monitor and the computer. • Adjust the volume settings of both your monitor and signal source. • Ensure that the computer sound card driver is properly installed and activated. ASUS TUF Gaming Monitor VG27UQ1A series 3-13... -
Page 32: Supported Operating Mode
3.5 Supported operating mode Aspect Control Resolution DisplayPort HDMI frequency Refresh rate Refresh rate 640 x 480 60Hz 60Hz 640 x 480 75Hz 75Hz 800 x 600 60Hz 60Hz 800 x 600 75Hz 75Hz 1024 x 768 60Hz 60Hz 1024 x 768 75Hz 75Hz 1280 x 960... - Page 33 1600 x 1200 60Hz 60Hz 1920 x 1080 60Hz 60Hz 3456 x 1944 59.976Hz 59.976Hz 2560 x 1440 119.998Hz 119.998Hz 2560 x 1440 59.951Hz 59.951Hz 3456 x 1944 119.999Hz 119.999Hz 3456 x 1944 143.986Hz 143.986Hz ASUS TUF Gaming Monitor VG27UQ1A series 3-15...
- Page 34 Aspect Control Resolution DisplayPort HDMI frequency Refresh rate Refresh rate 640 x 480 60Hz 60Hz 640 x 480 75Hz 75Hz 800 x 600 60Hz 60Hz 800 x 600 75Hz 75Hz 1024 x 768 60Hz 60Hz 1024 x 768 75Hz 75Hz 1280 x 960 60Hz 60Hz...
- Page 35 1920 x 1080P 25Hz 25Hz 1920 x 1080P 29.97Hz/30Hz 29.97Hz/30Hz 1920 x 1080P 50Hz 50Hz 1920 x 1080P 59.94Hz/60Hz 59.94Hz/60Hz 1920 x 1080P 100Hz 100Hz 1920 x 1080P 119.88/120Hz 119.88/120Hz 1920 x 1080P ASUS TUF Gaming Monitor VG27UQ1A series 3-17...
