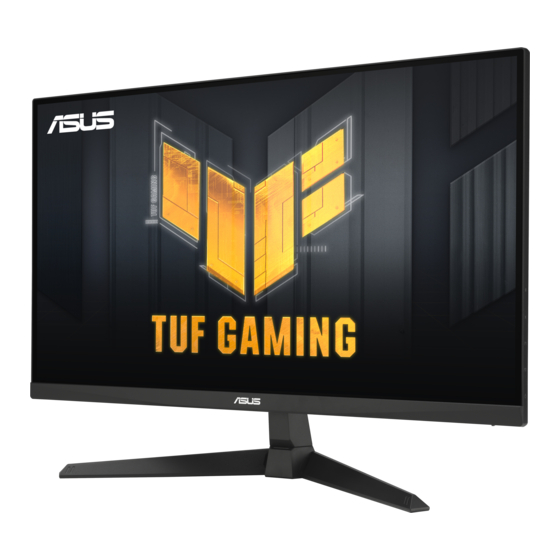

- Page 1 VG279Q3A Series LCD Monitor User Guide...
-
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. - Page 4 Declaration of Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment, these harmonized standards published under Directives of Official Journal of the European Union.
-
Page 5: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. - Page 6 WARNING Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures. Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240V, 20A (maximum). If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter.
- Page 7 0.01% by weight in homogenous materials for cadmium, except of exemptions listed in Schedule 2 of the Rule. ASUS CONTACT INFORMATION ASUSTeK Computer Inc. ASUS Computer International (America) ASUS Computer GmbH (Germany and Austria) Address 1F., No. 15, Address 48720 Kato Rd, Fremont, Address Harkortstr.
-
Page 8: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. •... -
Page 9: Takeback Services
These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. -
Page 10: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 11: Assembling The Monitor
Assembling the monitor To assemble the monitor: Align the screw hole on the arm with the bundled screw on the base. Then insert the base into the arm. Fix the base to the arm by fastening the bundled screw. Chapter 1: Product Introduction... -
Page 12: Connect Cables
Connect cables 1.4.1 Rear of the LCD monitor HDMI-2 HDMI-1 AC-IN Port HDMI-1 Port HDMI-2 Port DP - in Port Earphone - out Port Kensington Lock ASUS LCD Monitor VG279Q3A Series... -
Page 13: Monitor Introduction
Monitor introduction 1.5.1 Using the Controls button Use the control button on the back of the monitor to adjust the image settings. Power Indicator: • The color definition of the power indicator is as the below table. Status Description White Amber Standby mode Power Button:... - Page 14 50:00 Stopwatch 60:00 90:00 Dispaly Alignment Close Button: • Exit the OSD menu. (5-way) Button: • Turn on the OSD menu. Enact the selected OSD menu item. • Increase/Decrease values or moves your selection up/down/left/right ASUS LCD Monitor VG279Q3A Series...
-
Page 15: Adjusting The Monitor
For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. • You can adjust the monitor’s angle from +23˚ to -5˚ . ASUS LCD Monitor VG279Q3A Series... -
Page 16: Detaching The Arm/Stand (For Vesa Wall Mount)
Detaching the arm/stand (for VESA wall mount) The detachable stand of this monitor is specially designed for VESA wall mount. To detach the arm/stand Disconnect power and signal cables. Carefully put the monitor facedown on its EPS packaging. Remove the four (4) screws securing the arm to the rear of the monitor. -
Page 17: Outline Dimension
Outline dimension Unit: mm 257.64 100.00 257.64 59.54 615.29 13.76 2.88 59.77 192.55 456.05 ASUS LCD Monitor VG279Q3A Series... -
Page 18: Osd (On-Screen Display) Menu
Press the Center key to enter the slide bar and then use the or buttons, according to the indicators on the menu, to make your changes. Press the ◄/► to move left / right menu. ASUS LCD Monitor VG279Q3A Series... -
Page 19: Osd Function Introduction
3.1.2 OSD Function Introduction Gaming This function contains seven sub-functions that you can select for your preference. 1920 x 1080 Input Select GameVisual Variable OD ASUS TUF GAMING Scenery Mode 180Hz HDMI-1 VG279Q3A Variable OD Gaming Variable Refresh Rate ELMB... - Page 20 Brightness: The adjusting range is from 0 to 100. • Contrast: The adjusting range is from 0 to 100. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100. •...
- Page 21 Color Select the image color you like from this function. 1920 x 1080 Input Select GameVisual Variable OD ASUS TUF GAMING Scenery Mode 180Hz HDMI-1 VG279Q3A Color Temp. Gaming Saturation Skin Tone Image Color Input Select MyFavorite Back Enter Exit •...
- Page 22 OD”, “Brightness”, “Mute”, “Shadow Boost”, “Contrast”, “Input Select”, “Blue Light Filter”, “Color Temp.”, “Volume”, ”Customized Setting-1”, “Customized Setting-2” and set as shortcut key. • Customized Setting : You can do your setting according to your favorite. ASUS LCD Monitor VG279Q3A Series...
- Page 23 System Setup Adjust the system configuration. 1920 x 1080 Input Select GameVisual Variable OD ASUS TUF GAMING Scenery Mode 180Hz HDMI-1 VG279Q3A Language System Setup Sound Power Setting Power Indicator Power Key Lock Key Lock OSD Setup Information Back Enter Exit 1920 x 1080...
-
Page 24: Specifications
615 x 369 x 60 mm (WxHxD) (For VESA Wall Mount) Box Dimension (WxHxD) 680 x 450 x 171 mm Net Weight (Esti.) 4.6 kg Net Weight (Esti. w/o stand) 3.8 kg Gross Weight (Esti.) 6.9 kg Operational temperature 0~40° ASUS LCD Monitor VG279Q3A Series... -
Page 25: Troubleshooting (Faq)
Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. •... -
Page 26: Supported Timing List
Detail timing 1920x1080-60Hz Detail timing 1920x1080-144Hz Detail timing 1920x1080-165Hz Detail timing 1920x1080-180Hz Video timing 640x480P-60Hz Video timing 720x480P-60Hz Video timing 720x576P-50Hz Video timing 720(1440)x480I-60Hz Video timing 720(1440)x576I-50Hz Video timing 1280x720P-50Hz Video timing 1280x720P-60Hz Video timing 1440x480P-60Hz ASUS LCD Monitor VG279Q3A Series... - Page 27 Video timing 1440x576P-50Hz Video timing 1920x1080I-50Hz Video timing 1920x1080I-60Hz Video timing 1920x1080P-50Hz Video timing 1920x1080P-60Hz Video timing 1920x1080P-100Hz Video timing 1920x1080P-120Hz OSD Aspect Control 4:3 Timing Resolution HDMI PC Timing 640x480-60Hz PC Timing 640x480-67Hz PC Timing 640x480-72Hz PC Timing 640x480-75Hz PC Timing 720x400-70Hz PC Timing...
- Page 28 Video timing 720(1440)x576I-50Hz Video timing 1280x720P-50Hz Video timing 1280x720P-60Hz Video timing 1440x480P-60Hz Video timing 1440x576P-50Hz Video timing 1920x1080I-50Hz Video timing 1920x1080I-60Hz Video timing 1920x1080P-50Hz Video timing 1920x1080P-60Hz Video timing 1920x1080P-100Hz Video timing 1920x1080P-120Hz ASUS LCD Monitor VG279Q3A Series 3-11...
