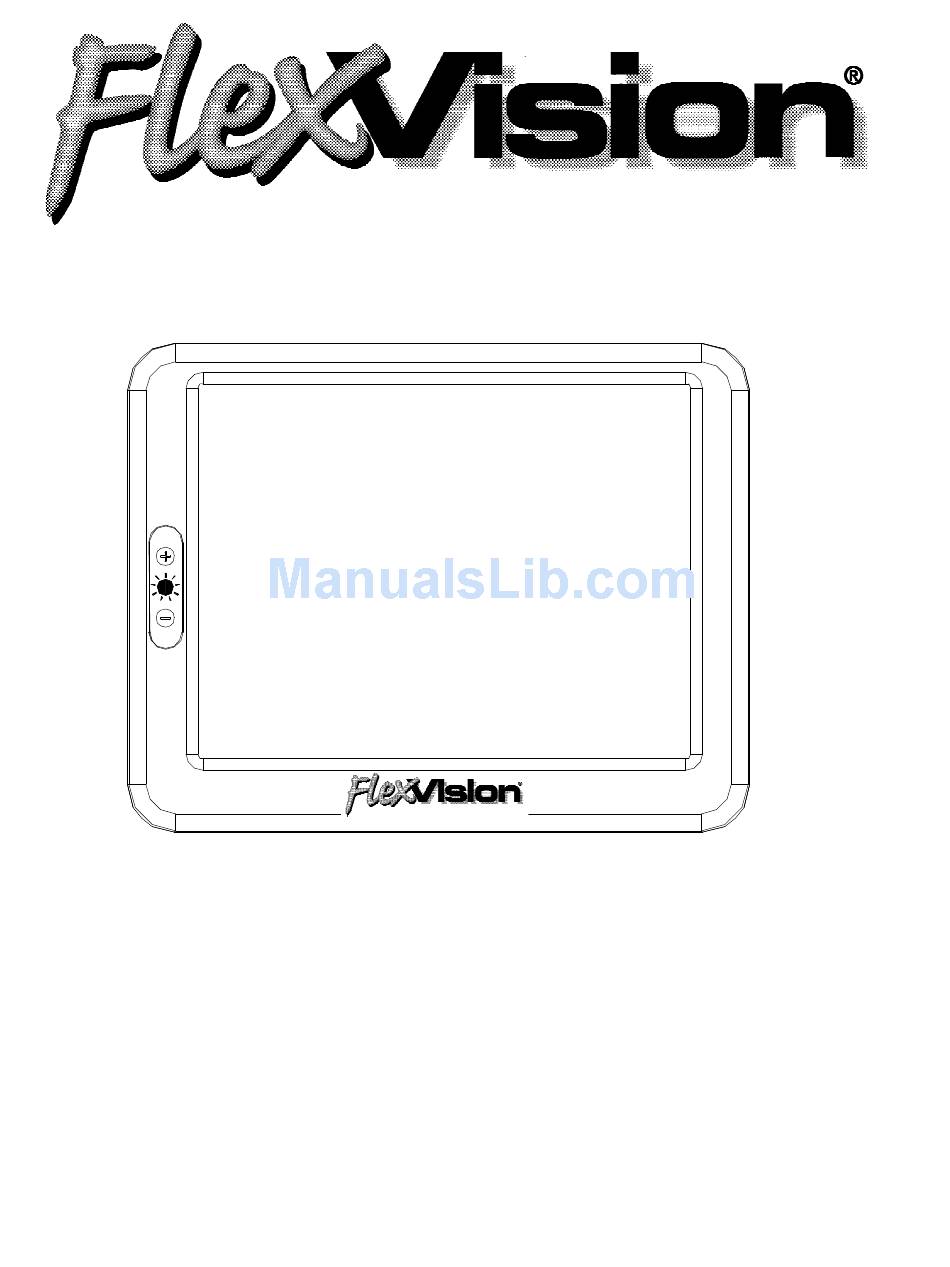

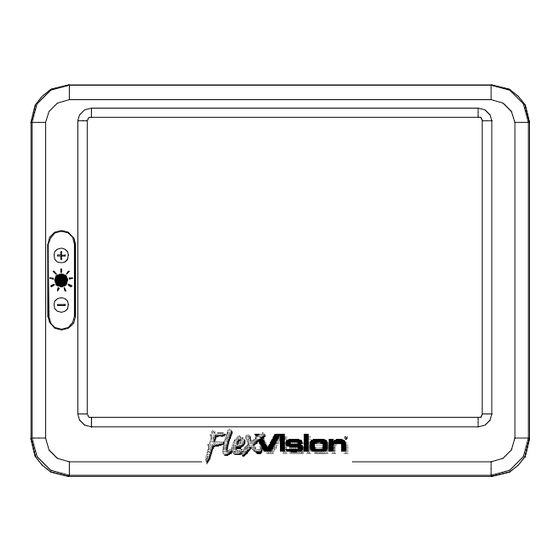

- Page 1 LCM641CS 6.4” Active Matrix Color TFT-LCD Video Monitor Audiovox Specialized Applications, LLC 23319 Cooper Dr. Elkhart, IN 46514 (219) 264-3135 P/N 8033655 Rev.D Nov. 00...
- Page 2 Features Wide Viewing Angle High Resolution (640 x 480) High Brightness (300 nit) Slim Line Housing (1” Deep) Flat Rear Housing for Easy Surface Mounting Automatic Video Signal Sensing Turn-On Circuit Designed and Tested for Automotive use...
-
Page 3: Physical Features
Physical Features Viewing Area 5.22" Brightness Control Switch 6.66" Front View Power/Video Connector Recess LCM-641-CS Power/Video 000001 QC'd: Harness Cable Recess Mounting Holes Typ. (#10 Screw) Rear... -
Page 4: Package Contents
Package Contents Quantity 6.4” TFT LCD Panel Power Connection Harness Power/Video Harness #10 – 5/16” Mounting Screw... -
Page 5: Electrical Connections
Electrical Connections Power Pigtail Ground +12V VCP Model # AVP7000 Optional Video Accessories (Available Separately) Connect to Video Source Camera Model # AOC75 LCD Assembly (ISO View) Power/Video Harness Note: Mounting an on/off switch in line with the power line is not necessary. -
Page 6: Mounting Screw Length
Mounting Screw Length Mounting Surface Warning In situations where the included #10 x 5/16” mounting screws are too short, and other screws must be used to fasten the LCM640CS housing to a mounting surface or bracket, the following formula should be used to determine the proper screw length. - Page 7 Option #3 – Cell Phone Mount LCM-641-CS 000001 QC'd: 0.140 Typ.8 LCM640CS Assembly 1.33 1.47 #10 X 5/16" Screw Mounting Hole Detail (Qty. 4- Included) (Common Cell Phone/Screw Mount) (Rear of LCM641CS Housing) Multi- Axis Cell Phone Mount (Sold Separately)
- Page 8 Optional Accessories – (Available separately) AOC75 CCD Camera (Black and White) HI-FI STEREO AVP7000 12 Volt Automotive VCP Sunshield #10 x 5/16" Screws Sunshield (Provided) P/N 1080641 LCM640CS Assembly...
-
Page 9: Accessory List
$14.00 Unlike household electronics, all of our products have been specifically designed and tested for the mobile environment and are only available through ASA. To order any of these products, please contact Audiovox Specialized Applications at www.asaelectronics.com or 800-688-3135. *Prices subject to change... - Page 10 Notes ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...
-
Page 11: Specifications
Specifications Video Input System NTSC Power Input 12VDC; 850mA Current Draw Video Input 1 Volt Peak to Peak Composite Video; 75 Operating Temperature -10 C to +60 C Storage Temperature -30 C to +80 C Viewing Area 6.4” Diagonal Measurement Display Type Color TFT Active Matrix Resolution...
