Sony STR-K1900P Service Manual

SERVICE MANUAL
Ver 1.1 2004.10
• STR-K1900P is the tuner and the amplifier
section in HT-1900DP.
Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic" and the double-D symbol are trademarks
of Dolby Laboratories.
"DTS" and "DTS Digital Surround" are registered trademarks
of Digital Theater Systems, Inc.
Amplifier section
1)
Power Output
(6 ohms 1 kHz, THD 0.7%)
(6 ohms 100 Hz, THD
(6 ohms 1 kHz, THD 10%)
(6 ohms 100 Hz, THD
(6 ohms 1 kHz, THD 10%)
(6 ohms 100 Hz, THD 10%)
1) Measured under the following conditions:
Area code
CND, MX
E51
Sony Corporation
9-877-996-02
Audio Group
2004J16-1
Published by Sony Engineering Corporation
© 2004.10
STR-K1900P
SPECIFICATIONS
2)
FRONT : 60 W/ch
2)
CENTER : 60 W
2)
SURR : 60 W/ch
0.7%)
2)
SUB WOOFER : 60 W
2)
FRONT : 80 W/ch
2)
CENTER : 80 W
2)
SURR : 80 W/ch
10%)
2)
SUB WOOFER : 80 W
2)
FRONT : 70 W/ch
2)
CENTER : 70 W
2)
SURR : 70 W/ch
2)
SUB WOOFER : 70 W
Power requirements
120 V AC, 60 Hz
240 V AC, 50 Hz
2) Depending on the sound field settings and the
source, there may be no sound output.
Inputs (Analog)
DVD, VIDEO Sensitivity: 800 mV
Impedance: 50 kiloohms
Inputs (Digital)
Sensitivity: −
DVD (Coaxial)
Impedance: 75 ohms
Sensitivity: −
VIDEO (Optical)
Impedance: −
Reproduction frequency range:
28 − 20,000 Hz
Tone
±6 dB, 1 dB step
Gain levels
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate Frequency 10.7 MHz

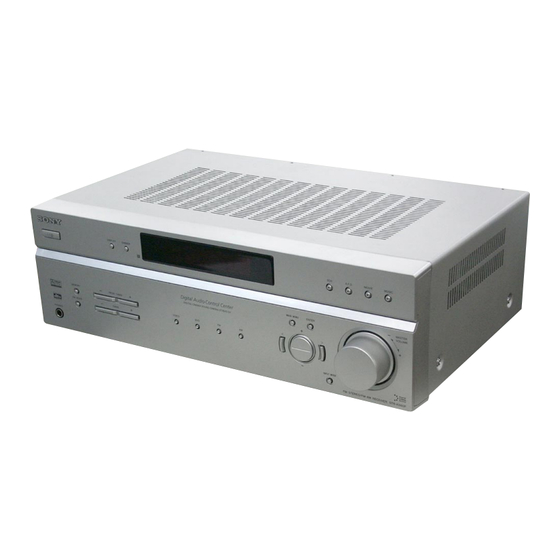

FM STEREO FM-AM RECEIVER
Canadian Model
E Model
— Continued on next page —
