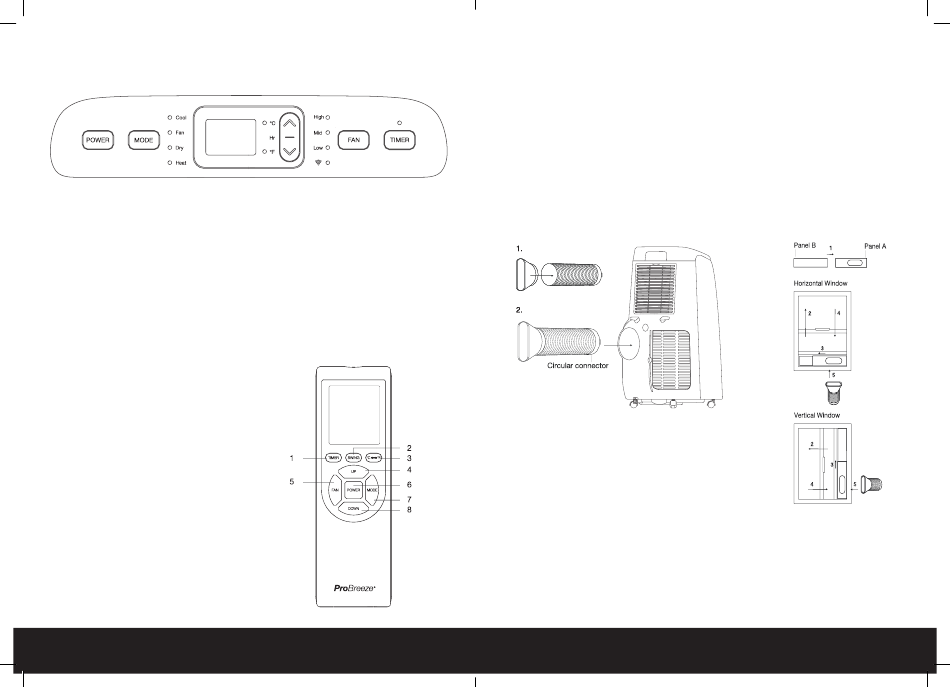

CONTROL PANEL

― ―
1. Buttons moving from left to right
• Power button
• Mode button
• Up button
• Down button
• Fan speed button
• Timer button
2. Indicator light symbols moving from
top to bottom and left to right
• Cooling mode indicator light
• Fan-only mode indicator light
• Dehumidifying mode indicator light
• Heating mode indicator light
• High fan speed indicator light
• Medium fan speed indicator light
• Low fan speed indicator light
• WiFi indicator light
• Timer indicator light
3. Digital display panel moving from top
to bottom
• Degrees celsius indicator light
• Degrees fahrenheit indicator light
10 of 24 | English

REMOTE CONTROL

― ―
1. Timer button
2. Swing button
3. Temperature unit change button
4. Up button
5. Fan speed button
6. Power button
7. Mode button
8. Down button
Note: Two AAA batteries included.

INSTALLATION

― ―
Prior to and after installation adhere to the below:
• When moving the appliance to the chosen location ensure it is kept in an upright position.
• Do not place or use the appliance, power cord, or any accessories in a bathroom, wet, or
damp place.
• Place the appliance on a flat and dry surface. Keep it at least 50cm away from surrounding
walls and/or objects.
• Leave the appliance in an upright position for at least two hours prior to first use.
Heat Exhaust Hose Installation
1. Insert the circular connector into the heat exhaust hose connector.
2. Rotate the circular connector counterclockwise to lock it into place.
Sliding Window Sealing Board Assembly Installation
1. Rotate the square connector counterclockwise to lock it into the
end of the heat exhaust hose.
2. Rotate the short connector counterclockwise to lock it into the
end of the heat exhaust hose.
Heat Exhaust Hose Installation
1. Insert panel B into panel A and adjust to the length or height of the window.
2. Open window and place the sealing board assembly into window.
3. Adjust to ensure an exact fit and secure with the provided screw.
4. Close window to lock everytwhing into place.
5. Attach the heat exhaust hose short connector to the elliptical hole.
