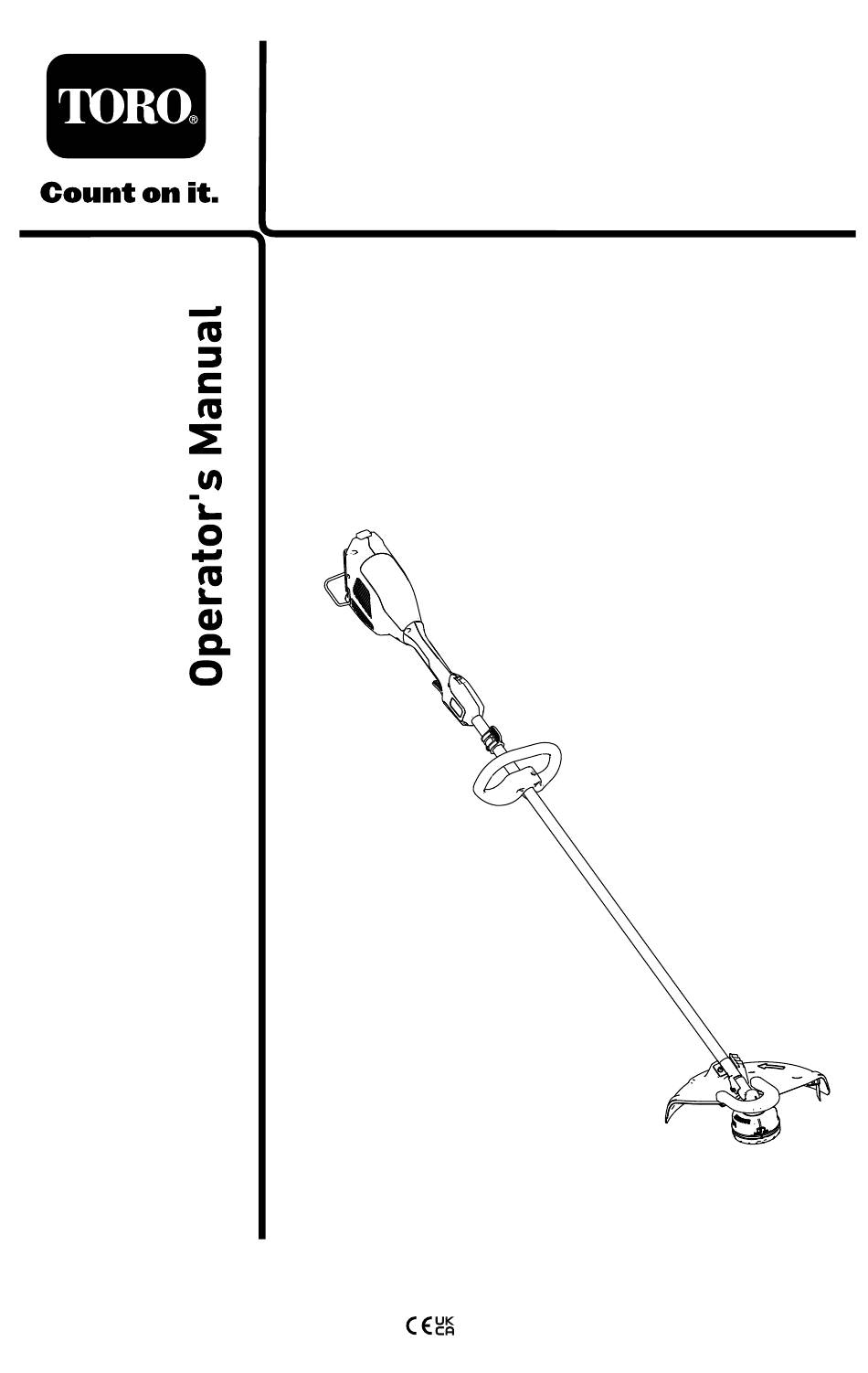

- Page 1 Form No. 3445-454 Rev B Revolution ® 60V String Trimmer Model No. 66210T—Serial No. 323000001 and Up *3445-454* Register at www.Toro.com. Original Instructions (EN)
- Page 2 You are responsible for operating the product properly and safely. Visit www.Toro.com for product safety and operation training materials, accessory information, help finding a dealer, or to register your product.
- Page 3 Whenever you need service, genuine the manufacturer parts, or additional information, contact an Authorized Service Dealer or the manufacturer Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers on the product.
-
Page 4: Safety Alert Symbol
Safety-Alert Symbol The safety-alert symbol (Figure 2) shown in this manual and on the machine identifies important safety messages that you must follow to prevent accidents. g000502 Figure 2 Safety-alert symbol The safety-alert symbol appears above information that alerts you to unsafe actions or situations and is followed by the word DANGER, WARNING, or CAUTION. - Page 5 Authorized Service Dealer to replace it. Charge the battery pack with only the battery charger specified by Toro. A charger suitable for 1 type of battery pack may create a risk of fire when used with another battery pack. Charge the battery pack in a well-ventilated area only.
- Page 6 Avoid dangerous environments—Do not use the tool in rain or in damp or wet locations. Use the proper tool for your application—Using the tool for purposes other an its intended use could prove dangerous to you and bystanders. Prevent unintentional starting—Ensure that the switch is in the O position before connecting to the battery pack and handling the tool.
- Page 7 CAUTION—A mistreated battery pack may present a risk of fire, explosion, or chemical burn. • Do not disassemble the battery pack. • Replace the battery pack with a genuine Flex-Force battery pack only; using another type of battery pack may cause a fire or risk of injury.
-
Page 8: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal145-2332 145-2332 1. Do not dispose improperly. - Page 9 decal139-8262 decal139-8263 139-8262 139-8263 1. Warning—read the Operator’s 1. Warning—keep 2. Thrown object Manual; wear eye protection; wear bystanders hazard—keep hearing protection; do not expose to away from the bystanders machine in all away. rain. directions.
-
Page 10: Loose Parts
Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Install the auxiliary Auxiliary handle assembly handle. Rear guard Front guard Install the guard. Socket-head screw Button-head screw – No parts required Install the harness. - Page 11 Important: The bolt may be wedged into the plastic of the handle; lightly tap the bottom of the bolt until it is free from the handle. Align the auxiliary handle with the lower handle bracket on the trimmer handle (B of Figure Slide the lower handle bracket into the slot on the auxiliary handle (B of...
-
Page 12: Installing The Guard
Installing the Guard Parts needed for this procedure: Rear guard Front guard Socket-head screw Button-head screw Procedure Align the guard so that the tab on the mount slides into the slot (A Figure Install and tighten the socket-head screw to secure the guard to the mount (B of Figure g524099... - Page 13 g399659 Figure 5 1. Front guard 3. Button-head screws 2. Rear guard...
-
Page 14: Installing The Harness
Installing the Harness No Parts Required Procedure Important: If you are using the string trimmer with a 6.0 Ah or greater battery pack installed, install the included shoulder harness. Do not use the shoulder harness if you are powering the string trimmer with the backpack and backpack tether;... - Page 15 The strap length is adjustable; slide the strap adjuster up to decrease the length of the strap, or down to increase the length of the strap (Figure If there you ever need to rapidly remove the harness, disconnect the quick-release buckle as follows: Press in on the sides of the buckle (A of Figure Allow the buckle to disconnect (B of...
-
Page 16: Product Overview
Product Overview g367069 Figure 8 1. Battery latch 5. Deflector shield and line cutoff blade 2. Lockout trigger 6. Line 3. Harness connection 7. Run trigger 4. Auxiliary handle 8. Rod guard... -
Page 17: Specifications
Store the tool, battery pack, and battery charger in an enclosed clean, dry area. Attachments/Accessories A selection of Toro approved attachments and accessories is available for use with the machine to enhance and expand its capabilities. Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories. -
Page 18: Operation
Operation Starting the Trimmer Ensure that the vents on the trimmer are clear of any dust and debris. Ensure that the rod guard is lowered and align the cavity in the battery pack with the tongue on the handle housing (Figure Push the battery pack into the handle until the battery locks into the latch... - Page 19 Note: Slide the two-speed switch to change the speed of the trimmer. g388183 Figure 10 1. Lockout trigger 3. Run trigger 2. Two-speed switch Shutting Off the Trimmer To shut off the trimmer, release both triggers. Whenever you are not using the trimmer or are transporting the trimmer to or from the work area, remove the battery pack.
- Page 20 Removing the Battery Pack from the Trimmer Press the battery latch button on the trimmer to release the battery pack, then slide the battery pack out of the trimmer (Figure 11). g388181 Figure 11 1. Battery latch...
- Page 21 Advancing the Line Using the Bump Feed Run the tool at full throttle. Tap the bump head on the ground to advance the line. The line advances each time the bump head is tapped. Note: Do not hold the bump head on the ground while running the trimmer.
-
Page 22: Advancing The Line Manually
Advancing the Line Manually Remove the battery pack from the trimmer, then push the bump head while pulling on the trimmer line to manually advance the line (Figure 12). If pushing the bump head does not advance the line it may be jammed. Remove the bump head cover by pushing in on the tabs on either side of the bump head, remove any debris or tangled line, then snap the bump head cover back into place... -
Page 23: Operating Tips
Operating Tips • Keep the trimmer tilted toward the area being cut; this is the best cutting area. • The string trimmer cuts when you move it from left to right; this helps prevent the trimmer from throwing debris at you. •... -
Page 24: Maintenance
Maintenance After each use of the trimmer, complete the following: Remove the battery from the trimmer. Wipe the trimmer clean with a damp cloth. Do not hose the trimmer down or submerge it in water. CAUTION The line cutoff blade on the deflector is sharp and can cut you. - Page 25 Insert 1 end of the line straight into the eyelet and push the line through until it comes out through the eyelet on the other side. g367291 Figure 15 Some parts not shown for clarity 1. Eyelet 3. Eyelet alignment mark 2.
- Page 26 Replacing the Trimmer Head Remove the battery pack from the trimmer. Align the hole in the cup plate with the hole in the trimmer gearcase (Figure 16). Insert the included metal rod through the cup plate and into the hole in the trimmer gearcase to secure the trimmer head (Figure 16).
- Page 27 With the metal rod securing the trimmer head, rotate the trimmer head clockwise to remove it from the threaded gearcase post (Figure 17). g378078 Figure 17 Some parts not shown for clarity To install the new trimmer head, rotate it counterclockwise onto the gearcase post while securing the cup plate using the metal rod.
-
Page 28: Lubricating The Gearbox
Lubricating the Gearbox Service Interval: Every 25 hours or monthly, whichever comes first Shut off the trimmer, remove the battery pack, and clean any debris from the trimmer head. Remove the front guard from the trimmer (Figure Set the trimmer so the gearbox is upright. Remove the plug from the side of the trimmer (Figure 17). -
Page 29: Troubleshooting
Storage Important: Store the tool, battery pack, and charger only in temperatures that are within the appropriate range; refer to Specifications (page 17). Important: If you are storing the battery pack for the off-season, charge it until 1 or 2 LED indicators turn green on the battery. Do not store a fully charged or fully depleted battery. - Page 30 Problem Possible Cause Corrective Action The tool does not run or 1. The battery is not fully 1. Remove and then does not run continuously. installed in the tool. replace the battery into the tool, making sure that it is fully installed and latched.
- Page 31 Problem Possible Cause Corrective Action The bump head does not 1. The trimmer is out of 1. Add more line to the advance the line. line. bump head. 2. The line is tangled in the 2. Remove the bump head bump head housing.
